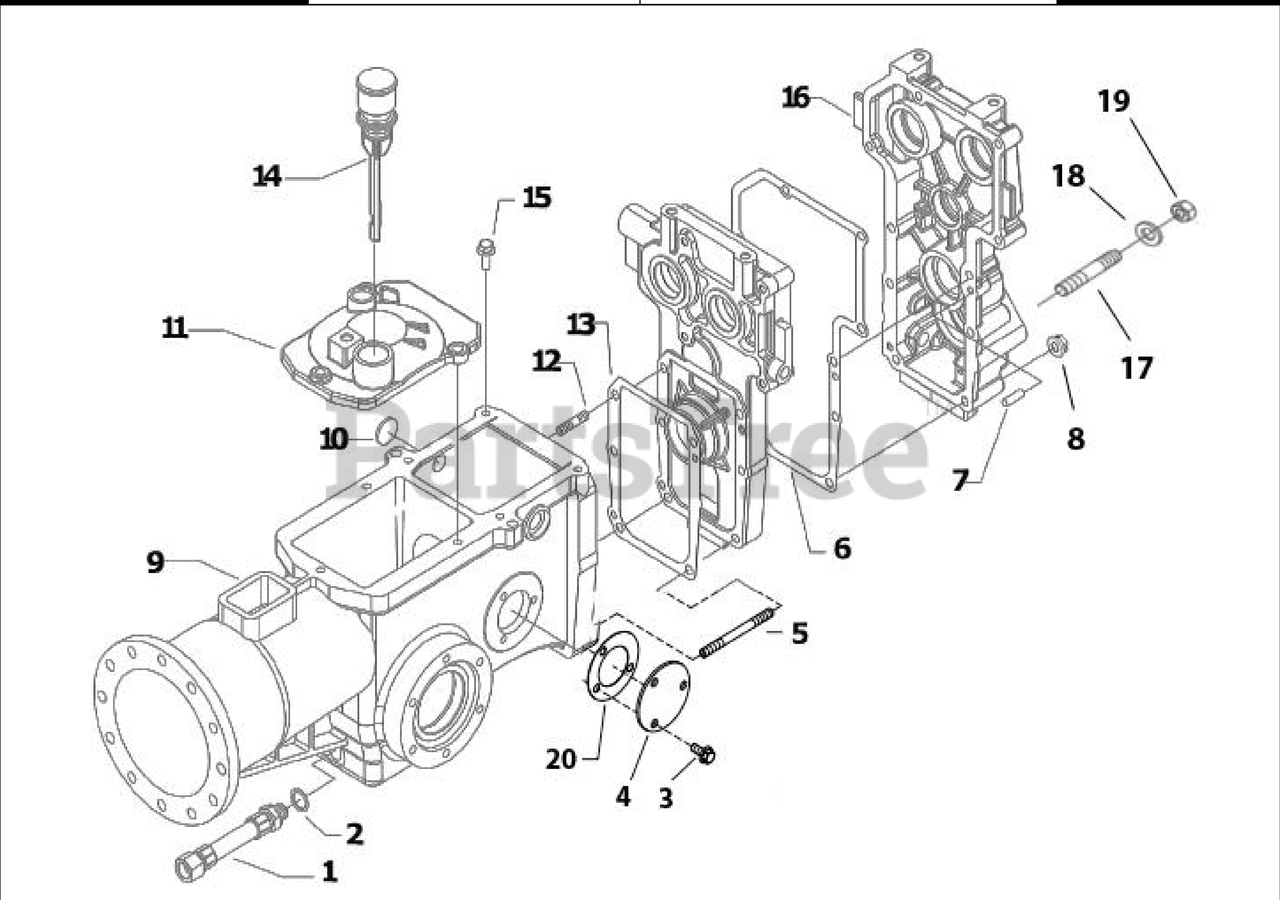

779 (779 PS) - BCS America Two-Wheeled Tractor, Power Safe Gearbox (SN: 1077280 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Gearbox (SN: 1077280 & Above) Parts Diagram

  • Title

1

590.56244

SUCTION HOSE

$

$

Not available

2

314.80184

COPPER WASHER 16.7x22/1.5

$

$

Not available

3

311.12079

SCREW VITE TE C/F M6X12 DIN 6921

$

$

Not available

4

BCS America 561.47520

COVER

$11.99

$

Usually ships in 5-8 days

0

5

313.12097

STUD BOLT M8X98X16X28 8G

$

$

Not available

6

580.C0148

FLANGE GASKET

$

$

Not available

7

BCS America 580.43053

CYLINDRICAL PLUG

$1.49

$

Usually ships in 5-8 days

0

8

BCS America 312.41084

SELFLOCK NUT M8 6S

$1.49

$

Usually ships in 5-8 days

0

9

531.56202

GEARBOX CASE

$

$

Not available

10

BCS America 300.40133

PLUG 22 DIN 470

$3.99

$

Usually ships in 5-8 days

0

11

BCS America 531.43875

GEARBOX HOUSING TOP COVER

$85.99

$

Usually ships in 5-8 days

0

12

313.12090

STUD BOLT M8X88X16X28 8G

$

$

Not available

13

580.56671

GASKET

$

$

Not available

14

592.56762

OIL CAP COMPLETE

$

$

Not available

15

BCS America 311.12170

SCREW TE C/F M8X20 DIN 6921

$1.99

$

Usually ships in 5-8 days

0

16

532.C1660

REAR END COVER

$

$

Not available

17

BCS America 313.12125

PTO STUD M12X1.25X12X64

$4.49

$

In Stock, only 2 left!

0

18

BCS America 314.21132

WASHER DOMED

$1.99

$

In Stock, only 1 left!

0

19

BCS America 312.21121

NUT M12X1.25 (Torque to 60 FT LBS)

$1.99

$

In Stock, only 2 left!

0

20

580.56447

GASKET

$

$

Not available
