779 (779 PS) - BCS America Two-Wheeled Tractor, Power Safe Control Rods (SN: 1077280 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

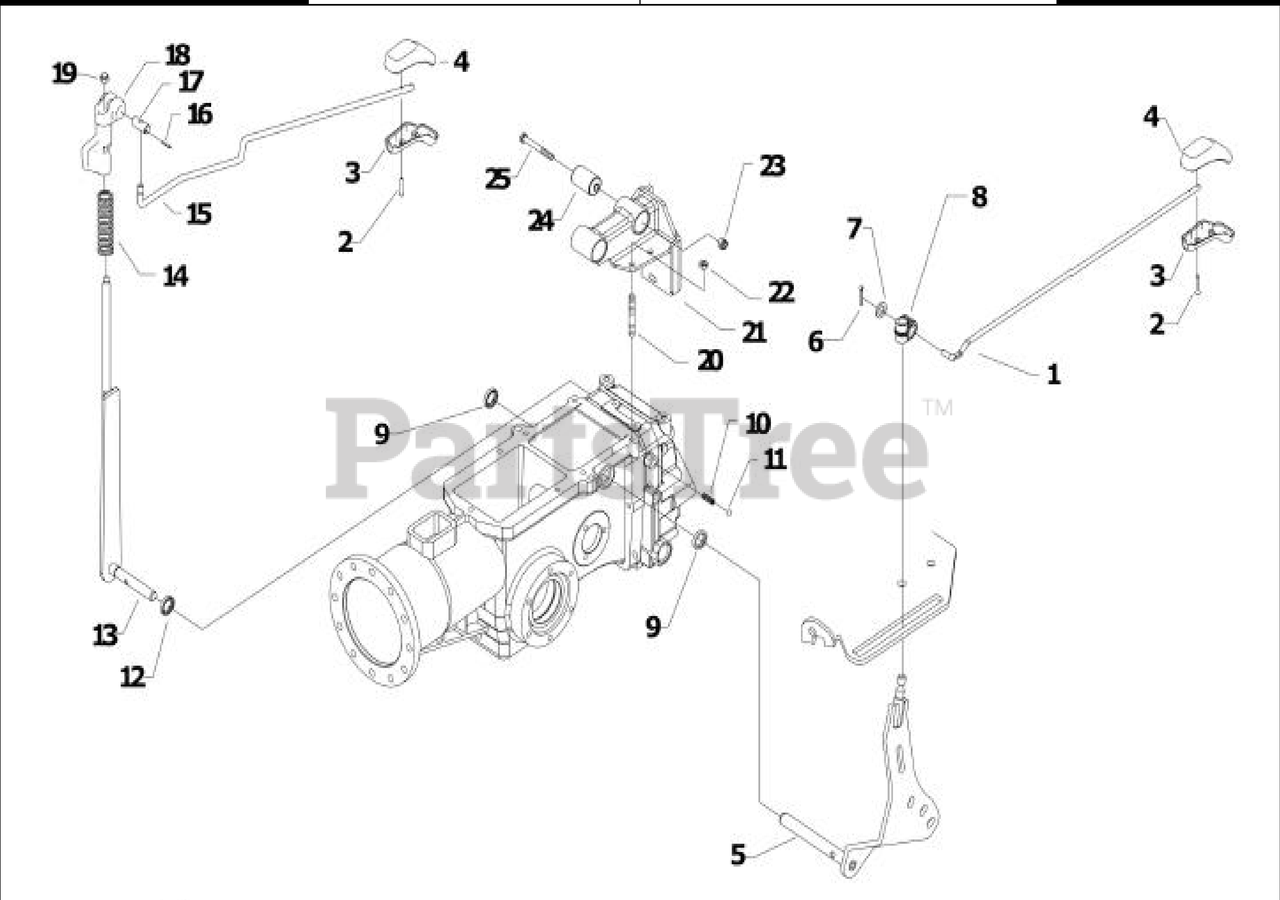

Control Rods (SN: 1077280 & Above) Parts Diagram

  • Title

1

561.C1678

HI / LO RANGE CONTROL ROD

$

$

Not available

2

BCS America 311.00451

SCREW 3,5X25

$0.99

$

In Stock, Qty 8

0

3

BCS America 551.57213

GRIP LOWER

$6.49

$

Usually ships in 5-8 days

0

4

BCS America 551.57212

GRIP UPPER

$6.49

$

In Stock, only 1 left!

0

5

590.C1683

LEVER HI / LO RANGE

$

$

Not available

6

BCS America 341.10028

SPLIT PIN A3X15 UNI 1336

$0.99

$

In Stock, Qty 5

0

7

BCS America 314.11104

WASHER 10,5x18

$0.99

$

In Stock, Qty 6

0

8

BCS America 552.42528

JOINT HI / LO RANGE

$11.99

$

In Stock, Qty 6

0

9

BCS America 382.11400

OIL SEAL 14X22X4

$7.99

$

In Stock, only 2 left!

0

10

BCS America 580.43176

SPRING

$2.49

$

In Stock, only 2 left!

0

11

BCS America 379.11532

BALL 15/32

$1.49

$

In Stock, only 4 left!

0

12

382.11496

OIL SEAL AS15X26X7 DIN 3760 NBR

$

$

Not available

13

590.C1658

LEVER PTO

$

$

Not available

14

580.C1673

SPRING

$

$

Not available

15

561.C1677

PTO CONTROL ROD

$

$

Not available

16

BCS America 342.11042

ROLL PIN

$1.49

$

In Stock, only 3 left!

0

17

561.C1676

HINGE

$

$

Not available

18

552.C1667

JOINT PTO

$

$

Not available

19

312.00125

SELFLOCK NUT M8

$

$

Not available

20

BCS America 313.12103

STUD BOLT M10X46X24X16

$6.49

$

Usually ships in 5-8 days

0

21

590.C1655

SUPPORT BRACKET

$

$

Not available

22

BCS America 312.11100

NUT M10

$1.49

$

In Stock, only 3 left!

0

23

BCS America 312.41120

SELF LOCK NUT M12

$1.99

$

In Stock, only 1 left!

0

24

BCS America 300.10120

SILENT BLOCK 12X40X58X66

$35.99

$

In Stock, only 1 left!

0

25

311.12701

SCREW TE M12X100 UNI 5737

$

$

Not available
