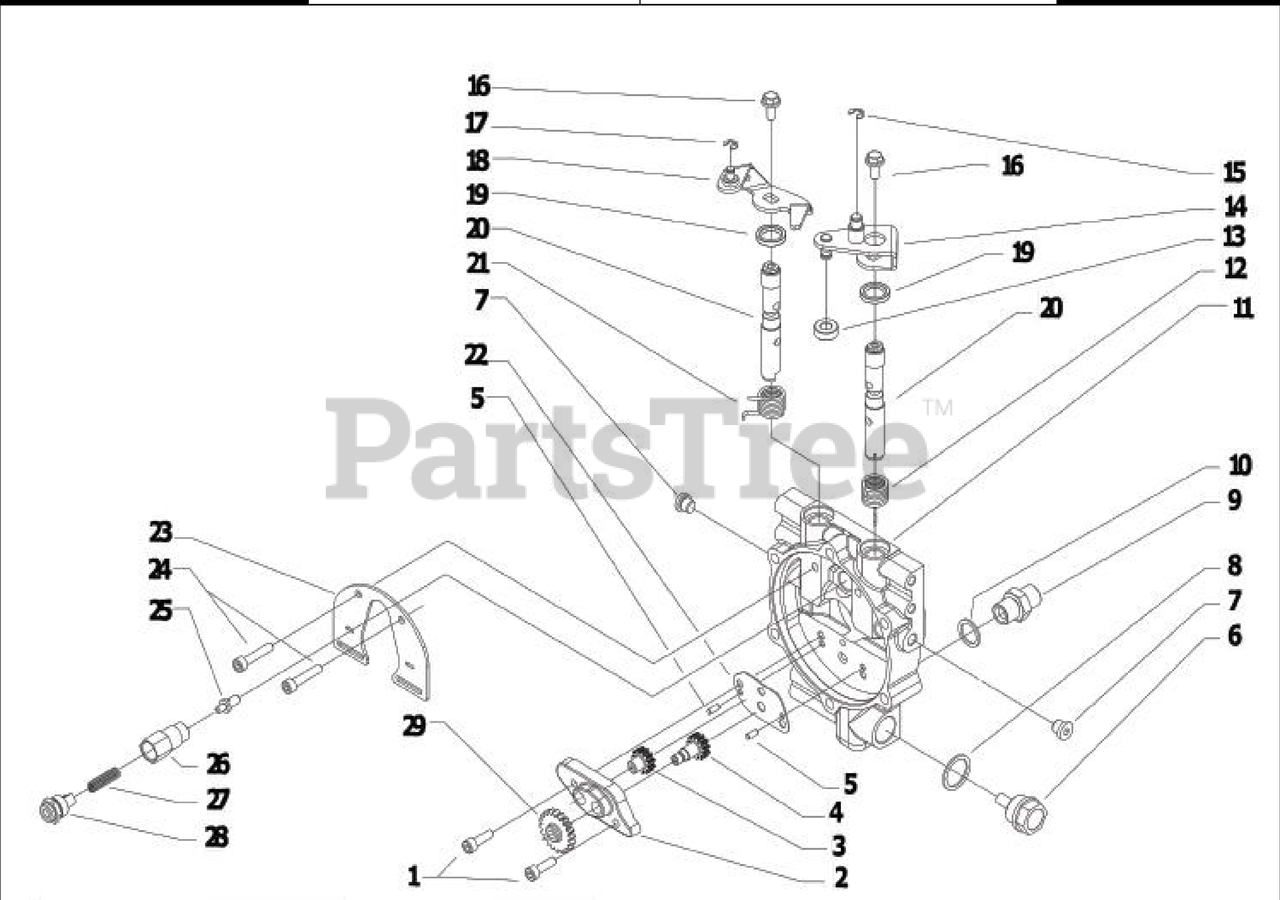

779 (779 PS) - BCS America Two-Wheeled Tractor, Power Safe Clutch Control (SN: 1077280 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Clutch Control (SN: 1077280 & Above) Parts Diagram

  • Title

1

BCS America 311.52063

SCREW TCEI M6X20 UNI 5931

$1.49

$

Usually ships in 5-8 days

0

2

563.56364

PUMP COVER

$

$

Not available

3

524.56371

PUMP GEAR

$

$

Not available

4

524.56372

PUMP GEAR

$

$

Not available

5

342.21040

CYLINDRICAL PLUG

$

$

Not available

6

581.70021

PLUG

$

$

Not available

7

580.C0041

PLUG

$

$

Not available

8

BCS America F0844273090

GASKET 22X28X1.5 CU 99.5

$1.99

$

Usually ships in 5-8 days

0

9

300.00197

NIPPLE

$

$

Not available

10

314.80194

COPPER WASHER 16.7x22/1.5

$

$

Not available

11

592.56745

FLANGE

$

$

Not available

12

580.56222

SPRING

$

$

Not available

13

552.56228

ROLLER

$

$

Not available

14

590.56225

CLUTCH LEVER

$

$

Not available

15

BCS America 352.11060

SNAP RING E 6 UNI 7434

$0.99

$

In Stock, Qty 10

0

16

311.12084

SCREW TE C/F M6X14 DIN 6921 8G

$

$

Not available

17

352.11050

SNAP RING E 5 UNI 7434

$

$

Not available

18

590.56798

LEVER STOP

$

$

Not available

19

BCS America 382.11400

OIL SEAL 14X22X4

$7.99

$

Usually ships in 5-8 days

0

20

524.56220

CONTROL VALVE

$

$

Not available

21

580.56221

SPRING

$

$

Not available

22

563.56747

PLATE PUMP RECEPTOR

$

$

Not available

23

561.56224

SHIELD

$

$

Not available

24

311.52060

SCREW TCEI M6X30 UNI 5931

$

$

Not available

25

564.56657

VALVE

$

$

Not available

26

561.56658

VALVE SEAT

$

$

Not available

27

580.56683

SPRING

$

$

Not available

28

563.56242

PLUG

$

$

Not available

29

524.56235

GEAR (LEFT HAND THREAD)

$

$

Not available
