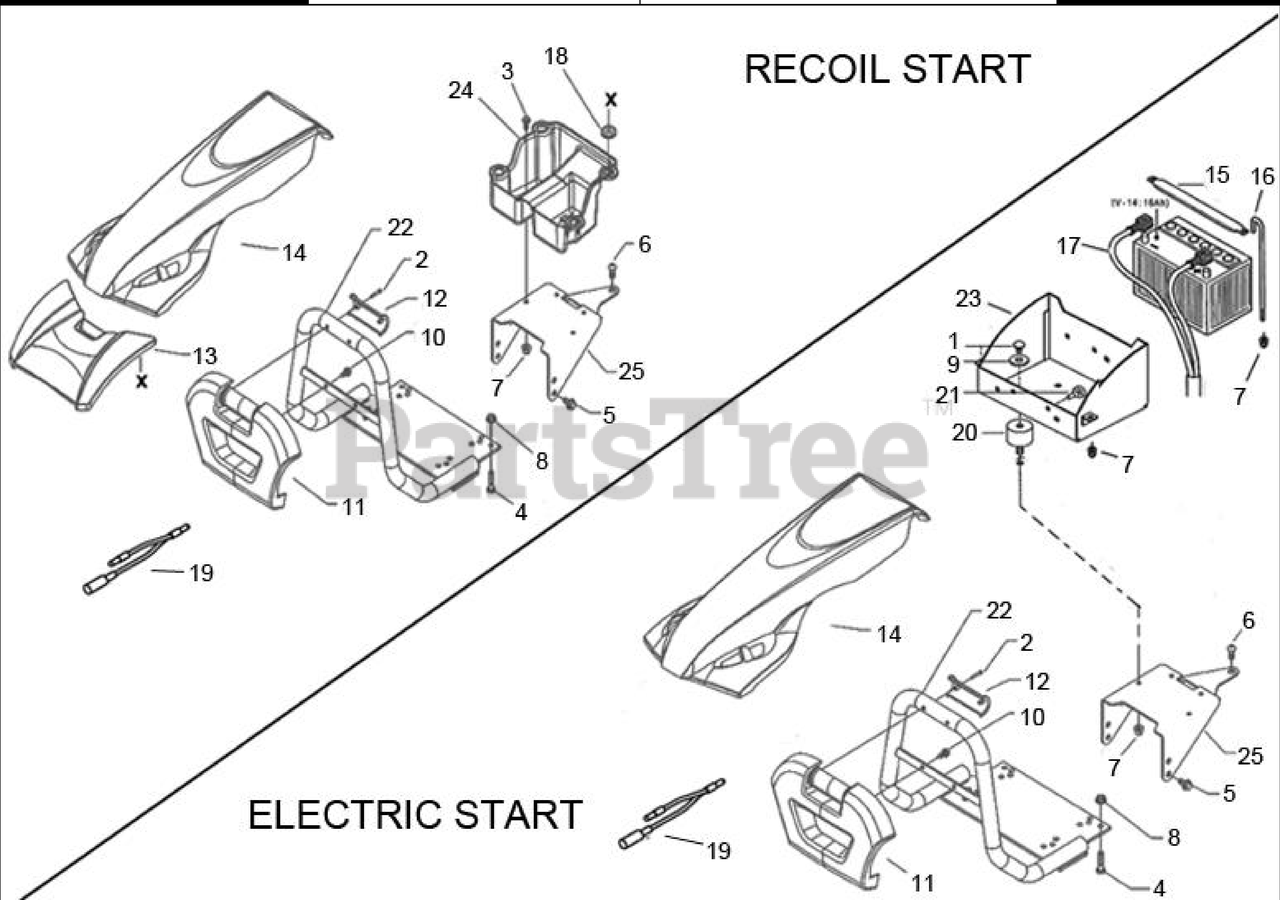

779 (779 PS) - BCS America Two-Wheeled Tractor, Power Safe Bumper & Engine Accessories (SN: 1077280 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Bumper & Engine Accessories (SN: 1077280 & Above) Parts Diagram

  • Title

1

BCS America 311.00201

CARRIAGE BOLT M6X24

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.00451

SCREW 3.5X25

$0.99

$

In Stock, Qty 8

0

3

311.12081

SCREW TE C/F M6X20 DIN 6921 8G

$

$

Not available

4

BCS America 311.12154

SCREW TE M8X40 UNI 5739 8G

$1.99

$

In Stock, only 4 left!

0

5

311.12171

SCREW TE C/F M8X16 DIN 6921

$

$

Not available

6

BCS America 311.21008

SCREW TBCEI M10X16 ISO 7380

$2.99

$

Usually ships in 5-8 days

0

7

312.41066

SELFLOCK M6 FL NY DIN 6926

$

$

Not available

8

BCS America 312.41084

SELFLOCK NUT M8 6S

$1.49

$

Usually ships in 5-8 days

0

9

BCS America 314.11090

WASHER FLAT M9X24

$1.49

$

Usually ships in 5-8 days

0

10

BCS America 315.10100

RIBBED SCREW 6.3X19 UNI 6950

$1.49

$

In Stock, only 2 left!

0

11

552.57521

FRONT BUMPER COVER

$

$

Not available

12

552.57522

CLAMP FOR FRONT BUMPER COVER

$

$

Not available

13

BCS America 552.57621

LOWER COVER (Not used on Electric Start Model)

$73.99

$

Usually ships in 5-8 days

0

14

BCS America 552.57623

STEERING COLUMN COVER

$150.99

$

In Stock, only 1 left!

0

15

BCS America 561.19937

BATTERY BRACKET

$32.99

$

Usually ships in 5-8 days

0

16

BCS America 561.57387

ROD, BATTERY

$16.99

$

Usually ships in 5-8 days

0

17

BCS America 580.47460

BATTERY CABLES (ELECTRIC START)

$106.99

$

Usually ships in 5-8 days

0

18

BCS America 580.56991

SUPPORT CAP

$4.99

$

In Stock, only 3 left!

0

19

BCS America 580.57385

WIRING HARNESS

$13.99

$

Usually ships in 5-8 days

0

20

BCS America 581.35225

SHOCK MOUNT

$24.99

$

Usually ships in 5-8 days

0

21

BCS America 581.57405

RUBBER CUSHION

$2.49

$

Usually ships in 5-8 days

0

22

590.53021

BUMPER GX390

$

$

Not available

23

BCS America 590.57390

BATTERY TRAY (ELECTRIC START)

$156.99

$

Usually ships in 5-8 days

0

24

552.C1001

SUPPORT TRAY FOR LOWER COVER

$

$

Not available

25

561.C1680

SUPPORT BRACKET

$

$

Not available
