77603 - Toro 60" TimeCutter MyRide Zero-Turn Mower (SN: 400000000 - 415399999) Fuel Pod Assembly Parts Diagram

60" TimeCutter MyRide Zero-Turn Mower

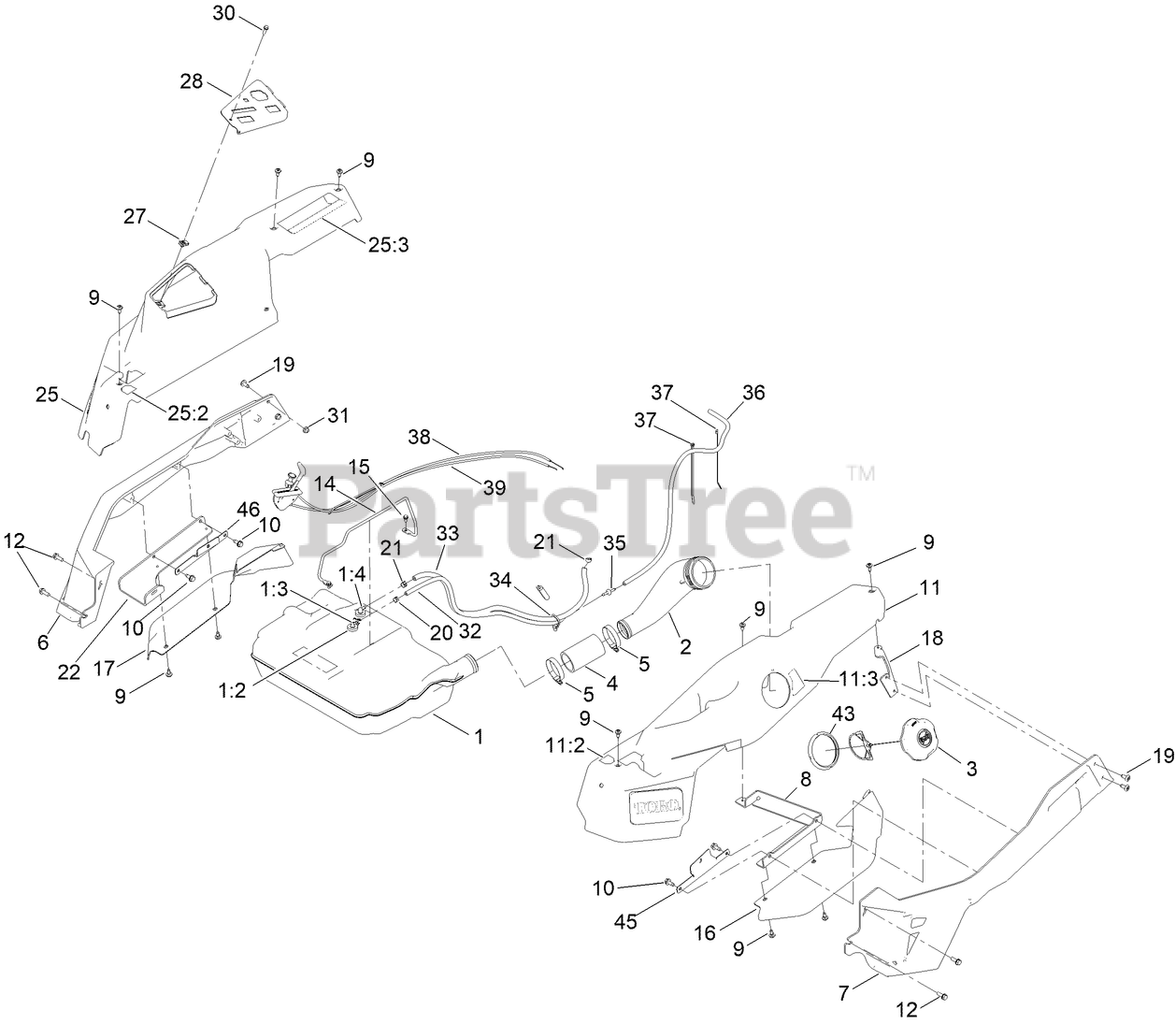

Fuel Pod Assembly Parts Diagram

  • Title

1

Toro 145-6304

TANK-FUEL ASM

$

$

Not available

1:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

1:3

Toro 144-5302

FITTING-ELBOW 90

$6.99

$

Usually ships in 3-6 days

0

1:4

Toro 147-2934

FITTING - PICKUP, FUEL

$4.49

$

Usually ships in 0 days

0

2

Toro 147-7657

NECK-FILLER, FUEL

$

$

Not available

3

Toro 137-4119

CAP-FUEL, RATCHETING

$28.99

$

In Stock, Qty 11

0

4

Toro 145-4698

HOSE-FILLER, FUEL

$32.99

$

Usually ships in 0 days

0

5

Toro 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

6

Toro 147-2973-01

CAST-TUBE, RH [RED]

$161.99

$

Usually ships in 0 days

0

7

Toro 147-2972-01

CAST-TUBE, LH [RED]

$161.99

$

Usually ships in 0 days

0

8

Toro 147-2974-03

MOUNT-POD BRACKET LH

$22.99

$

Usually ships in 0 days

0

9

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

10

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 147-8741

POD ASM - LH W/DECALS

$63.99

$

Usually ships in 0 days

0

11:2

Toro 139-2395

DECAL-CONTROL LEVER, LH

$1.99

$

Usually ships in 3-6 days

0

11:3

Toro 147-2399

DECAL-FUEL FILL

$2.99

$

Usually ships in 0 days

0

12

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

14

Toro 147-5176

ROD-HOLD DOWN

$13.99

$

Usually ships in 0 days

0

15

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

16

Toro 147-2978

FENDER-TIME CUTTER, LH

$18.99

$

Usually ships in 0 days

0

17

Toro 147-2979

FENDER-TIME CUTTER, RH

$18.99

$

Usually ships in 0 days

0

18

Toro 147-2976-03

BRACKET-REAR POD, LH

$9.49

$

Usually ships in 0 days

0

19

Toro 138-9753

SCREW

$1.49

$

In Stock, only 3 left!

0

20

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

21

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

22

Toro 147-5173-03

BRACKET-MR SPRING

$28.99

$

Usually ships in 0 days

0

25

Toro 147-8744

POD ASM - RH , MR W/DECALS

$63.99

$

Usually ships in 0 days

0

25:2

Toro 139-2394

DECAL-CONTROL LEVER, RH

$1.99

$

Usually ships in 3-6 days

0

25:3

Toro 147-7574

DECAL - MYRIDE

$8.49

$

Usually ships in 0 days

0

27

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

28

Toro 147-2990-03

PANEL-CONTROL

$15.99

$

Usually ships in 0 days

0

30

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

31

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 15

0

32

Toro 140-4956

HOSE-FUEL

$29.99

$

Usually ships in 3-6 days

0

33

Toro 109-0275

HOSE-FUEL

$14.99

$

In Stock, only 2 left!

0

34

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

35

Toro 144-1983

ADAPTER ORIFICE

$1.49

$

Usually ships in 3-6 days

0

36

Toro 108-6344

HOSE-LP

$17.99

$

Usually ships in 3-6 days

0

37

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

38

Toro 139-2403

CABLE-THROTTLE
(Superseded to 147-7695)

$36.99

$

In Stock, Qty 5

0

39

Toro 139-2402

CABLE-CHOKE

$23.99

$

In Stock, only 3 left!

0

43

Toro 147-7712

RING-RETAINING

$2.49

$

Usually ships in 0 days

0

45

Toro 161-4609-03

BRACKET-ALIGNMENT, POD LH

$9.49

$

Usually ships in 0 days

0

46

Toro 161-4611-03

BRACKET- ALIGNMENT, POD RH MR

$9.49

$

Usually ships in 3-6 days

0
