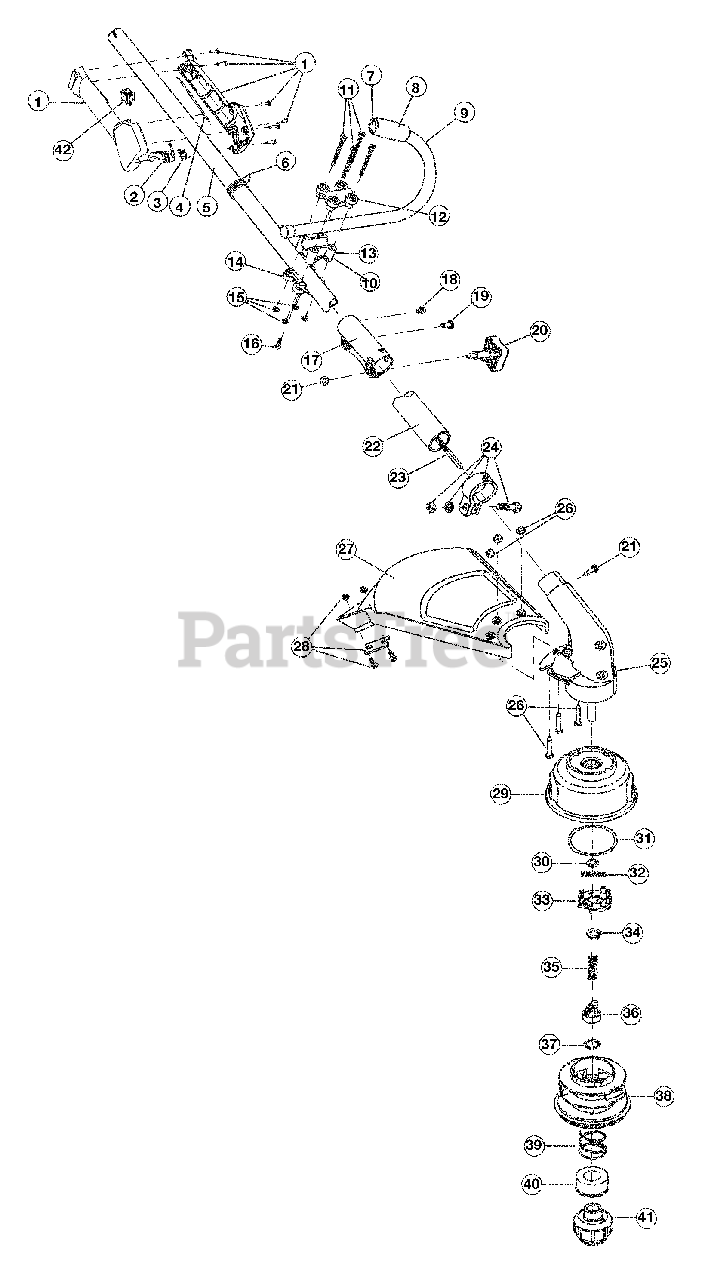

775r (41FD775A034) - Ryobi String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing & Trigger Assembly

Note: (includes 2, 3 & 42)

$21.99

$

In Stock, Qty 7

0

3

MTD 791-182803

Throttle Trigger
(Superseded to 753-04119)

$7.49

$

In Stock, Qty 18

0

2

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 753-04405

Throttle Cable Assembly

$7.99

$

In Stock, only 1 left!

0

5

MTD 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, only 4 left!

0

6

MTD 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

7

MTD 791-612021

Tube Closure
(Superseded to 1925)

$2.49

$

Usually ships in 3-6 days

0

8

MTD 791-612831

Grip

$12.99

$

Usually ships in 3-6 days

0

9

MTD 791-180687

J-Handle Assembly

Note: (includes 7 & 8)

$41.99

$

Usually ships in 3-6 days

0

10

MTD 791-683295

Handle Bracket Assembly

Note: (includes 10-16)

$45.99

$

Usually ships in 3-6 days

0

11

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

12

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

13

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

14

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

15

MTD 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

16

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

17

MTD 791-181616

Split Boom Coupler

Note: (includes 18-21)

$

$

Currently unavailable

18

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 7

0

19

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

20

MTD 791-181618

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

21

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

22

MTD 791-180340

Lower Drive Shaft Housing Assembly
(Superseded to 753-1218)

$105.99

$

Usually ships in 3-6 days

0

23

MTD 791-181166

Lower Flexible Drive Shaft

$28.99

$

Usually ships in 3-6 days

0

24

MTD 791-153597

Lower Clamp Assembly

Note: (includes 21)

$

$

Not available

25

MTD 791-181566

Gearbox Assembly

$

$

Not available

26

MTD 791-180547

Shield Mounting Hardware

$

$

Not available

27

MTD 791-180548

Shield Assembly

Note: (includes 28)

$

$

Not available

28

MTD 791-180553

Blade Assembly

$14.99

$

Usually ships in 3-6 days

0

29

MTD 791-181457

Outer Spool Assembly

Note: (includes 30)

$39.99

$

In Stock, only 1 left!

0

30

MTD 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

31

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, only 4 left!

0

32

MTD 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

33

MTD 753-04257

Slider

$7.49

$

In Stock, only 1 left!

0

34

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

35

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

36

MTD 791-181462

Plunger

$

$

Not available

37

MTD 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

38

MTD 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

39

MTD 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

40

MTD 791-181467

Foam Seal

$

$

Not available

41

MTD 791-181468B

Bump Knob Assembly

Note: (includes 39 & 40)

$

$

Not available

42

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

MTD 791-181472

Replacement Line, 0.80 Diameter
(Superseded to 791-181460B)

Note: (Eight - 10 ft lengths) Optional Accessory; Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 791-181460B

Reel and Line Assembly

Note: Optional Accessory; Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Strap Assembly

Note: Optional Accessory; Not Shown

$38.99

$

Usually ships in 3-6 days

0

MTD 791-147543

2-Cycle Oil

Note: Optional Accessory; Not Shown

$

$

Not available
