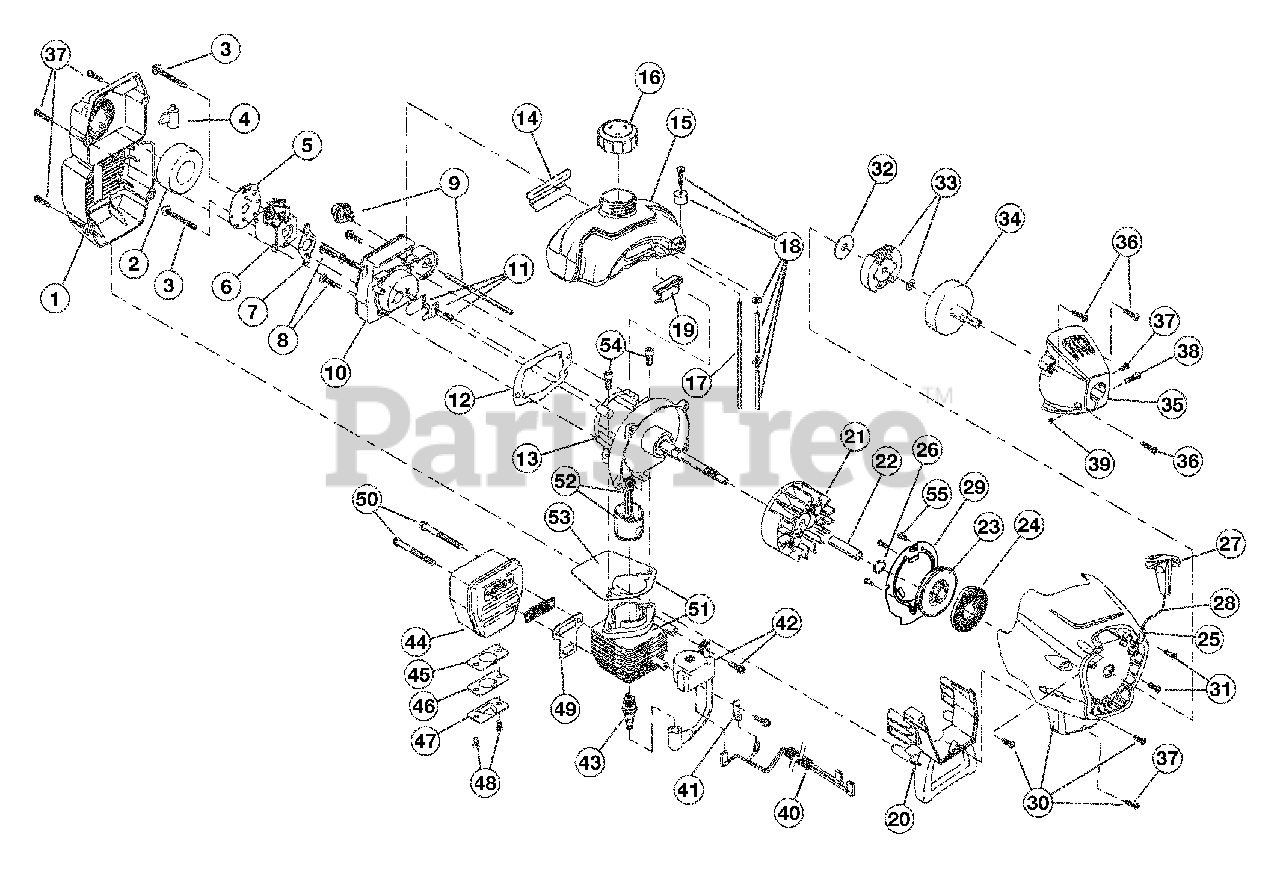

775r (41BD775A734) - Ryobi String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-1192

Air Cleaner/Muffler Cover Assembly includes 2 & 36)

$

$

Not available

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 753-04227

Choke Extension

$

$

Not available

5

MTD 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

6

MTD 753-04338

Carburetor Assembly (includes 7 & 18)

$96.99

$

In Stock, only 1 left!

0

7

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 18

0

10

MTD 753-1196

Carb Mount Assembly (includes 8, 11 & 12)

$

$

Not available

11

MTD 791-684451

Reed Assembly

$

$

Not available

12

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

13

MTD 753-04401

Crank Case Service Assembly includes 8)

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 753-04493

Fuel Tank Assembly (includes 16-18)
(Superseded to 753-04606)

$

$

Not available

16

MTD 791-182438

Fuel Cap Assembly
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 9

0

17

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

18

MTD 791-683398

Fuel Line Assembly

$

$

Not available

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

MTD 791-182064

Shroud Extension & Stand (includes 36)
(Superseded to 753-04611)

$

$

Not available

21

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

22

MTD 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

23

MTD 753-04459

Recoil Pulley
(Superseded to 753-04823)

$33.99

$

In Stock, Qty 8

0

24

MTD 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

25

MTD 753-1200

Rope Guide

$11.99

$

Usually ships in 3-6 days

0

26

MTD 791-181247

Pulley Retainer
(Superseded to 753-04288)

$10.99

$

Usually ships in 3-6 days

0

27

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

28

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

29

MTD 753-1201

Pressure Plate Assembly (includes 36)
(Superseded to 753-04417)

$

$

Not available

30

MTD 753-04495

Starter Housing Assembly (includes 23-29, 31 & 52)
(Superseded to 753-05049)

$

$

Not available

31

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

32

MTD 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

33

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 10

0

34

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

35

MTD 753-04497

Clutch Cover Assembly (includes 36-39)

$

$

Not available

36

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

37

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

38

MTD 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

39

MTD 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, only 2 left!

0

40

MTD 791-182798

Wire Leads and Sleeve

$

$

Not available

41

MTD 791-611063

Ground Tab

$

$

Not available

42

MTD 753-04336

Module Assembly

$107.99

$

Usually ships in 3-6 days

0

43

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

44

MTD 753-04110

Muffler Assembly (includes 45-50)

$

$

Not available

45

MTD 753-04312

Spark Arrestor Screen
(Superseded to 797-00006)

$

$

Not available

46

MTD 753-04313

Spark Arrestor Plate
(Superseded to 753-04110)

$

$

Not available

47

MTD 753-04314

Spark Arrestor Hood
(Superseded to 753-04110)

$

$

Not available

48

MTD 753-04315

Spark Arrestor Screw
(Superseded to 753-04110)

$

$

Not available

49

MTD 791-182065

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 1 left!

0

50

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

51

MTD 753-04323

Cylinder Assembly (includes 53 & 54)
(Superseded to 753-04814)

$83.99

$

In Stock, only 1 left!

0

52

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

53

MTD 753-1197

Cylinder Gasket

$

$

Not available

54

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

55

MTD 753-1202

Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

MTD 791-180090

O.E.M. Carburetor Repair Kit Not Shown

$60.99

$

Usually ships in 3-6 days

0

MTD 791-180091

Gasket Diaphragm Repair Kit Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring Set Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04404

Short Block Assembly (includes 13, 43, & 51-52); Not Shown
(Superseded to 753-04812)

$208.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs Not Shown

$11.99

$

Usually ships in 3-6 days

0
