77401 - Toro 42" Timecutter Zero-Turn Mower (SN: 400000000 - 412999999) Engine and Muffler Assembly Parts Diagram
42" Timecutter Zero-Turn Mower

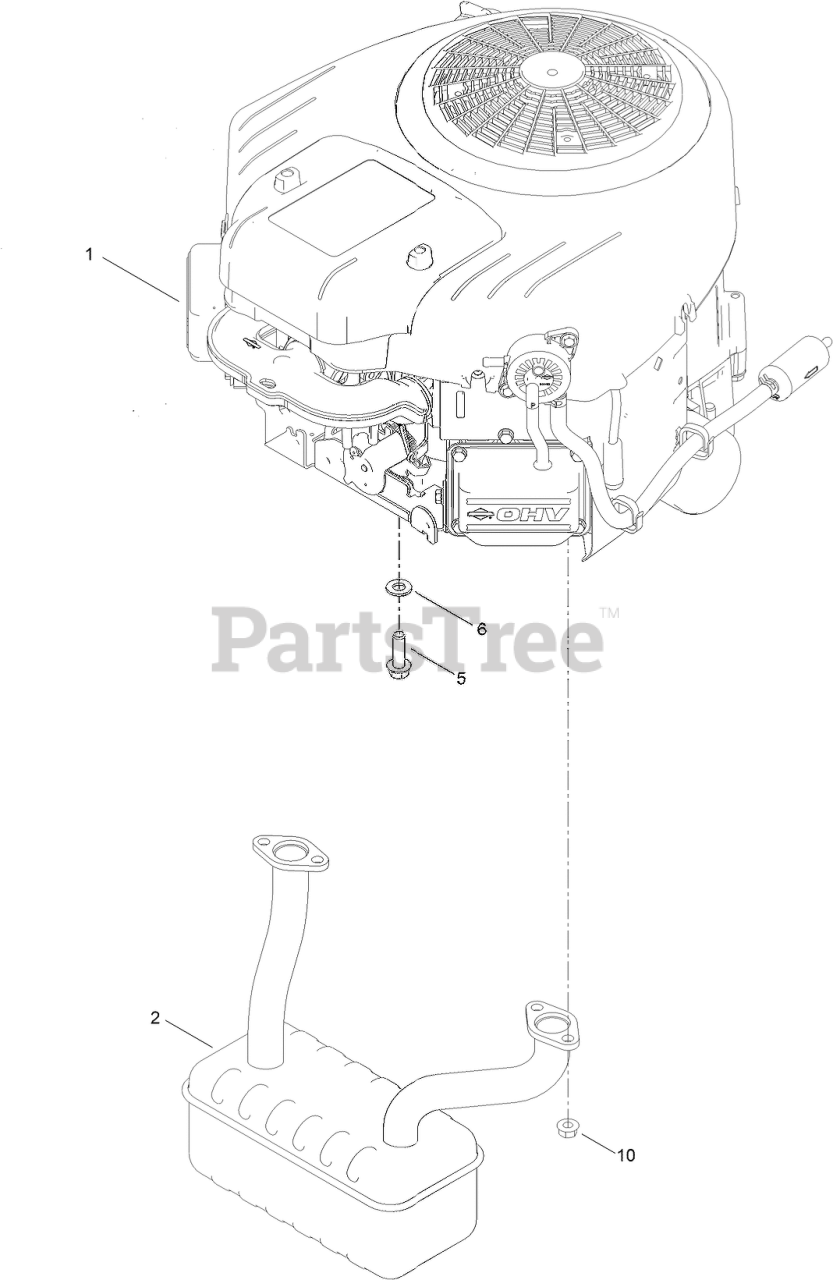

Engine and Muffler Assembly Parts Diagram
1
ENGINE - BS EXI
Note: Not serviced separately
$
$
Not available
1
ENGINE - BS EXI
Note: This is a Briggs & Stratton part. Please use the Briggs & Stratton catalog.
$
$
Not available
$12.99
$
Usually ships in 0 days
Toro 145-6318
MUFFLER
$120.99
$
Usually ships in 3-6 days
Toro 32144-109
SCREW-THD
$4.99
$
In Stock, Qty 7
Toro 3256-24
WASHER-FLAT
$0.99
$
In Stock, Qty 20+
Toro 33004-00
NUT-HF
$0.99
$
In Stock, Qty 11
