77401 - Toro 42" Timecutter Zero-Turn Mower (SN: 400000000 - 412999999) 42 Inch Deck Assembly Parts Diagram

42" Timecutter Zero-Turn Mower

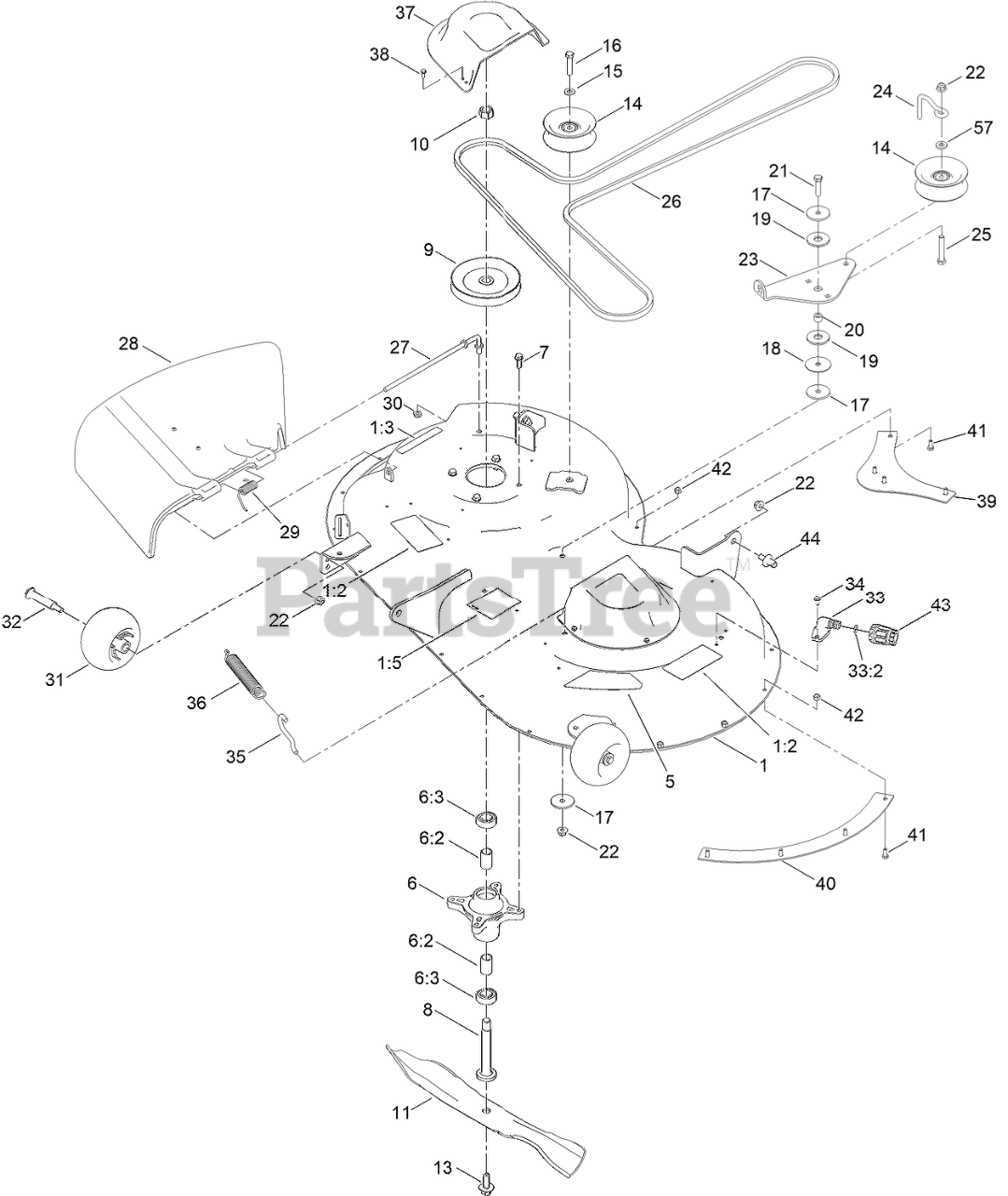

42 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 138-9761

42 INCH DECK AND DECAL ASM

$681.99

$

Usually ships in 3-6 days

0

1:2

Toro 132-0872

DECAL-DANGER, DECK

$2.99

$

In Stock, Qty 12

0

1:3

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, only 1 left!

0

1:5

Toro 105-7015

DECAL-ROUTING, BELT

$5.49

$

In Stock, Qty 15

0

5

Toro 117-1222

DECAL

$9.99

$

In Stock, only 4 left!

0

6

Toro 139-3214

SPINDLE ASM

$78.99

$

Usually ships in 3-6 days

0

6:2

Toro 120-7935

SPACER

$2.99

$

In Stock, Qty 9

0

6:3

Toro 138-9770

BEARING-BALL

$7.99

$

In Stock, only 4 left!

0

7

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

8

Toro 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 15

0

9

Toro 139-2433

Pulley

$37.99

$

In Stock, Qty 20+

0

10

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

11

Toro 137-1999-03

BLADE-21.6 IN

$26.99

$

In Stock, Qty 10

0

13

Toro 145-0411

BOLT-BLADE, SEMS

$3.49

$

In Stock, only 3 left!

0

14

Toro 132-9420

PULLEY-IDLER, FLAT

$34.99

$

In Stock, Qty 20+

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

16

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 63-7400

WASHER-REBOUND

$2.99

$

In Stock, Qty 5

0

18

Toro 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

20

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 5

0

21

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 138-7262

ARM-IDLER

$18.99

$

In Stock, only 1 left!

0

24

Toro 138-7270

BELT GUIDE - IDLER

$2.99

$

In Stock, Qty 5

0

25

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 147-2924

V-BELT
(Superseded to 119-8819)

$54.99

$

Usually ships in 3-6 days

0

27

Toro 137-2019

ROD-PIVOT

$12.99

$

In Stock, only 1 left!

0

28

Toro 137-7046

DEFLECTOR

$77.99

$

In Stock, Qty 20+

0

29

Toro 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 9

0

30

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

31

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

32

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

33

Toro 133-9289

FITTING-WASHOUT

$6.49

$

In Stock, Qty 5

0

33:2

Toro 133-9290

O-RING

$1.49

$

In Stock, Qty 20+

0

34

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

35

Toro 138-7267

HOOK-RETURN SPRING

$2.99

$

In Stock, Qty 8

0

36

Toro 138-7265

SPRING-EXTENSION

$7.99

$

In Stock, only 1 left!

0

37

Toro 108-7889

COVER-BELT

$34.99

$

In Stock, only 2 left!

0

38

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

39

Toro 137-2036-03

BAFFLE-BLOWOUT, REAR

$18.99

$

In Stock, only 1 left!

0

40

Toro 137-2037-03

BAFFLE-BLOWOUT, SIDE

$11.99

$

In Stock, only 1 left!

0

41

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

42

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

43

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

44

Toro 139-5871

PIN-DECK

$2.99

$

In Stock, only 3 left!

0

57

Toro 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, Qty 9

0
