77290 (2000) - Toro 52" Z Master MyRide Zero-Turn Mower (SN: 410200000 - 999999999) Frame Assembly Parts Diagram

52" Z Master MyRide Zero-Turn Mower

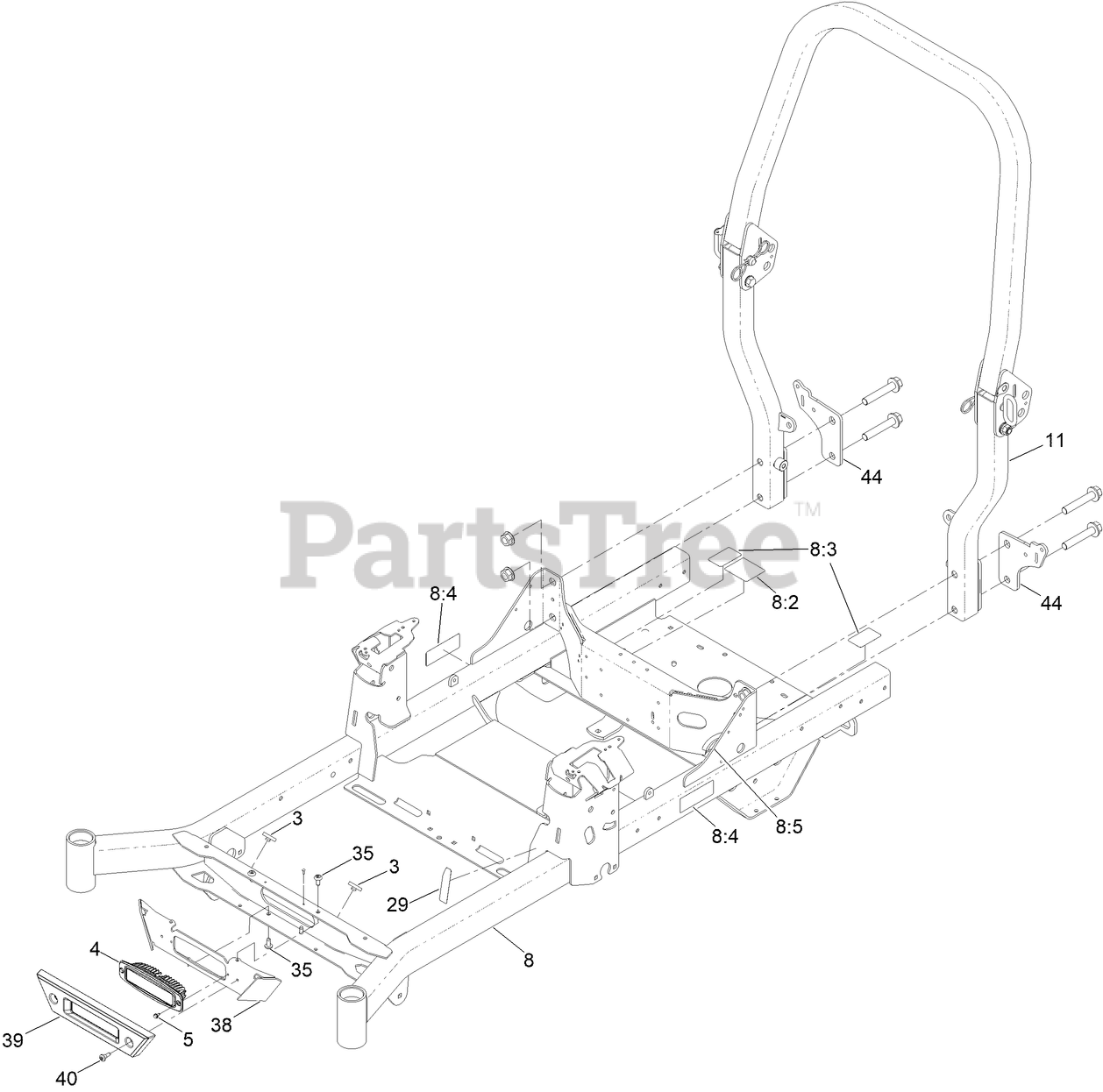

Frame Assembly Parts Diagram

  • Title

3

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 14

0

4

Toro 139-8089

MOUNT-FLUSH, LIGHT

$104.99

$

Usually ships in 3-6 days

0

5

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

8

Toro 144-1844

FRAME-48/52, MR

$1644.99

$

Usually ships in 0 days

0

8:2

Toro 109-6014

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 4 left!

0

8:3

Toro 116-8588

DECAL-RELEASE, DRIVE

$2.99

$

Usually ships in 3-6 days

0

8:4

Toro 126-4363

DECAL-WARNING

$18.99

$

Usually ships in 3-6 days

0

8:5

Toro 127-6618

STRIP-SEAL

$6.49

$

Usually ships in 3-6 days

0

11

Toro 144-1849

ASM-ROPS, MR

$633.99

$

Usually ships in 3-6 days

0

29

Toro 145-3668

DECAL-FILL, FUEL

$3.49

$

Usually ships in 3-6 days

0

35

Toro 138-9753

SCREW

$1.49

$

In Stock, only 3 left!

0

38

Toro 144-2628-01

BRACKET-LIGHT [RED]

$41.99

$

Usually ships in 3-6 days

0

39

Toro 144-2603

BUMPER-FRONT

$28.99

$

Usually ships in 3-6 days

0

40

Toro 135-2015

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0

44

Toro 126-9487-03

BRACKET

$

$

Currently unavailable
