77288 (2000) - Toro 60" Z Master Zero-Turn Mower (SN: 415230000 - 999999999) Fuel Assembly Parts Diagram

60" Z Master Zero-Turn Mower

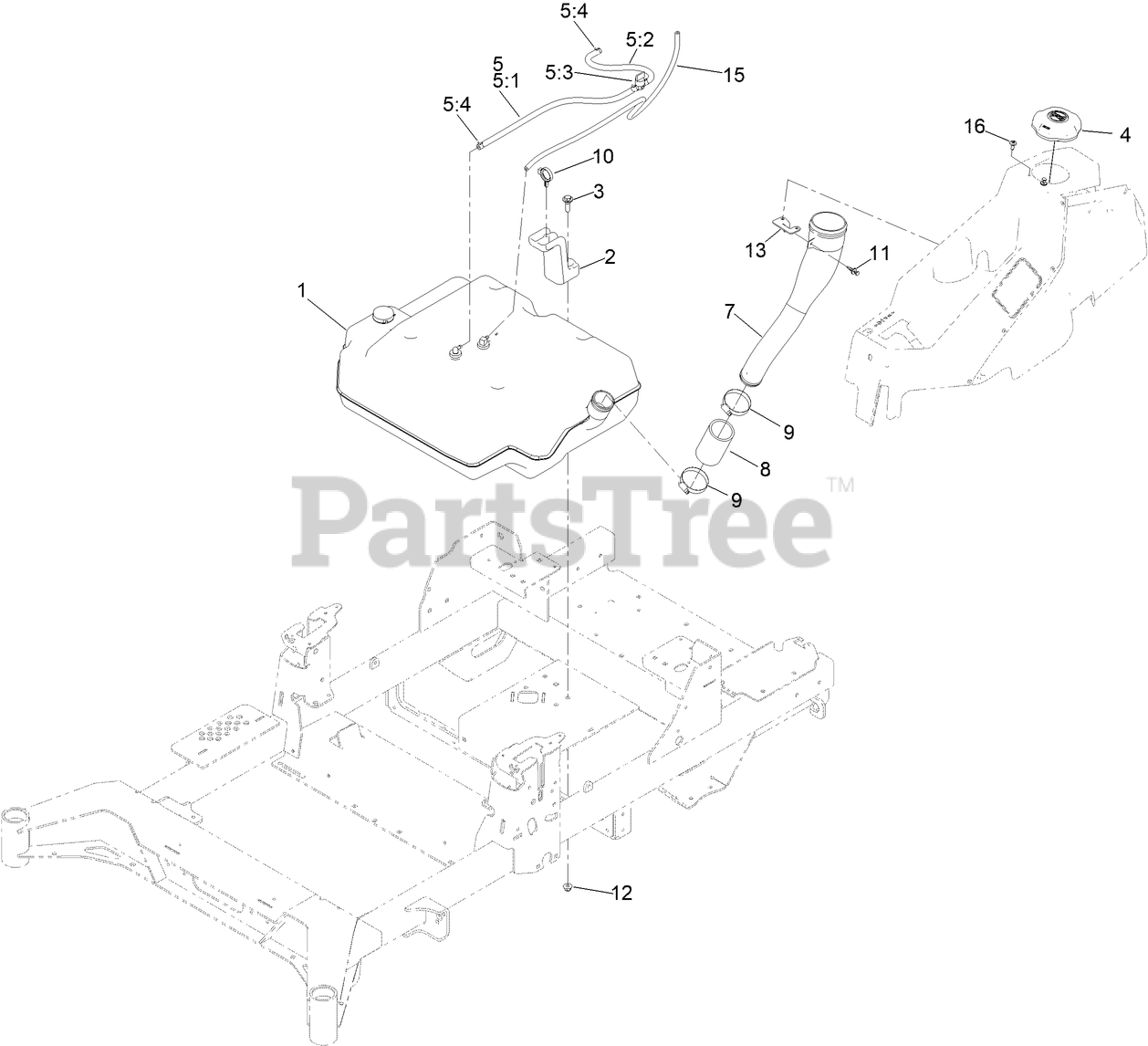

Fuel Assembly Parts Diagram

  • Title

1

Toro 147-2403

TANK ASM-FUEL

$

$

Not available

2

Toro 145-5778

RETAINER-TANK, REAR

$15.99

$

Usually ships in 0 days

0

3

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, only 4 left!

0

4

Toro 137-4119

CAP-FUEL, RATCHETING

$28.99

$

In Stock, Qty 11

0

5

Toro 147-4649

FUEL HOSE ASM

$

$

Not available

5:1

Toro 109-0301

HOSE-FUEL

$14.99

$

In Stock, only 1 left!

0

5:2

Toro 114-3766

HOSE-FUEL

$12.99

$

In Stock, Qty 8

0

5:3

Toro 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 7

0

5:4

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

7

Toro 147-7350

NECK-FILLER, FUEL

$

$

Not available

8

Toro 145-4698

HOSE-FILLER, FUEL

$32.99

$

Usually ships in 0 days

0

9

Toro 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

10

Toro 104-2490

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

11

Toro 125-9622

RIVET-BLIND

$

$

Currently unavailable

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 161-2890

BRACKET-MOUNTING, FILL

$5.99

$

Usually ships in 0 days

0

15

Toro 119-3517

HOSE-FUEL

$28.99

$

Usually ships in 3-6 days

0

16

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0
