77281 (2000) - Toro 48" Z Master Zero-Turn Mower (SN: 415203500 - 415260651) Seat Mount Assembly Parts Diagram

48" Z Master Zero-Turn Mower

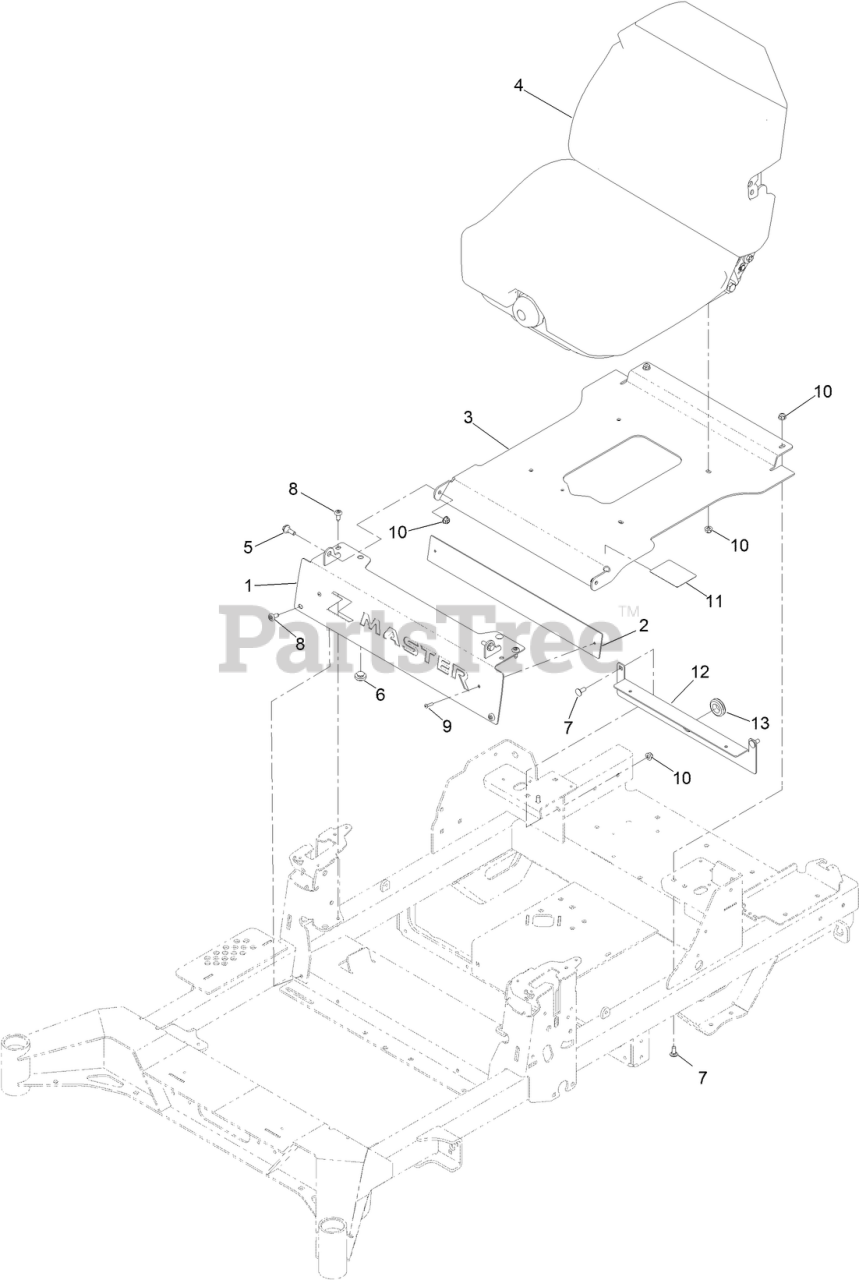

Seat Mount Assembly Parts Diagram

  • Title

1

Toro 145-7025-03

BADGE PLATE ASM [BLACK]

$77.99

$

Usually ships in 0 days

0

2

Toro 147-4954-01

PLATE-BACKER

$

$

Currently unavailable

3

Toro 147-7354-03

PAN-SEAT

$175.99

$

Usually ships in 0 days

0

4

Toro 147-2384

SEAT ASM-SUSPENSION

$1181.99

$

Usually ships in 0 days

0

5

Toro 116-2670

SCREW-SHOULDER

$7.99

$

In Stock, Qty 20+

0

6

Toro 135-0505

BUMPER-SEAT

$1.49

$

In Stock, Qty 6

0

7

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Toro 138-9753

SCREW

$1.49

$

In Stock, only 3 left!

0

9

Toro 130-8451

RIVET-TRIFOLD

$1.49

$

Usually ships in 3-6 days

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 144-2669

DECAL-SERVICE AID

$5.49

$

Usually ships in 3-6 days

0

12

Toro 147-2362-03

BRACKET-FIREWALL

$21.99

$

Usually ships in 0 days

0

13

Toro 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0
