77280 (2000) - Toro 48" Z Master Zero-Turn Mower (SN: 400000000 - 410199999) Frame Assembly Parts Diagram

48" Z Master Zero-Turn Mower

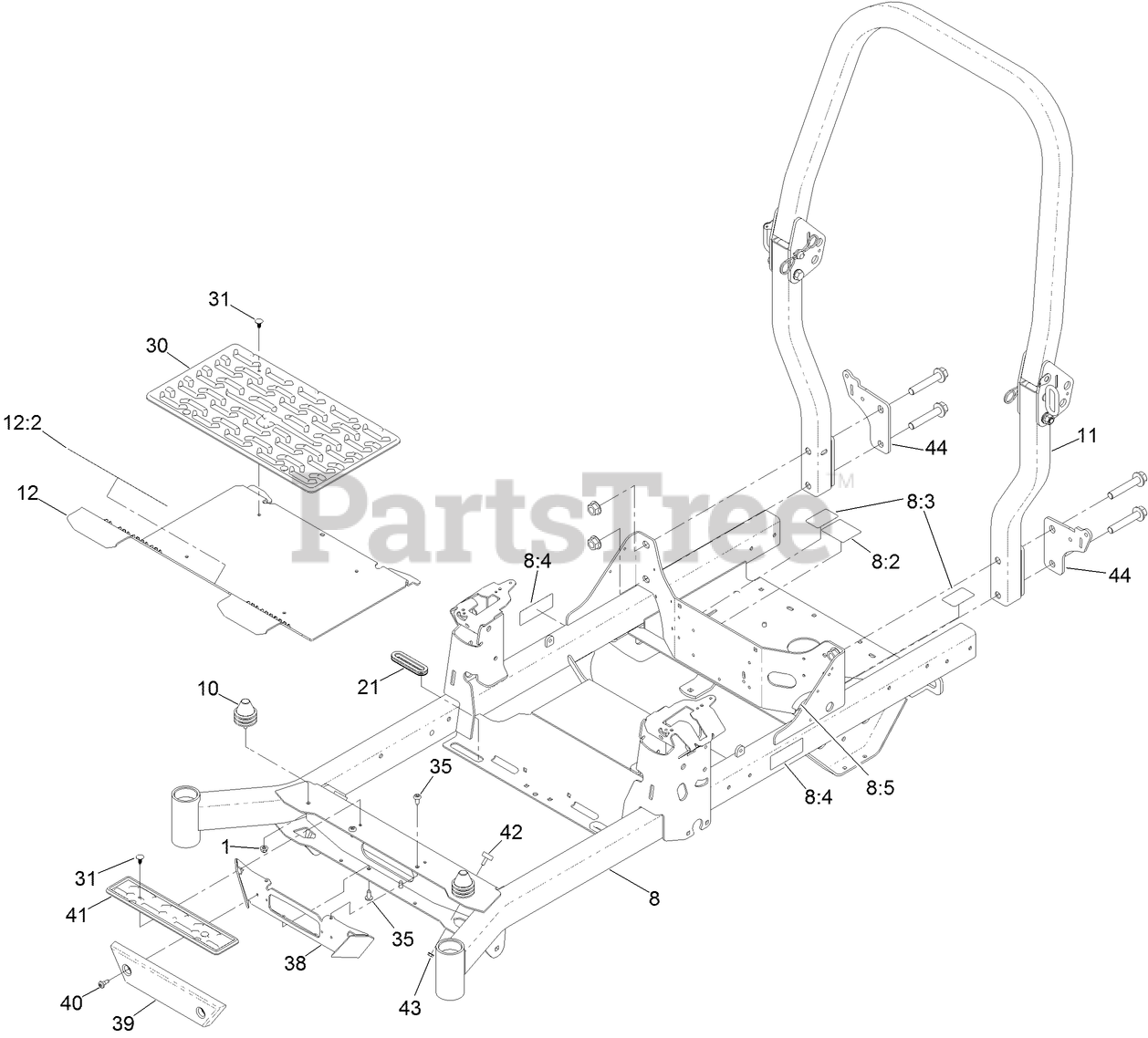

Frame Assembly Parts Diagram

  • Title

1

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 144-1842

FRAME-48/52

$1644.99

$

Usually ships in 0 days

0

8:2

Toro 109-6014

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 4 left!

0

8:3

Toro 116-8588

DECAL-RELEASE, DRIVE

$2.99

$

Usually ships in 3-6 days

0

8:4

Toro 126-4363

DECAL-WARNING

$18.99

$

Usually ships in 3-6 days

0

8:5

Toro 127-6618

STRIP-SEAL

$6.49

$

Usually ships in 3-6 days

0

10

Toro 126-5491

ISOLATOR

$20.99

$

Usually ships in 3-6 days

0

11

Toro 144-1848

ASM-ROPS

$633.99

$

Usually ships in 3-6 days

0

12

Toro 144-3767

PAN-FLOOR

$168.99

$

Usually ships in 3-6 days

0

12:2

Toro 126-8383

DECAL-DANGER

$9.49

$

In Stock, only 1 left!

0

21

Toro 126-7065

GROMMET-RUBBER

$5.49

$

Usually ships in 3-6 days

0

30

Toro 144-2615

FLOOR MAT

$59.99

$

Usually ships in 3-6 days

0

31

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

35

Toro 138-9753

SCREW

$1.49

$

In Stock, only 3 left!

0

38

Toro 144-2628-01

BRACKET-LIGHT [RED]

$41.99

$

Usually ships in 3-6 days

0

39

Toro 144-2604

BUMPER-FRONT

$25.99

$

Usually ships in 3-6 days

0

40

Toro 135-2015

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0

41

Toro 144-2614

STEP

$13.99

$

Usually ships in 3-6 days

0

42

Toro 138-2662

BUMPER-RUBBER

$22.99

$

Usually ships in 3-6 days

0

43

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

44

Toro 126-9487-03

BRACKET

$

$

Currently unavailable
