77106 (17-44 H) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) IDLER & BRAKE ASSEMBLY Parts Diagram

Lawn Tractor

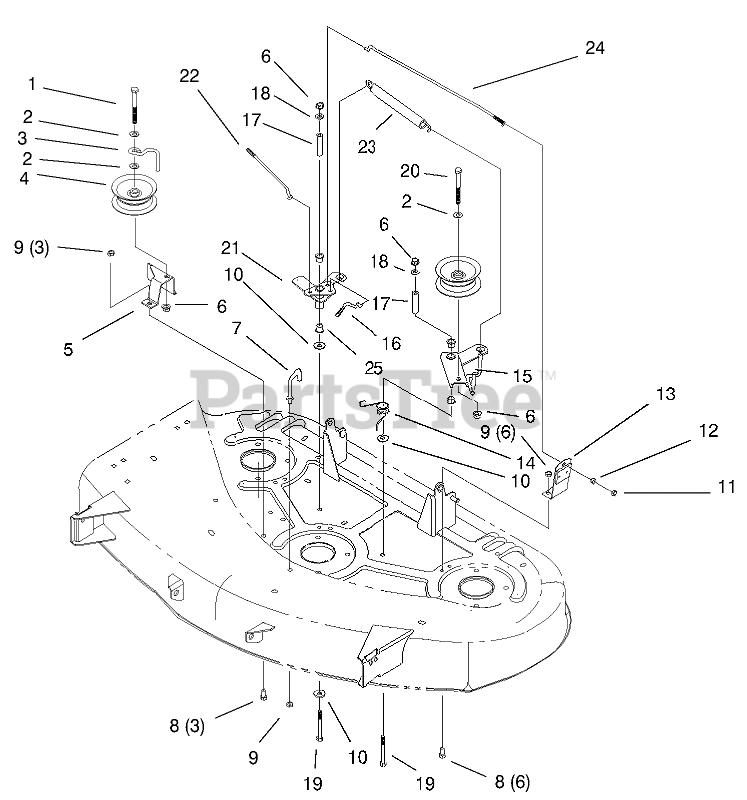

IDLER & BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 88-5070

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 5

0

4

Toro 88-5630

PULLEY-IDLER, FLAT
(Superseded to 132-4717)

$22.99

$

In Stock, only 3 left!

0

5

Toro 93-3860-03

BRACKET-IDLER

$

$

Not available

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

7

Toro 88-5960

GUIDE-TRANS BELT, LH

$

$

Not available

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 14

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 67-0710

BALL-SWIVEL, STOP

$4.49

$

In Stock, only 2 left!

0

13

Toro 93-3841

BRAKE ASM

$

$

Not available

14

Toro 93-9342

SPRING-TORSION

$11.99

$

In Stock, only 2 left!

0

15

Toro 94-1986-03

BELLCRANK

$117.99

$

Usually ships in 3-6 days

0

16

Toro 93-3852

ROD-BRAKE, CENTER

$

$

Not available

17

Toro 94-1988

SPACER-PIVOT

$14.99

$

In Stock, Qty 7

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 94-1989-03

BELLCRANK

$

$

Not available

22

Toro 93-3853

ROD-BRAKE, RH

$27.99

$

Usually ships in 3-6 days

0

23

Toro 93-3850

SPRING-ENGAGE, DECK

$34.99

$

Usually ships in 3-6 days

0

24

Toro 93-3851

ROD-BRAKE, LH

$41.99

$

Usually ships in 3-6 days

0

25

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0
