77106 (17-44 H) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) HYDRO TRANSAXLE CONTROLS ASSEMBLY Parts Diagram

Lawn Tractor

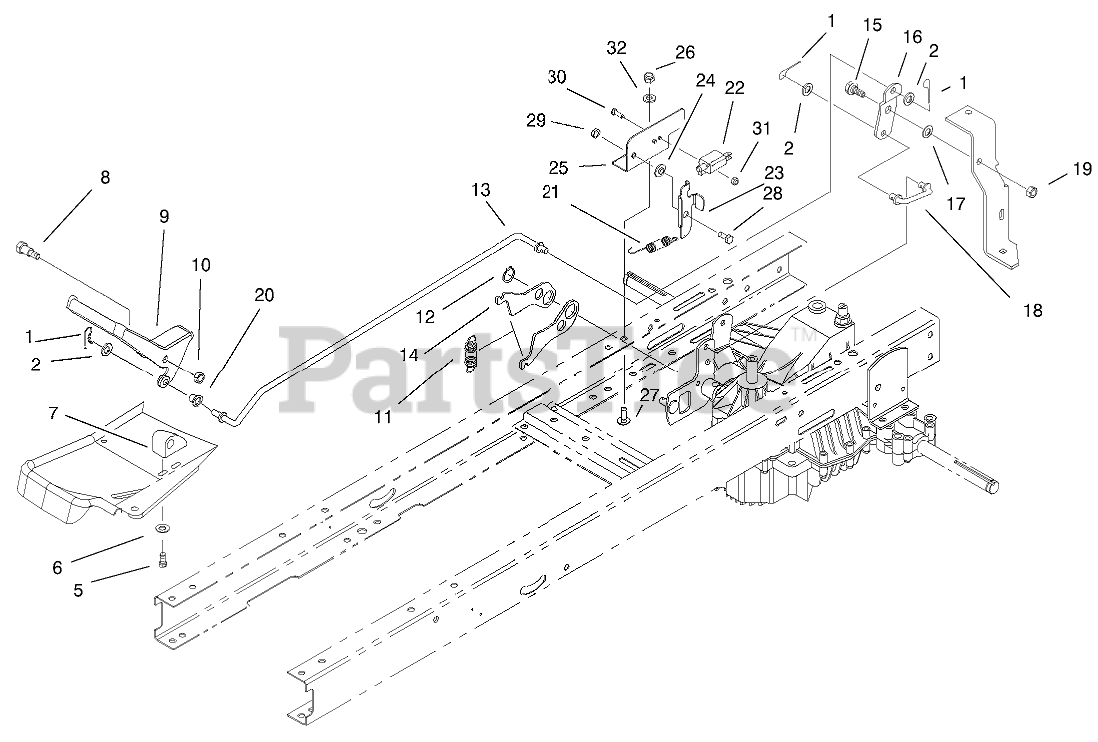

HYDRO TRANSAXLE CONTROLS ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

2

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

5

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 88-4690

BLOCK-PIVOT

$16.99

$

In Stock, only 3 left!

0

8

Toro 23-0310

SCREW-SHOULDER, HH

$28.99

$

Usually ships in 3-6 days

0

9

Toro 99-6120-05

PEDAL-CONTROL, SPEED

$31.99

$

Usually ships in 3-6 days

0

10

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

11

Toro 92-7305

SPRING-EXTENSION

$10.99

$

In Stock, only 3 left!

0

12

Toro 32151-83

RING-SNAP

$0.99

$

Usually ships in 3-6 days

0

13

Toro 99-6804

ROD-SPEED CONTROL,1744

$

$

Not available

14

Toro 88-5610

NEUTRAL RETURN LEVER

$

$

Not available

15

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, Qty 12

0

16

Toro 93-3875

BELLCRANK

$

$

Not available

17

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

18

Toro 93-3874

LINK-SPEED/DIRECT CONTROL

$

$

Not available

19

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

20

Toro 99-6121

BUSHING-FLANGED

$4.49

$

Usually ships in 3-6 days

0

21

Toro 99-6805

SPRING-EXTENSION

$21.99

$

Usually ships in 3-6 days

0

22

Toro 95-1653

SWITCH-POLE, SINGLE

$20.99

$

Usually ships in 3-6 days

0

23

Toro 99-6807

BRACKET-PIVOT

$

$

Not available

24

Toro 99-6808

WASHER-STEPPED

$1.99

$

Usually ships in 3-6 days

0

25

Toro 99-6806

BRACKET-ADJUSTMENT

$

$

Not available

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

28

Toro 99-6810

SCREW-HHF

$3.49

$

In Stock, only 2 left!

0

29

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

30

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

31

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

32

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
