77106 (17-44 H) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) HYDRO TRANSAXLE ASSEMBLY Parts Diagram

Lawn Tractor

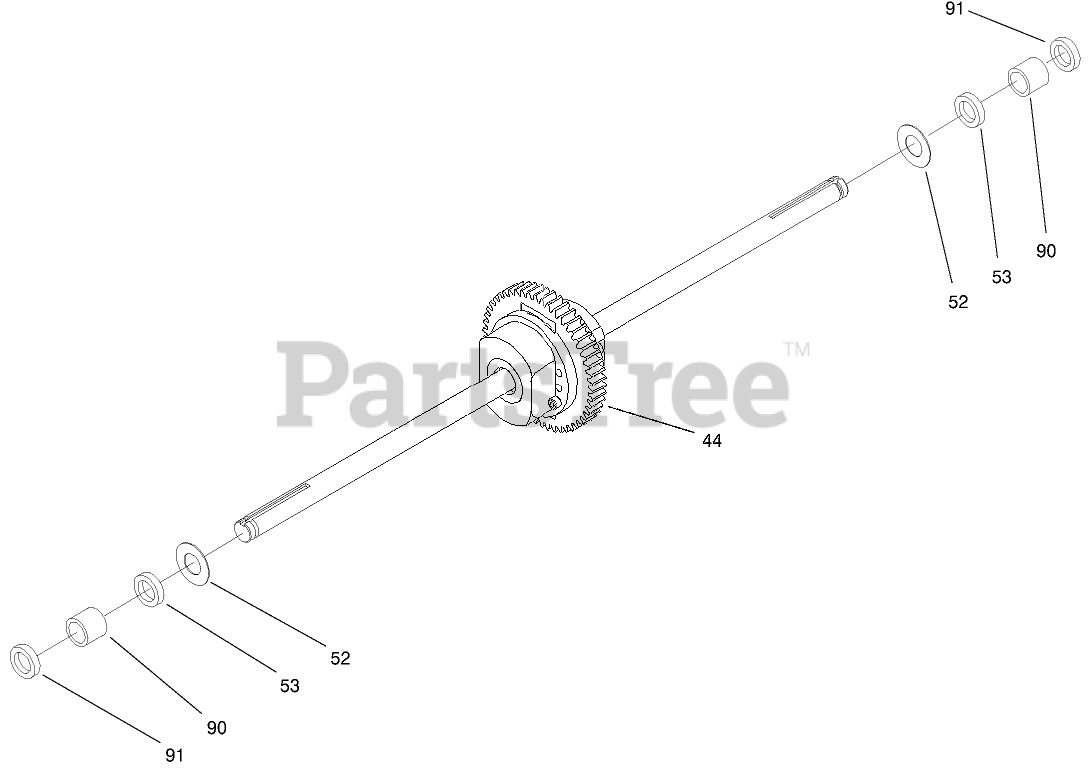

HYDRO TRANSAXLE ASSEMBLY Parts Diagram

  • Title
44

Toro 95-3269

Differential ASM
(Superseded to 95-1662)

$3792.99

$

Usually ships in 3-6 days

0

52

Toro 94-1943

WASHER

$6.99

$

Usually ships in 3-6 days

0

53

Toro 94-1924

SEAL
(Superseded to 121-0970)

$

$

Not available

90

Toro 94-1934

SLEEVE - BEARING

$

$

Not available

91

Toro 94-1935

SEAL - WIPER

$

$

Not available
