77102 (16-38 G) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) 38" DECK ENGAGEMENT COMPONENTS ASSEMBLY Parts Diagram

Lawn Tractor

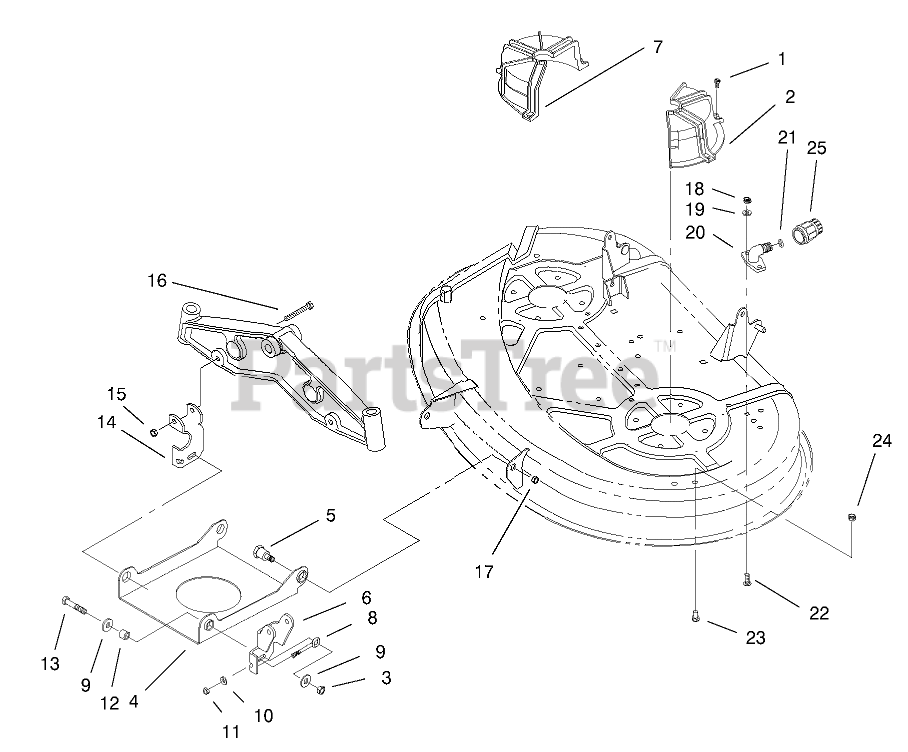

38" DECK ENGAGEMENT COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 88-4030

GUIDE-BELT, LH

$41.99

$

In Stock, only 1 left!

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

4

Toro 93-3881-03

PAN-DECK SUSPENSION, FRONT

$

$

Not available

5

Toro 94-5823

BOLT-SHOULDER, HH
(Superseded to 130-8185)

$11.99

$

In Stock, only 2 left!

0

6

Toro 94-1971-03

BRACKET-SUSPENSION, LH

$14.99

$

In Stock, only 2 left!

0

7

Toro 88-4020

GUIDE-BELT, RH

$41.99

$

In Stock, only 1 left!

0

8

Toro 61-9980

SCREW-ADJUSTING

$9.49

$

In Stock, only 1 left!

0

9

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 11

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

12

Toro 93-9847

SPACER

$9.49

$

In Stock, only 2 left!

0

13

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 94-1970-03

BRACKET-SUSPENSION, RH

$14.99

$

In Stock, Qty 7

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

17

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

19

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

21

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

22

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

23

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0
