7700 - Poulan Chainsaw HANDGUARD, AIR FILTER, FUEL SYSTEM Parts Diagram

Chainsaw

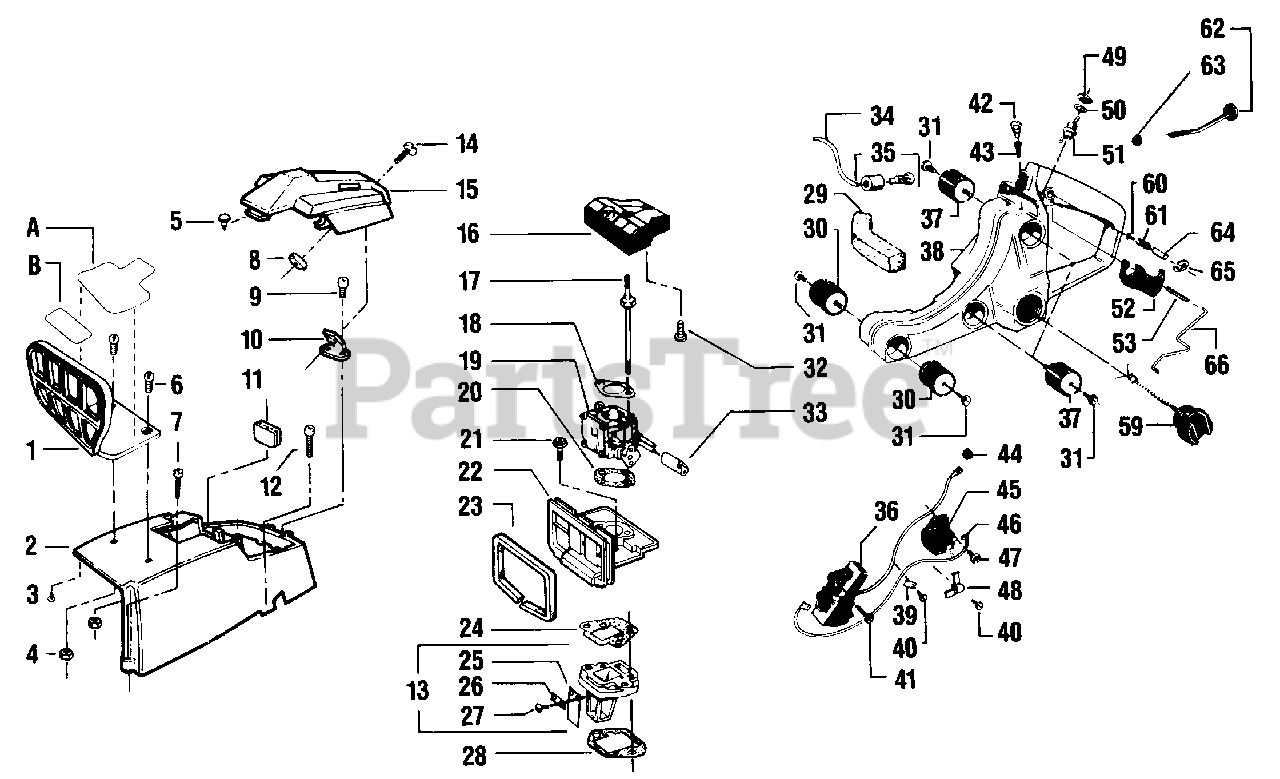

HANDGUARD, AIR FILTER, FUEL SYSTEM Parts Diagram

  • Title

1

Poulan 530025948

Handguard

$

$

Not available

2

Poulan 530026433

Cover - Cylinder

$

$

Not available

3

Poulan 530015589

Drive Pin

$

$

Not available

4

Poulan 530001543

Nut - 10 - 24

$

$

Not available

5

Poulan 530026726

Bumper - Carb. - Cover

$

$

Not available

6

Poulan 530015406

Screw - 10 - 24 x 1/2 Pan Hd.

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530015625

Screw - Cylinder Cover #10 - 24 x 3/4

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 530026528

Retainer - Carb. Cover - Screw

$

$

Not available

9

Poulan 530015496

Screw - Bracket Carb. Cover 10 - 16 x 1/2 HiLo

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530026516

Bracket - Carb. Cover Retainer

$

$

Not available

11

Poulan 530026522

Vent - Winter

$

$

Not available

12

Poulan 530015641

Screw - Cyl. Cover #12 - 24 x 7/8

$

$

Not available

13

Poulan 530010752

Reed Valve Assembly (Incl. #25, 26 & 27)

$

$

Not available

14

Poulan 530015584

Screw - Carb. Cover 10 - 24 x 9/16 Fil. Hd.

$

$

Not available

15

Poulan 530026434

Cover - Carburetor

$

$

Not available

16

Poulan 530026561

Air Filter Assembly

$21.99

$

Usually ships in 3-10 days

0

17

Poulan 530015585

Stud - Carburetor

$

$

Not available

18

Poulan 530023664

Plate - Air Filter

$3.99

$

Usually ships in 3-10 days

0

19

Carburetor Assembly -

$

$

Not available

Poulan 530034096

6900

$

$

Not available

Poulan 530034111

7700 G.SAW & 8500

$

$

Not available

20

Poulan 530019082

Gasket - Carb. to Adaptor Included in Engine - Gasket Kit 69180

$

$

Not available

21

Poulan 530015545

Screw - Carb. Adapt. Reed Block - 10 - 24 x 1-1/4

$1.49

$

Usually ships in 3-10 days

0

22

Poulan 530026435

Adaptor - Carburetor

$

$

Not available

23

Poulan 530019133

Seal - Carb. to Adaptor

$

$

Not available

24

Poulan 530019134

Gasket - Carb. Adaptor to Reed Valve Ass'y

Note: Included in Engine - Gasket Kit 69180

$

$

Not available

25

Poulan 530023643

Reed

$2.49

$

Usually ships in 3-10 days

0

26

Poulan 530002580

Stop - Reed

$

$

Not available

27

Poulan 530001713

Screw - Reed Mounting #4 - 40 x 1/8 Pan Head

$

$

Not available

28

Poulan 530019086

Gasket - Reed Valve Assembly - C'Case Included in Engine - Gasket Kit 69180

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 530023692

Seal - Sawdust Included in Engine - Gasket Kit 69180

$

$

Not available

30

Poulan 530024224

Mount Forward Isolator (Hourglass Shape)

$

$

Not available

31

Poulan 530015036

Screw - Crankcase to Mounts - 10 - 24 x 1/2
(Superseded to 530016141)

$5.99

$

Usually ships in 3-10 days

0

32

Poulan 530015496

Screw - Air Filter 10 - 16 x 1/2 - HiLo

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530024003

Grommet - Carb. Adj. Screws

$

$

Not available

34

Poulan 530021022

Line - Fuel Pick-up (Bulk No. 8136)

$

$

Not available

35

Fuel - Pick-up Assembly

$

$

Not available

Poulan 530034104

6900 & 7700 G.SAW

$

$

Not available

Poulan 530034114

8500

$

$

Not available

36

Poulan 530039067

Module - Ignition (Incl. #44 & 46)

$

$

Not available

37

Poulan 530024225

Mount - Center and Rear Isolator (Cylindrical Shape)

$

$

Not available

38

Poulan 530010749

Fuel Tank & Handle Ass'y. (Incl. #29, 60, 61, 64 & 65)

$

$

Not available

39

Poulan 530023661

Clamp - Lead Wire Ignition

$2.49

$

Usually ships in 3-10 days

0

40

Poulan 530001726

Screw - 8 - 32 x 5/16 - Tapping

$

$

Not available

41

Poulan 530015198

Screw - Module Ignition - 10 - 24 x 7/8

$

$

Not available

42

Poulan 530010528

Vent - Assembly - Fuel Tank (Incl. #42)

$

$

Not available

43

Poulan 530026119

Check Valve - Fuel Tank Vent

$5.99

$

In Stock, Qty 10

0

44

Poulan 530039069

Grommet - Lead Wire Included in Engine - Gasket Kit 69180

$

$

Not available

45

Poulan 530039119

Transformer Ass'y. (Incl. #59 p. 1)

$54.99

$

Usually ships in 3-10 days

0

46

Poulan 530039064

Lead Wire - Module/Transformer

$

$

Not available

47

Poulan 530015038

Screw - 10 - 24 x 3/4 Hex Washer Hd. - Transformer

$

$

Not available

48

Poulan 530025856

Clamp - Lead Wire

$

$

Not available

49

Poulan 530023575

Nut - Switch Mounting
(Superseded to 530002582)

$

$

Not available

50

Poulan 530015214

Lockwasher - Switch Mtg.

$

$

Not available

51

Poulan 530023732

Switch - Ignition

$

$

Not available

52

Poulan 530023658

Trigger - Throttle

$

$

Not available

53

Poulan 530015008

Pin - Trigger

$

$

Not available

59

Poulan 530010331

Fuel Cap Ass'y. (Incl. O-Ring)

$

$

Not available

60

Poulan 530024772

Spring - Throttle Lock

$4.99

$

Usually ships in 3-10 days

0

61

Poulan 530024771

Pin - Throttle Lock

$3.99

$

Usually ships in 3-10 days

0

62

Poulan 530024762

Choke Knob

$

$

Not available

63

Poulan 530023665

Grommet - Choke Rod Included in Engine - Gasket Kit 69180

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530024773

Sleeve - Throttle Lock

$

$

Not available

65

Poulan 530001672

"E" Ring - Throttle Lock

$

$

Not available

66

Poulan 530026351

Wire - Throttle

$

$

Not available

A

Poulan 530026921

Decal - Starting Instructions

$

$

Not available

B

Poulan 530026850

Decal - Kickback

$

$

Not available

Poulan 530026732

Decal - Professional User - (Not Shown)

$

$

Not available
