7700 - Poulan Chainsaw BOWGUIDE ASSEMBLY Parts Diagram

Chainsaw

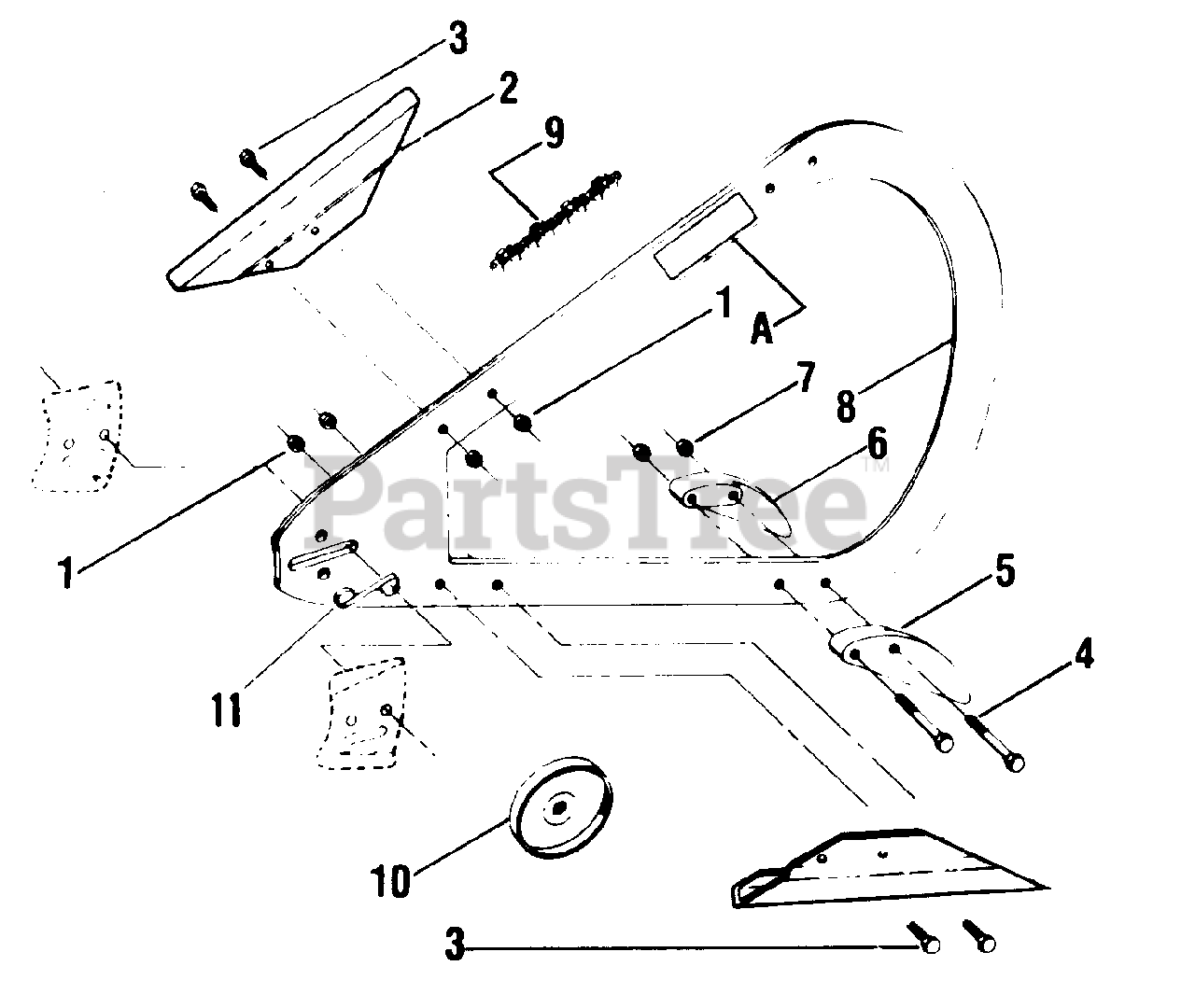

BOWGUIDE ASSEMBLY Parts Diagram

  • Title

1

Poulan 530001725

Locknut - 12 - 24

$3.99

$

Usually ships in 3-10 days

0

2

Chain Guard - Upper & Lower

$

$

Not available

Poulan 530011275

13" Bow Guide

$

$

Not available

Poulan 530022162

14" Bow Guide

$

$

Not available

3

Poulan 530001709

Screw - Guide Mtg. (12 - 24 x 5/8) Hex Head

$4.99

$

In Stock, Qty 7

0

4

Poulan 530625567

Screw - Guard Mtg. (1/4 - 20 x 1-3/4 Hex Head)

$

$

Not available

5

Poulan 530001208

Bumper Spike - Right

$

$

Not available

6

Poulan 530001207

Bumper Spike - Left

$

$

Not available

7

Poulan 530001615

Locknut - Bumper Spike Mtg. (1/4-20)

$

$

Not available

8

Bow Guide (See Bow & Chain Information)

$

$

Not available

9

Bow Guide (See Bow & Chain Information)

$

$

Not available

10

Poulan 530048076

Drum and Sprocket Ass'y. (For .404 pitch only)

$

$

Not available

11

Poulan 530055044

"S" Clip

$

$

Not available

Poulan 952000481

13" Reversible Bow Attachment (.050 gauge)

$

$

Not available

Poulan 952000482

14" Reversible Bow Attachment (.050 gauge)

$

$

Not available

Poulan 952000483

14" Reversible Bow Attachment (0.63 gauge)

$

$

Not available

A

Poulan 530025384

Decal - Bow Guide Warning

$

$

Not available

Poulan 530025383

Decal - Handguard (Not Shown)

$

$

Not available
