77 - Husqvarna Chainsaw (1987-12) Chain Brake Assembly Parts Diagram

Chainsaw

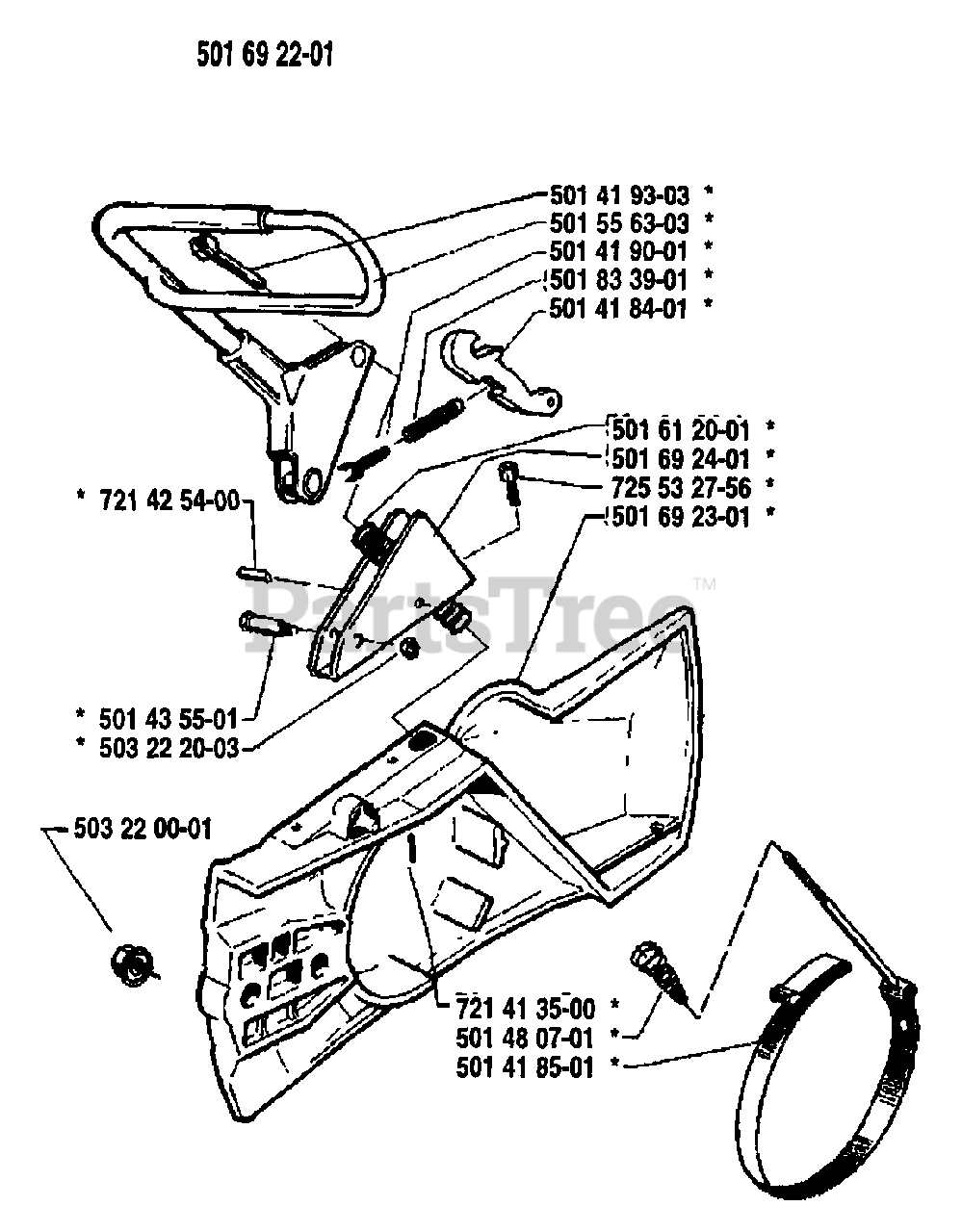

Chain Brake Assembly Parts Diagram

  • Title
501692201

Husqvarna 501692201

CHAINBRAKE/NLA NLA

$

$

Not available

501419303

Husqvarna 501419303

ADJUSTING NUT NLA

$

$

Not available

501556303

Husqvarna 501556303

HAND GUARD NLA

$

$

Not available

501419001

Husqvarna 501419001

SPRING GUIDE

$

$

Not available

501833901

Husqvarna 501833901

SPRING, BRAKE PAWL

$

$

Not available

501418401

$

$

Not available

501612001

Husqvarna 501612001

BRAKE SPRING
(Superseded to 501824701)

$2.99

$

In Stock, only 1 left!

0

501692401

Husqvarna 501692401

HOLDER NLA

$

$

Not available

725532756

Husqvarna 725532756

SCREW MC6S 5X12
(Superseded to 725532755)

$6.49

$

In Stock, Qty 11

0

501692301

Husqvarna 501692301

CLUTCH COVER

$

$

Not available

721425400

Husqvarna 721425400

SPRING PIN 4X16

$

$

Not available

501435501

$

$

Not available

503222003

Husqvarna 503222003

STOVER NUT M5
(Superseded to 503222302)

$

$

Not available

503220001

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

721413500

Husqvarna 721413500

SPRING PIN 1.5X10

$

$

Not available

501480701

$

$

Not available

501418501

Husqvarna 501418501

BRAKE BAND NLA

$

$

Not available
