77-42VX01 - Toro 42" Lawn Vacuum Attachment (1977) LAWN VACUUM VEHICLE IDENTIFICATION NUMBER 77-42VX01 Parts Diagram

42" Lawn Vacuum Attachment

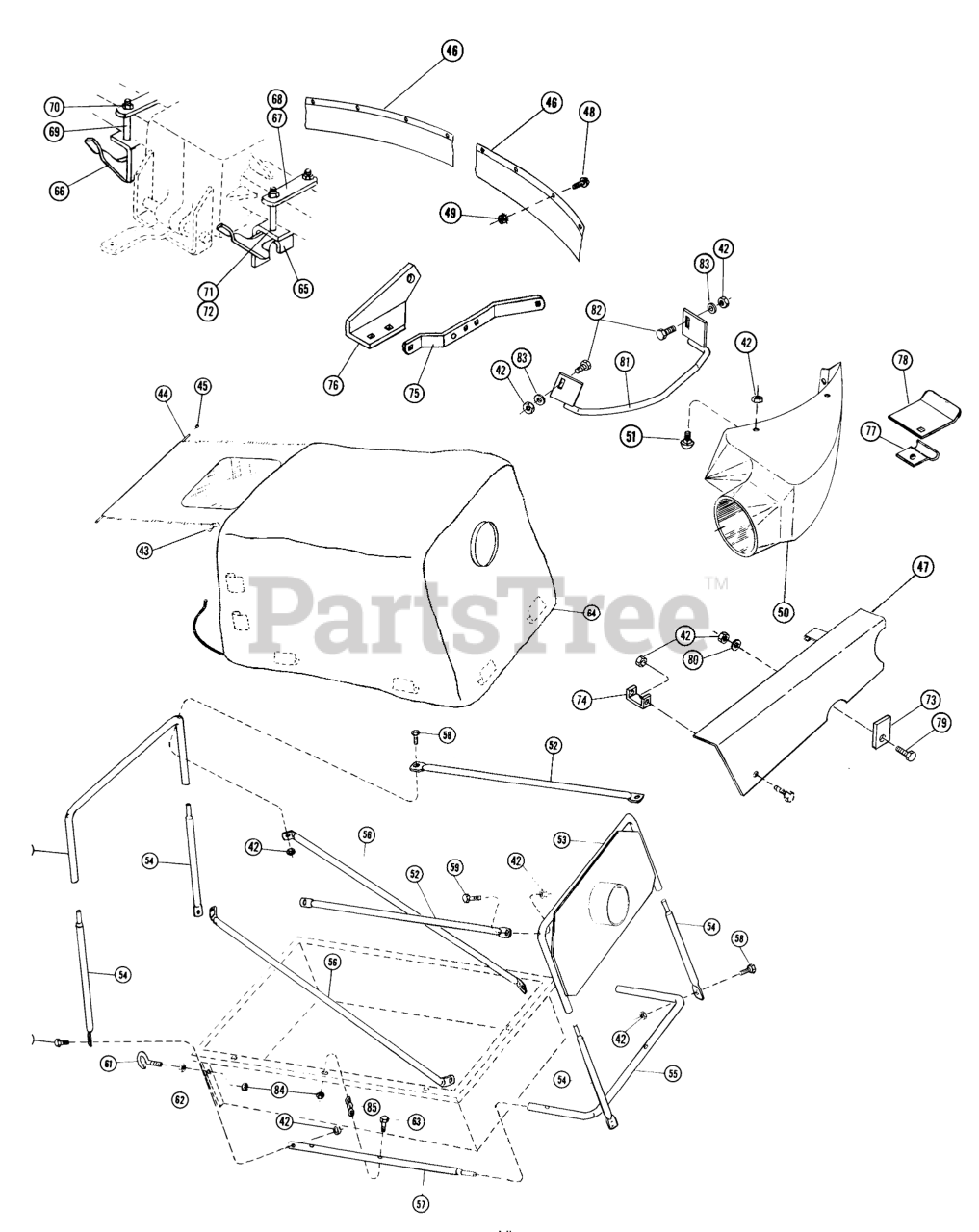

LAWN VACUUM VEHICLE IDENTIFICATION NUMBER 77-42VX01 Parts Diagram

  • Title
42

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

43

Toro 106186

5/16 DIA HOOK

$

$

Not available

44

Toro 106538

Canopy Rod
(Superseded to 106189)

$

$

Not available

45

Toro 106539

Rubber Cap
(Superseded to 106188)

$

$

Not available

46

Toro 102546

ASSY COVER

$

$

Not available

47

Toro 104449

Belt Guard Assembly

$

$

Not available

48

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

49

Toro 915964

#10-24 Kep-Nut
(Superseded to 32149-7)

$0.99

$

In Stock, only 3 left!

0

50

Toro 102548

NOZZLE ASSY

$

$

Not available

51

Toro 900285

Bolt Carnage
(Superseded to 3230-18)

$5.49

$

In Stock, Qty 8

0

52

Toro 102549

Top Tube

$

$

Not available

53

Toro 106187

Front Hose Adapter

$

$

Not available

54

Toro 102551

Upright Brace

$

$

Not available

55

Toro 106180

U-Tube

$

$

Not available

56

Toro 106181

Cross Tube

$

$

Not available

57

Toro 106182

Side Tube

$

$

Not available

58

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

59

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

60

Toro 106183

U-Tube

$

$

Not available

61

Toro 102555

EYE BOLT

$

$

Not available

62

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

63

Toro 908005

Bolt
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

64

Toro 106185

Cart Cover

$

$

Not available

65

Toro 7710

Hitch Axle Mounting
(Superseded to 104659-01)

$171.99

$

Usually ships in 3-6 days

0

66

Toro 7704

Latch Hitch
(Superseded to 104657)

$36.99

$

Usually ships in 3-6 days

0

67

Toro 7711

Link
(Superseded to 3697)

$33.99

$

Usually ships in 3-6 days

0

68

Toro 7713

SPACER-BRACKET

$

$

Not available

69

Toro 900073

Bolt-Carriage
(Superseded to 3231-11)

$5.49

$

In Stock, only 2 left!

0

70

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

71

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

72

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

73

Toro 104450

Belt Guard Plate

$

$

Not available

74

Toro 104446

Belt Guard Bracket

$

$

Not available

75

Toro 104359

Draft Bar-Mower

$

$

Not available

76

Toro 104358

Deck Bracket-Mower

$

$

Not available

77

Toro 104099

BRACKET

$

$

Not available

78

Toro 104100

Footrest Plate

$

$

Not available

79

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

80

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

81

Toro 106054

Blade Guard Assembly

$

$

Not available

82

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

83

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

84

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

85

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0
