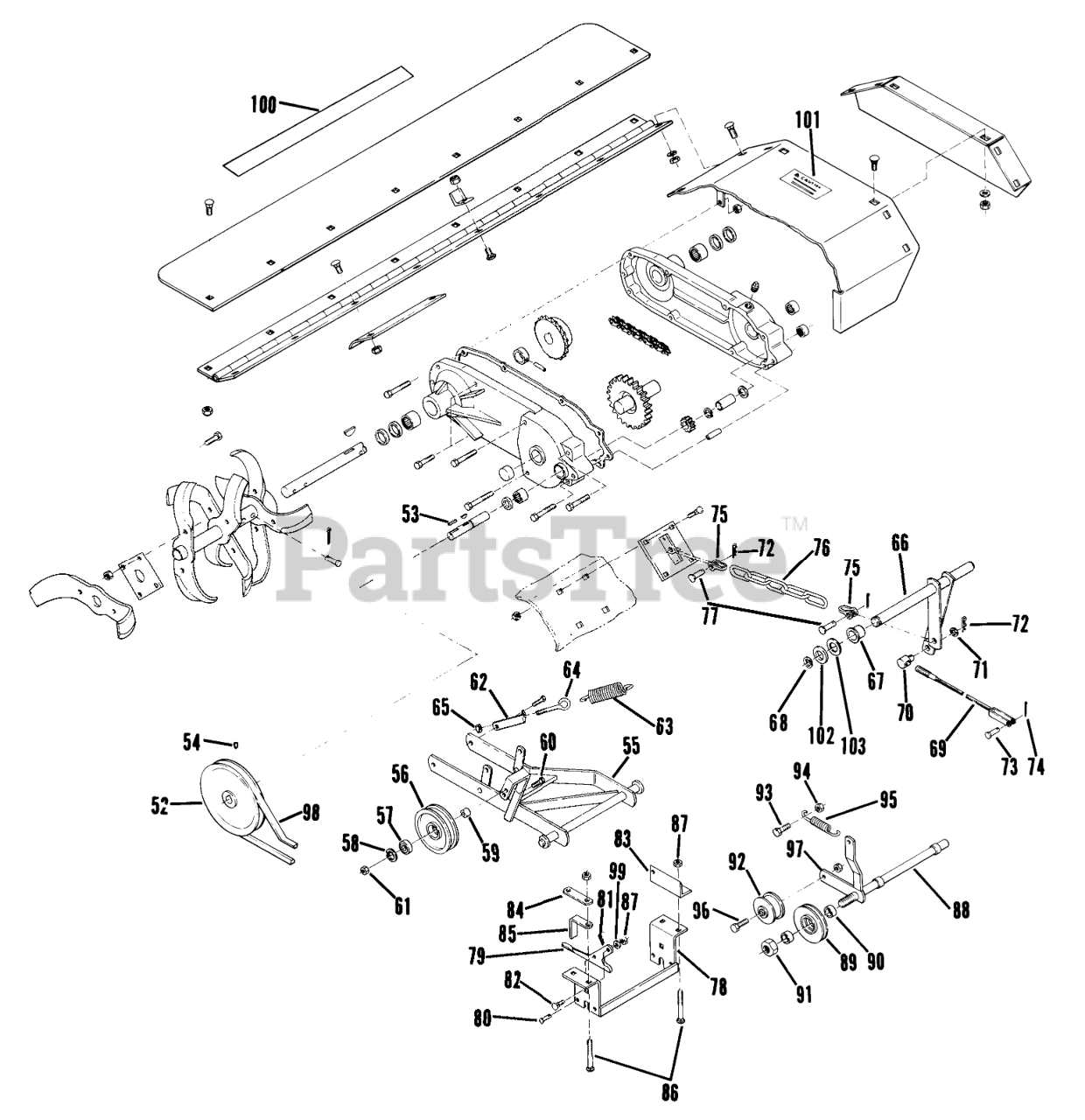

77-36TL01 - Toro 36" Tiller Attachment (1977) PARTS LIST FOR 36" TILLER FACTORY ORDER NUMBER 77-36TL01 Parts Diagram

36" Tiller Attachment

PARTS LIST FOR 36" TILLER FACTORY ORDER NUMBER 77-36TL01 Parts Diagram

  • Title

51

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

52

Toro 6844

Pulley
(Superseded to 93-0345)

$164.99

$

Usually ships in 3-6 days

0

53

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.49

$

In Stock, only 4 left!

0

54

Toro 7977

Setscrew-Square Head

$

$

Not available

55

Toro 105543

Hitch
(Superseded to 93-1607-01)

$398.99

$

Usually ships in 3-6 days

0

56

Toro 105874

Flat Idler
(Superseded to 92-7104)

$29.99

$

In Stock, only 1 left!

0

57

Toro 4567

BEARING

$99.99

$

Usually ships in 3-6 days

0

58

Toro 936024

INTERNAL SNAPRING

$3.49

$

Usually ships in 3-6 days

0

59

Toro 2138

SPACER

$

$

Not available

60

Toro 911404

HEX HD CAP SCREW

$0.99

$

In Stock, Qty 7

0

61

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

62

Toro 104448

Bracket-Spring
(Superseded to 93-1606-03)

$42.99

$

Usually ships in 3-6 days

0

63

Toro 4629

SPRING

$70.99

$

In Stock, only 2 left!

0

64

Toro 100653

EYEBOLT

$22.99

$

Usually ships in 3-6 days

0

65

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

66

Toro 105539

Lever Assy.

$

$

Not available

67

Toro 6254

BUSHING

$18.99

$

In Stock, only 2 left!

0

68

Toro 5618

E-RING

$0.99

$

In Stock, Qty 11

0

69

Toro 105542

ASSY-LIFT CABLE

$171.99

$

Usually ships in 3-6 days

0

70

Toro 104524

TRUNNION-CLUTCH ROD

$43.99

$

Usually ships in 3-6 days

0

71

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

72

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

73

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

74

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

75

Toro 105820

Clevis
(Superseded to 79-2280)

$19.99

$

Usually ships in 3-6 days

0

76

Toro 105550

CHAIN-LIFT

$

$

Not available

77

Toro 105821

Clevis Pin
(Superseded to 9329584)

$

$

Not available

78

Toro 104659

Bracket
(Superseded to 104659-01)

$171.99

$

Usually ships in 3-6 days

0

79

Toro 104657

PLATE-LATCHING

$36.99

$

Usually ships in 3-6 days

0

80

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

81

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

82

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

83

Toro 104845

Link
(Superseded to 108485-01)

$

$

Not available

84

Toro 3697

BRACKET-REAR LINK MOUNTING

$33.99

$

Usually ships in 3-6 days

0

85

Toro 7713

SPACER-BRACKET

$

$

Not available

86

Toro 900073

Bolt-Carriage
(Superseded to 3231-11)

$5.49

$

In Stock, only 2 left!

0

87

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

88

Toro 104089

Front Idler
(Superseded to 108609)

$

$

Not available

89

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 4 left!

0

90

Toro 7038

Spacer

$9.99

$

Usually ships in 3-6 days

0

91

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

92

Toro MW8821

IDLER PULLEY

$22.99

$

Usually ships in 3-6 days

0

93

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

93

Toro 908041

Bolt
(Superseded to 323-13)

$1.99

$

In Stock, Qty 20+

0

94

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

95

Toro 6135

SPRING-BRAKE

$10.99

$

In Stock, only 1 left!

0

96

Toro 960179

BOLT

$

$

Not available

97

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

98

Toro 1599

V BELT

$68.99

$

Usually ships in 3-6 days

0

99

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

100

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

101

Toro 105003

Caution Decal
(Superseded to 92-7112)

$

$

Not available

102

Toro 1278

WASHER

$2.99

$

In Stock, Qty 5

0
