77-05DC01 - Toro 5.5 Cubic Foot Cart (1977) DUMP TRAILER FACTORY ORDER NUMBER 77-05DC01 Parts Diagram

5.5 Cubic Foot Cart

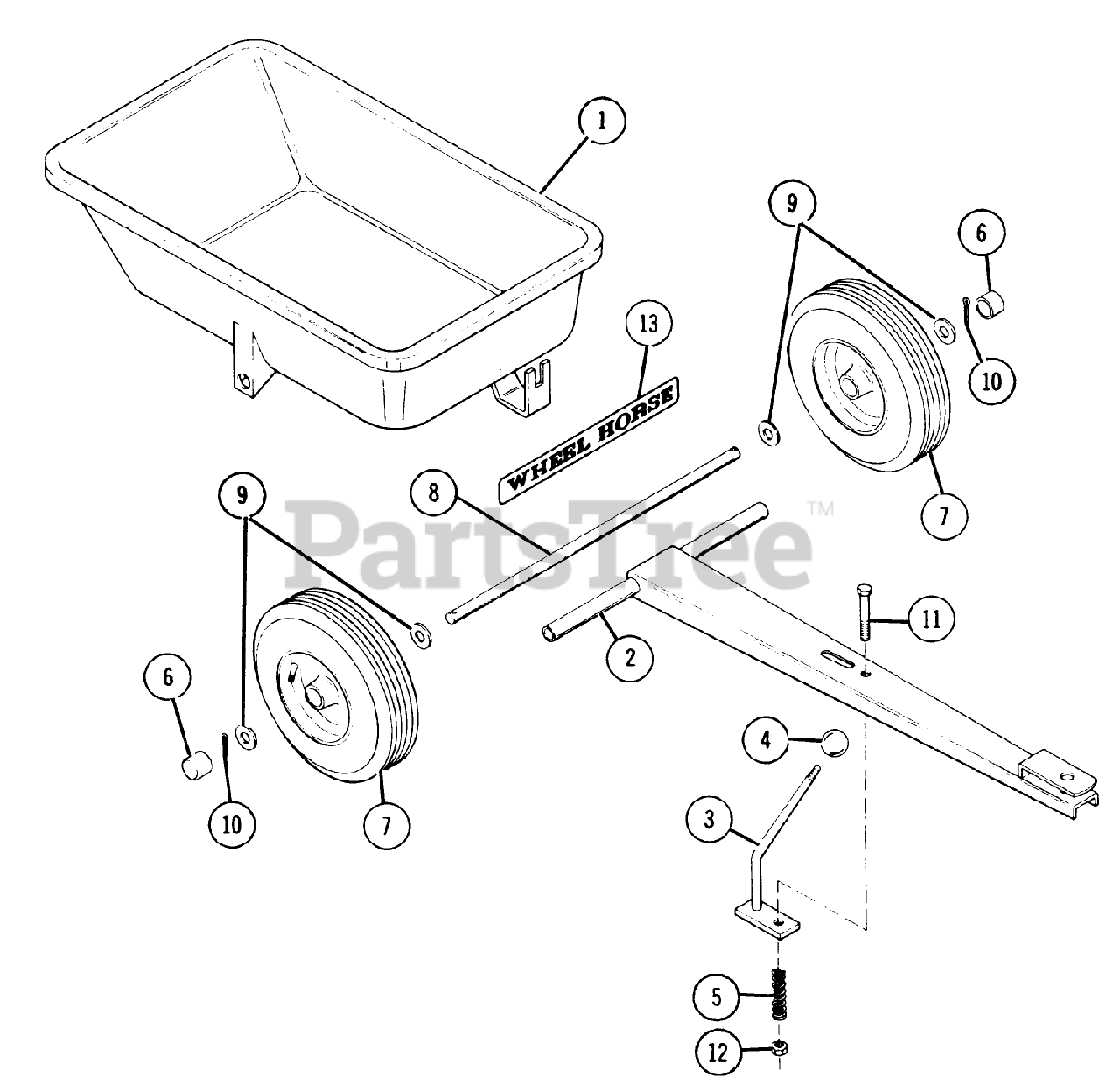

DUMP TRAILER FACTORY ORDER NUMBER 77-05DC01 Parts Diagram

  • Title
1

Toro 4366

Box Ass-y.

$

$

Currently unavailable

2

Toro 4371

Frame Ass-y.

$

$

Not available

3

Toro 105022

Latch Ass-y.

$

$

Not available

4

Toro 1001

Knob

$

$

Not available

5

Toro 2625

Spring

$

$

Not available

6

Toro 7747

Hub Cap
(Superseded to 103565)

$

$

Not available

7

Toro 1758

Tire & Wheel

$

$

Not available

Toro 1759

Wheel

$

$

Not available

Toro 1760

Tire

$

$

Not available

Toro 1761

Tube

$

$

Not available

8

Toro 4378

Axle

$

$

Not available

9

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

10

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, only 3 left!

0

11

Toro 908025

HHCS
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

12

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

13

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

Toro 3039

Hitch Plate

Note: Not Shown or Included. Used with 8-5521 Slot Hitch only.

$

$

Not available

14

Toro 105759

Weight Limit

$

$

Currently unavailable
