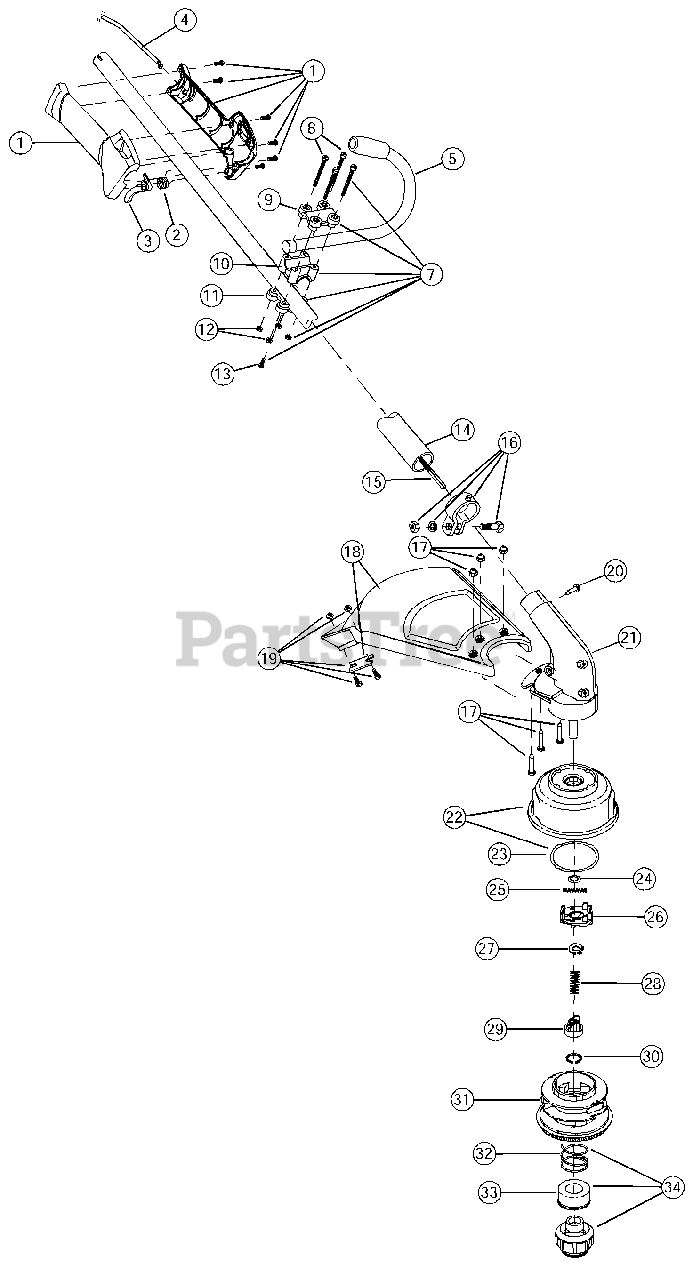

  • Title

1

MTD 791-182808

Throttle Housing and Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-182385

Throttle Trigger
(Superseded to 753-04295)

$

$

Not available

4

MTD 791-182068

Throttle Cable

$20.99

$

In Stock, only 2 left!

0

5

MTD 791-683815

J-Handle Assembly

$

$

Not available

7

MTD 791-683295

Handle Bracket Assembly

Note: (includes 8-13)

$45.99

$

Usually ships in 3-6 days

0

8

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

9

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

10

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

11

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

12

MTD 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

13

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

14

MTD 791-181569

Drive Shaft Housing Assembly

$

$

Not available

15

MTD 753-04117

Flexible Drive Shaft

$64.99

$

Usually ships in 3-6 days

0

16

MTD 791-153597

Lower Clamp Assembly

Note: (includes 24)

$

$

Not available

17

MTD 791-180547

Guard Mounting Screw Assembly

$

$

Not available

18

MTD 791-180548

Guard & Blade Assembly

$

$

Not available

19

MTD 791-180553

Blade Assembly

$14.99

$

Usually ships in 3-6 days

0

20

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

21

MTD 791-181566

Gearbox Assembly

$

$

Not available

22

MTD 791-181457

Outer Spool Assembly

Note: (includes 23)

$39.99

$

In Stock, only 1 left!

0

23

MTD 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

24

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, only 4 left!

0

25

MTD 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

26

MTD 753-04257

Slider

$7.49

$

In Stock, only 1 left!

0

27

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

28

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

29

MTD 791-181462

Plunger

$

$

Not available

30

MTD 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

31

MTD 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

32

MTD 791-181465

Large Spring

$

$

Currently unavailable

33

MTD 791-181467

Foam Seal & Washer

$

$

Not available

34

MTD 791-181468

Bumb Head Knob Assembly
(Superseded to 791-181468B)

Note: (includes 32 & 33)

$

$

Not available

MTD 791-181472

Replacement Line, 0.080 Diameter
(Superseded to 791-181460B)

Note: Optional Accessory; Item not shown

$32.99

$

Usually ships in 3-6 days

0

MTD 791-181470

Complete Cutting Head Assembly

Note: (includes 17 & 21-34); Optional Accessory; Item not shown

$

$

Not available

MTD 791-181460

Reel and Line Assembly
(Superseded to 791-181460B)

Note: Optional Accessory; Item not shown

$32.99

$

Usually ships in 3-6 days

0

MTD 791-682075

Shoulder Strap Assembly
(Superseded to 791-682075B)

Note: Optional Accessory; Item not shown

$38.99

$

Usually ships in 3-6 days

0
