767r (41BD767G034) - Ryobi String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

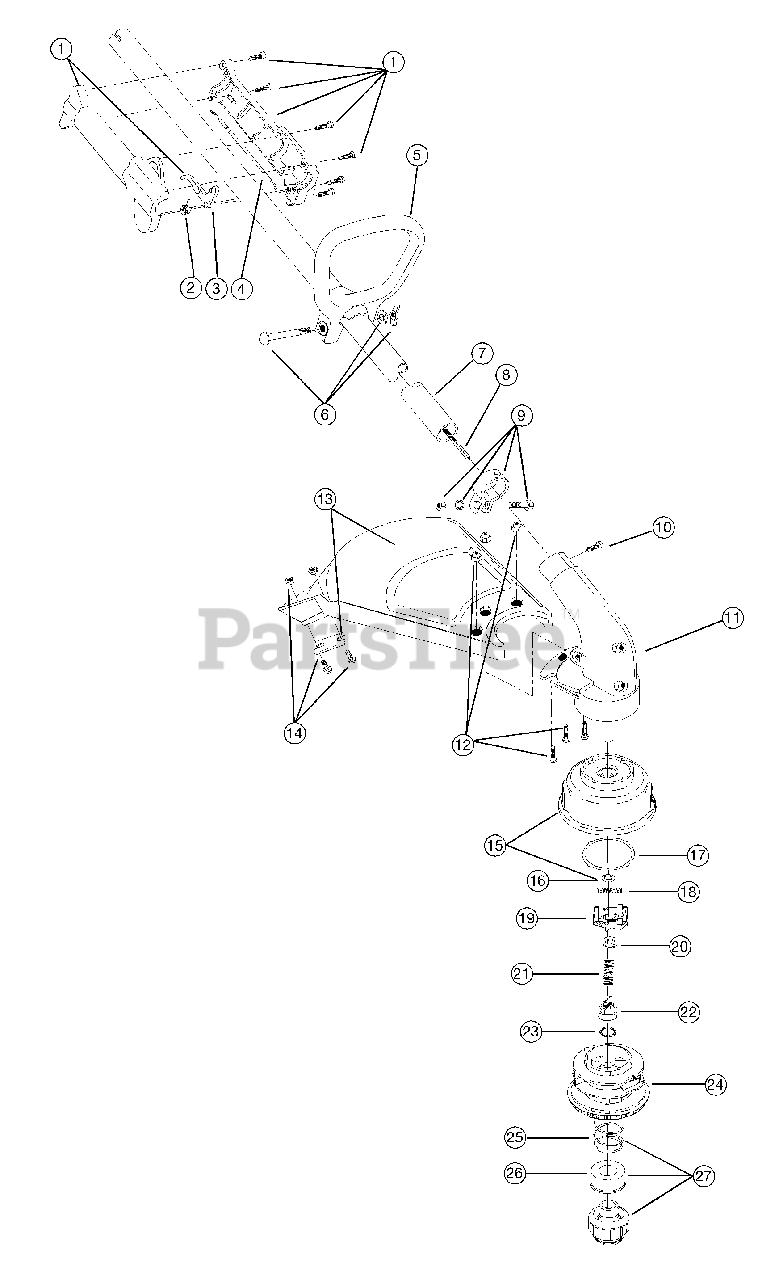

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 791-182808

Throttle Housing and Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-182385

Throttle Trigger
(Superseded to 753-04295)

$

$

Not available

4

MTD 791-182068

Throttle Cable Assembly

$20.99

$

In Stock, only 2 left!

0

5

MTD 791-153064

D-Handle Assembly

Note: (includes 6)

$

$

Not available

6

MTD 791-181587

D-Handle Hardware

$19.99

$

In Stock, only 1 left!

0

7

MTD 791-181569

Drive Shaft Housing Assembly

$

$

Not available

8

MTD 753-04117

Flexible Drive Shaft

$64.99

$

Usually ships in 3-6 days

0

9

MTD 791-153597

Lower Clamp Assembly

Note: (includes 10)

$

$

Not available

10

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

11

MTD 791-181566

Gearbox Assembly

$

$

Not available

12

MTD 791-180547

Shield Mounting Hardware

$

$

Not available

13

MTD 791-180548

Shield and Blade Assembly

Note: (includes 14)

$

$

Not available

14

MTD 791-180553

Blade Assembly

$14.99

$

Usually ships in 3-6 days

0

15

MTD 791-181457

Outer Spool and Eyelet Assembly

Note: (includes 16)

$39.99

$

In Stock, only 1 left!

0

16

MTD 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

17

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, only 4 left!

0

18

MTD 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

19

MTD 753-04257

Slider

$7.49

$

In Stock, only 1 left!

0

20

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

21

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

22

MTD 791-181462

Plunger

$

$

Not available

23

MTD 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

24

MTD 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

25

MTD 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

26

MTD 791-181467

Foam Seal

$

$

Not available

27

MTD 791-181468B

Bump Head Knob Assembly

Note: (includes 25 & 26)

$

$

Not available

MTD 791-181472

Replacement Line, 0.80 Diameter (Eight - 10 ft lengths)
(Superseded to 791-181460B)

Note: Optional Accessory; Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 791-181460B

Reel and Line Assembly

Note: Optional Accessory; Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Strap Assembly

Note: Optional Accessory; Not Shown

$38.99

$

Usually ships in 3-6 days

0

MTD 791-147543

Ryobi 2-Cycle Oil

Note: Optional Accessory; Not Shown

$

$

Not available
