766r (41BD766G034) - Ryobi String Trimmer Boom & Trimmer Parts Parts Diagram

String Trimmer

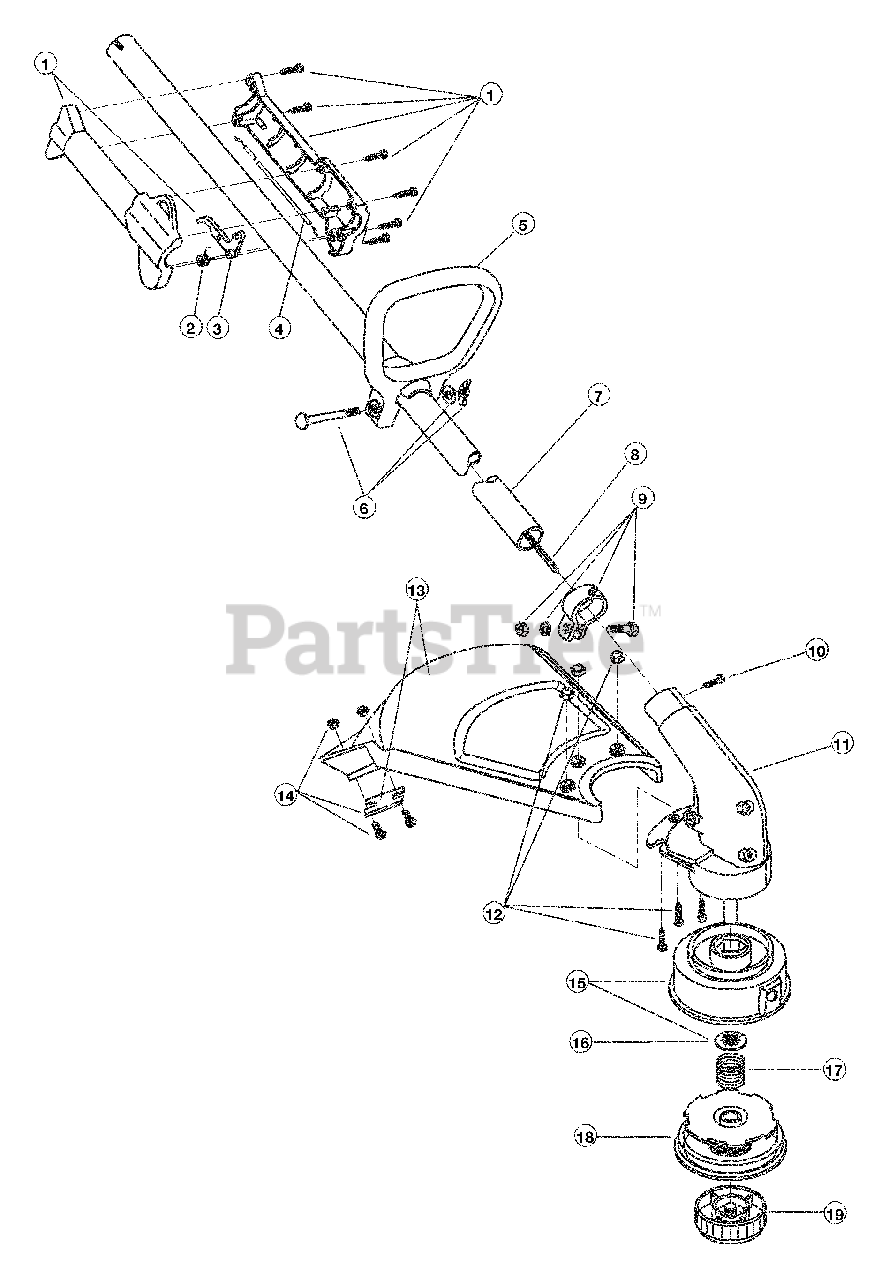

Boom & Trimmer Parts Parts Diagram

  • Title

1

MTD 791-182808

Throttle Housing & Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-182385

Throttle Trigger
(Superseded to 753-04295)

$

$

Not available

4

MTD 791-182068

Throttle Cable Assembly

$20.99

$

In Stock, only 2 left!

0

5

MTD 791-153064

D-Handle

$

$

Not available

6

MTD 791-181587

D-Handle Hardware Assembly

$19.99

$

In Stock, only 1 left!

0

7

MTD 791-181590

Drive Shaft Housing Assembly

$

$

Not available

8

MTD 791-182839

Flexible Drive Shaft
(Superseded to 753-04280)

$81.99

$

Usually ships in 3-6 days

0

9

MTD 791-153597

Lower Clamp Assembly

Note: (includes 10)

$

$

Not available

10

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

11

MTD 791-180549

Gear Box Assembly

Note: (includes 15)

$

$

Not available

12

MTD 791-180547

Shield Mounting Hardware

$

$

Not available

13

MTD 791-180548

Shield and Blade Assembly

Note: (includes 14)

$

$

Not available

14

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

15

MTD 791-153619

Outer Spool Assembly

Note: (includes 16)

$27.99

$

Usually ships in 3-6 days

0

16

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

17

MTD 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

18

MTD 791-610318

Inner Reel
(Superseded to 753-1155)

$22.99

$

In Stock, Qty 20+

0

19

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

MTD 791-610375

Replacement Line, 0.80 Diameter

Note: Optional Accessories; Item Not Shown

$

$

Not available

MTD 791-153577B

Spool & Line Assembly

Note: Optional Accessories; Item Not Shown

$28.99

$

In Stock, only 2 left!

0

MTD 791-682075B

Shoulder Strap Assembly

Note: Optional Accessories; Item Not Shown

$38.99

$

Usually ships in 3-6 days

0

MTD 791-147541

Ryobi 2-Cycle Oil

Note: Optional Accessories; Item Not Shown

$

$

Currently unavailable
