76602 - Toro 60" Titan MAX Zero-Turn Mower (SN: 413000000 - 414299999) Frame Assembly Parts Diagram

60" Titan MAX Zero-Turn Mower

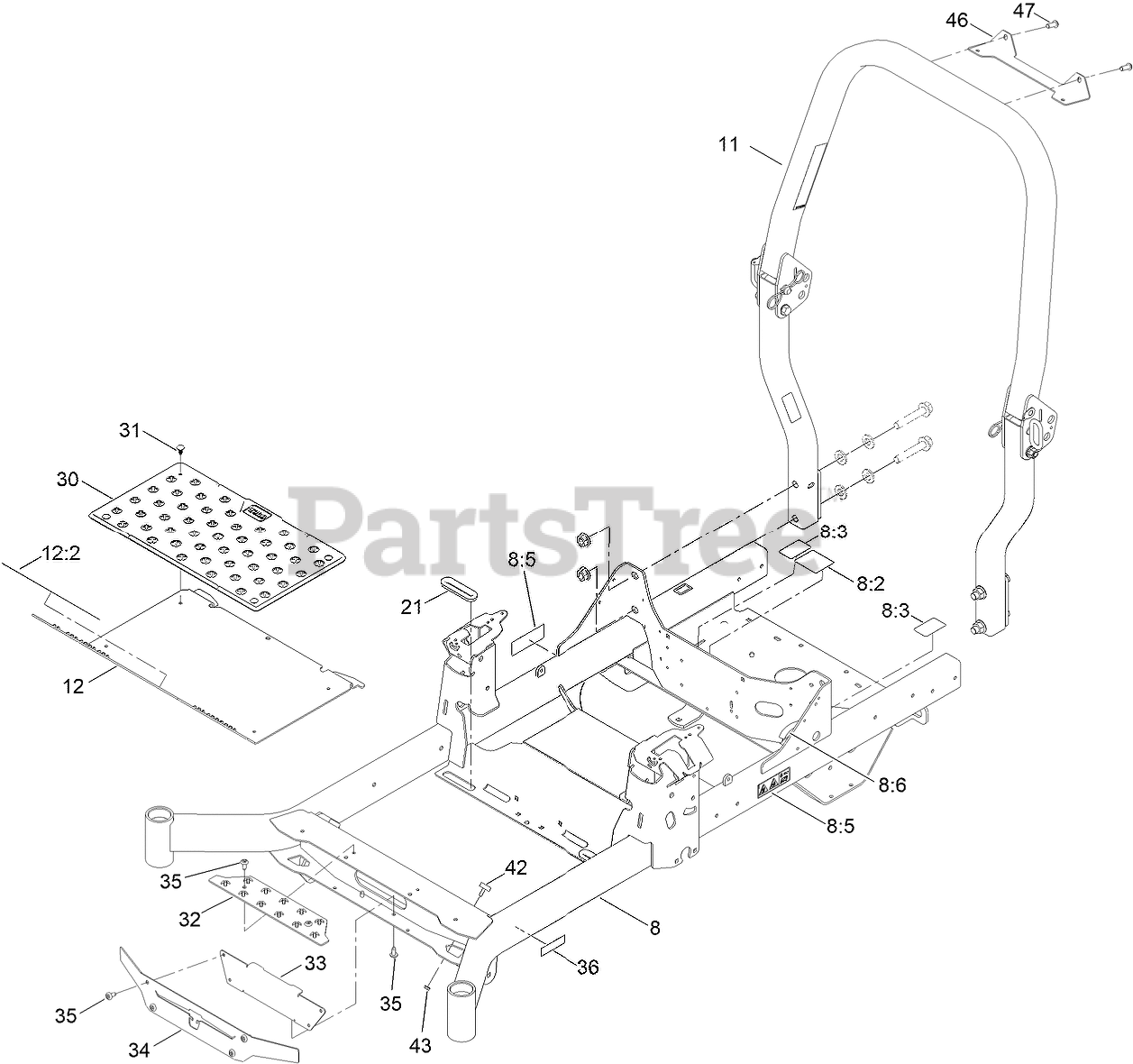

Frame Assembly Parts Diagram

  • Title

8

Toro 145-4601

FRAME-60 [W/DECALS]

$

$

Currently unavailable

8:2

Toro 109-6014

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 4 left!

0

8:3

Toro 116-8588

DECAL-RELEASE, DRIVE

$2.99

$

Usually ships in 3-6 days

0

8:5

Toro 126-4363

DECAL-WARNING

$18.99

$

Usually ships in 3-6 days

0

8:6

Toro 127-6618

STRIP-SEAL

$6.49

$

Usually ships in 3-6 days

0

11

Toro 144-1848

ASM-ROPS

$633.99

$

Usually ships in 3-6 days

0

12

Toro 145-4602

PAN-FLOOR ASM [SERVICE]

$

$

Currently unavailable

12:2

Toro 126-8383

DECAL-DANGER

$9.49

$

In Stock, only 1 left!

0

21

Toro 126-7065

GROMMET-RUBBER

$5.49

$

Usually ships in 3-6 days

0

30

Toro 144-1961

MAT-FLOOR

$49.99

$

Usually ships in 3-6 days

0

31

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

32

Toro 144-1883-03

PLATE-STEP

$19.99

$

Usually ships in 3-6 days

0

33

Toro 144-1884-01

PLATE-BACKER

$20.99

$

Usually ships in 3-6 days

0

34

Toro 144-1885-03

PLATE-FASCIA

$27.99

$

Usually ships in 3-6 days

0

35

Toro 138-9753

SCREW

$1.49

$

In Stock, only 3 left!

0

36

Toro 140-2099

DECAL

$1.99

$

Usually ships in 3-6 days

0

42

Toro 138-2662

BUMPER-RUBBER

$22.99

$

Usually ships in 3-6 days

0

43

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

46

Toro 145-0568-03

BRACKET-LIGHT

$29.99

$

Usually ships in 3-6 days

0

47

Toro 3274-94

SCREW-HSBH

$3.49

$

Usually ships in 3-6 days

0
