76602 - Toro 60" Titan MAX Zero-Turn Mower (SN: 413000000 - 414299999) Console and Guard Assembly Parts Diagram

60" Titan MAX Zero-Turn Mower

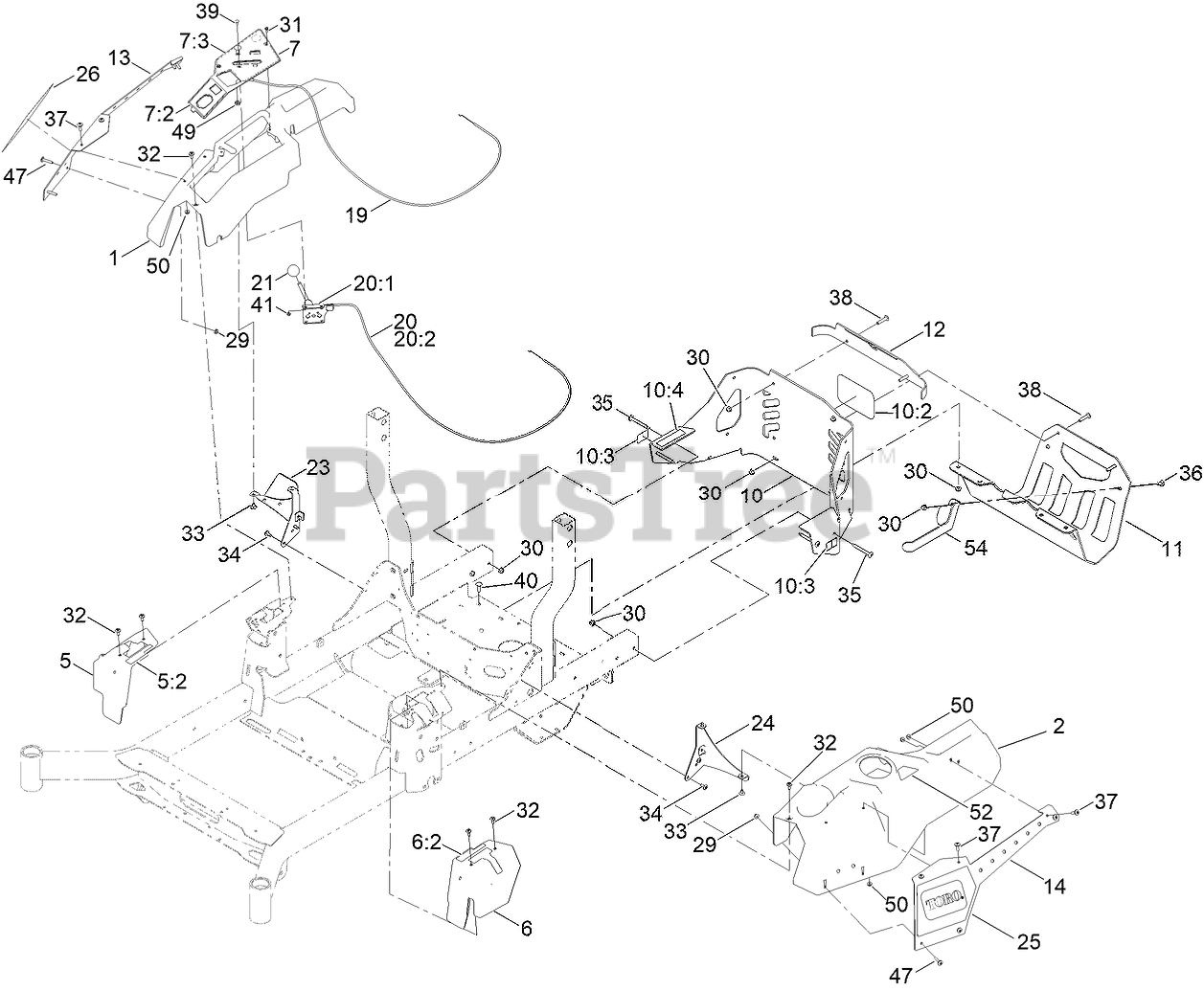

Console and Guard Assembly Parts Diagram

  • Title

1

Toro 126-4983

CONSOLE-RH

$75.99

$

Usually ships in 3-6 days

0

2

Toro 126-4984

CONSOLE-LH

$86.99

$

Usually ships in 3-6 days

0

5

Toro 126-7371

COVER-CONTROL, MOTION (RH)

$26.99

$

Usually ships in 3-6 days

0

5:2

Toro 126-6183

DECAL-CONTROL, MOTION (RH)

$

$

Not available

6

Toro 126-7372

COVER-CONTROL, MOTION (LH)

$26.99

$

Usually ships in 3-6 days

0

6:2

Toro 126-6194

DECAL-CONTROL, MOTION (LH)

$5.49

$

Usually ships in 3-6 days

0

7

Toro 145-4635

CONTROL PANEL ASM

$113.99

$

Usually ships in 0 days

0

7:2

Toro 126-9115

DECAL-PANEL, CONTROL

$7.49

$

Usually ships in 3-6 days

0

7:3

Toro 145-4618

DECAL - PANEL CONTROL

$16.99

$

Usually ships in 3-6 days

0

10

Toro 139-3643

REAR GUARD ASM

$278.99

$

Usually ships in 3-6 days

0

10:2

Toro 99-4693

DECAL

$25.99

$

In Stock, only 1 left!

0

10:3

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

10:4

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

11

Toro 135-5084-03

GUARD-MUFFLER [BLACK]

$173.99

$

Usually ships in 3-6 days

0

12

Toro 139-3644-01

TRIM-UPPER REAR

$40.99

$

Usually ships in 3-6 days

0

13

Toro 136-1745-03

COVER, POD RH

$41.99

$

Usually ships in 3-6 days

0

14

Toro 136-1746-03

COVER-LH

$41.99

$

Usually ships in 3-6 days

0

19

Toro 144-2647

CABLE-CHOKE CONTROL

$39.99

$

In Stock, only 1 left!

0

20

Toro 110-5727

THROTTLE CONTROL ASM

$88.99

$

In Stock, only 3 left!

0

20:1

Toro 112-2334

LEVER-THROTTLE

$82.99

$

Usually ships in 3-6 days

0

20:2

Toro 110-5728

See Supercession: 110-5727
(Superseded to 110-5727)

$88.99

$

In Stock, only 3 left!

0

21

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 6

0

23

Toro 126-9945

SUPPORT-CONSOLE, RH

$26.99

$

Usually ships in 3-6 days

0

24

Toro 126-5532-03

BRACKET-CONSOLE, LH

$12.99

$

Usually ships in 3-6 days

0

25

Toro 144-1967

DECAL-PLATE, LH

$20.99

$

Usually ships in 3-6 days

0

26

Toro 144-1966

DECAL-PLATE, RH

$20.99

$

Usually ships in 3-6 days

0

29

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

31

Toro 117-5036

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

32

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

33

Toro 126-5544

SCREW-TORX

$1.49

$

In Stock, Qty 8

0

34

Toro 126-6266

SCREW-TORX

$1.49

$

In Stock, only 2 left!

0

35

Toro 126-6267

SCREW-TORX

$2.99

$

Usually ships in 3-6 days

0

36

Toro 126-6268

SCREW-TORX

$1.49

$

In Stock, Qty 5

0

37

Toro 126-6269

SCREW-TRUSS

$1.49

$

Usually ships in 3-6 days

0

38

Toro 126-7439

SCREW-TORX

$2.99

$

In Stock, only 1 left!

0

39

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

40

Toro 3230-22

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

41

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

47

Toro 126-8232

SCREW-TRUSS

$1.99

$

Usually ships in 3-6 days

0

49

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

50

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

52

Toro 126-9939

DECAL-FILL, FUEL

$5.49

$

Usually ships in 3-6 days

0

54

Toro 144-1971-03

BRACKET-GUARD, MUFFLER

$

$

Currently unavailable
