76601 - Toro 60" Titan MAX Zero-Turn Mower (SN: 415074044 - 415266999) LH Transaxle Assembly No. 135-0140 Parts Diagram

60" Titan MAX Zero-Turn Mower

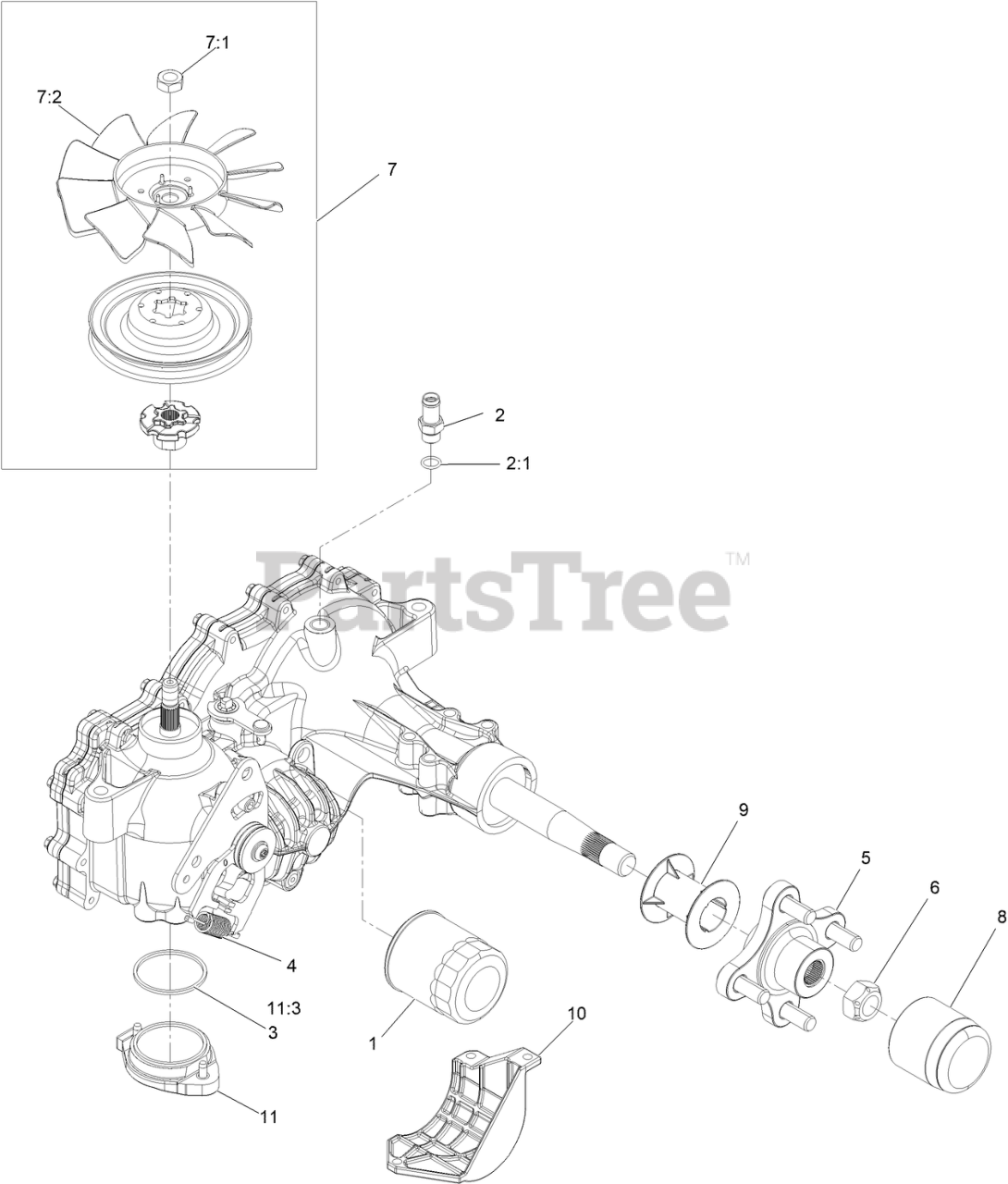

LH Transaxle Assembly No. 135-0140 Parts Diagram

  • Title

1

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, only 4 left!

0

2

Toro 109-3278

ADAPTER-STRAIGHT

$124.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

3

Toro 109-3540

O RING-SEAL

$6.49

$

In Stock, Qty 6

0

4

Toro 109-5592

SPRING-EXTENSION

$17.99

$

In Stock, only 2 left!

0

5

Toro 116-3872

HUB-OFFSET

$69.99

$

In Stock, only 1 left!

0

6

Toro 109-3536

NUT-HUB

$22.99

$

Usually ships in 3-6 days

0

7

Toro 135-7347

FAN AND PULLEY KIT

$95.99

$

In Stock, only 1 left!

0

7:1

Toro 116-9714

NUT-HJ

$5.49

$

In Stock, only 4 left!

0

7:2

Toro 126-0226

FAN

$47.99

$

In Stock, only 3 left!

0

8

Toro 116-6214

CAP-AXLE, LONG

$17.99

$

In Stock, only 1 left!

0

9

Toro 116-6213

TUBE-AXLE

$12.99

$

In Stock, only 1 left!

0

10

Toro 120-7979

GUARD-FILTER, LH

$34.99

$

In Stock, only 1 left!

0

11

Toro 114-8465

CHARGE KIT

$110.99

$

In Stock, only 1 left!

0

11:3

Toro 109-3540

O RING-SEAL

$6.49

$

In Stock, Qty 6

0

99

Toro 135-3604

BRAKE SHAFT SEAL KIT

$167.99

$

Usually ships in 3-6 days

0

99

Toro 109-3537

SEAL KIT
(Superseded to 140-8351)

Note: Not illustrated

$90.99

$

In Stock, Qty 6

0
