76601 - Toro 60" Titan MAX Zero-Turn Mower (SN: 409103364 - 410399999) Engine Assembly Parts Diagram

60" Titan MAX Zero-Turn Mower

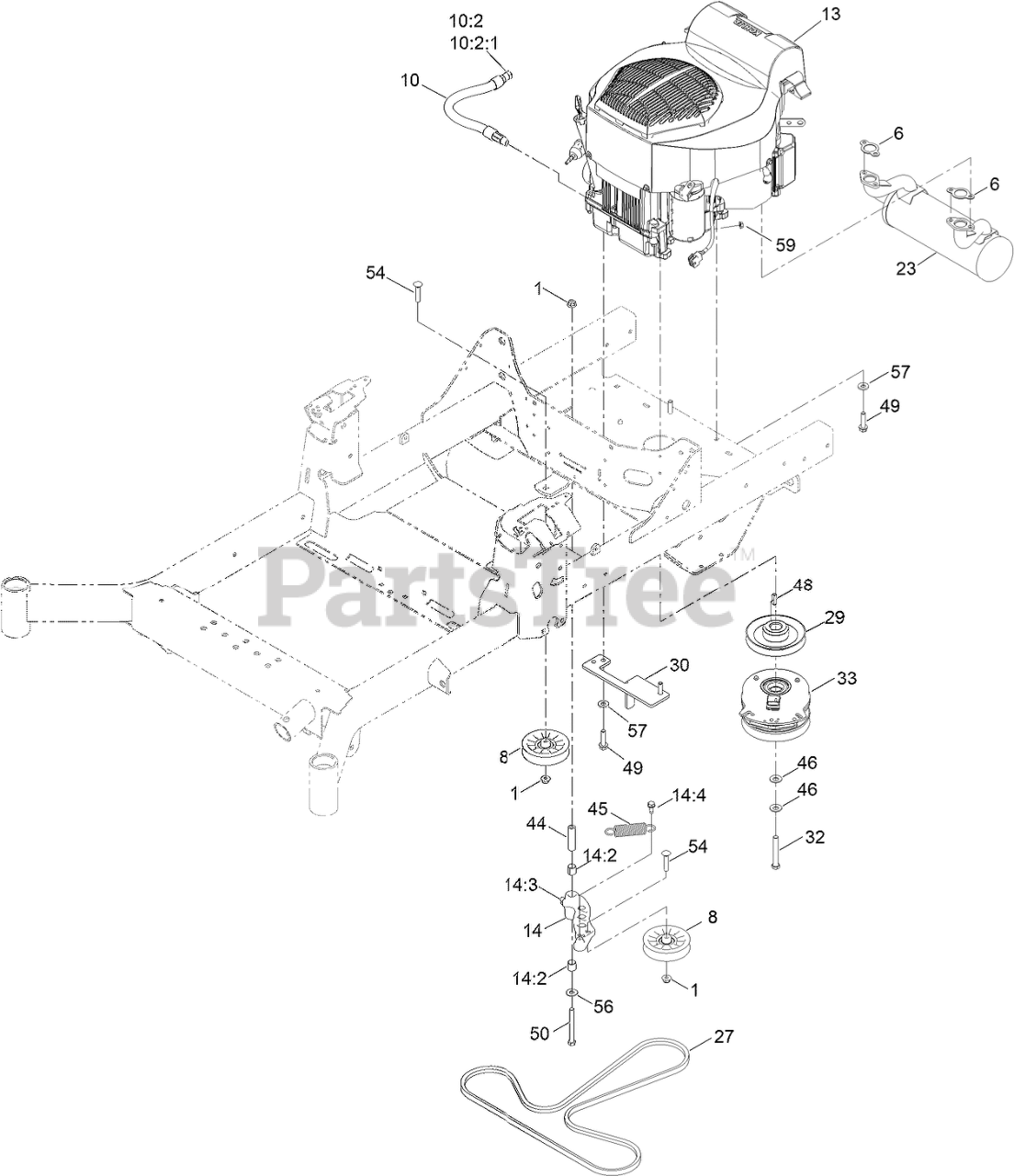

Engine Assembly Parts Diagram

  • Title
1

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 1-653291

See Supercession: 110-6697
(Superseded to 110-6697)

$

$

Not available

8

Toro 116-2456

PULLEY-FLAT IDLER

$23.99

$

In Stock, Qty 20+

0

10

Toro 116-5108

OIL DRAIN HOSE ASM

Note: Torque to 17-23 ft-lb

$38.99

$

In Stock, only 2 left!

0

10:2

Toro 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, Qty 5

0

10:2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

13

ENGINE-KOHLER KT745

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

13

ENGINE-KOHLER KT745

Note: Not serviced separately

$

$

Not available

14

Toro 126-0973

IDLER ARM ASM

$90.99

$

In Stock, only 2 left!

0

14:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

14:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

14:4

Toro 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

23

Toro 126-4359

MUFFLER-KOHLER AES

$153.99

$

Usually ships in 3-6 days

0

27

Toro 126-5993

BELT-V
(Superseded to 126-5993-SL)

$50.99

$

In Stock, Qty 20+

0

29

Toro 135-0134

SHEAVE-ENGINE

$65.99

$

In Stock, only 1 left!

0

30

Toro 126-6687-03

ANCHOR-CLUTCH

$26.99

$

Usually ships in 3-6 days

0

32

Toro 126-7198

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$18.99

$

In Stock, only 1 left!

0

33

Toro 127-3410

CLUTCH-PTO

$387.99

$

In Stock, only 3 left!

0

44

Toro 1-603384

BUSHING-PIVOT, IDLER

$13.99

$

In Stock, Qty 20+

0

45

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, Qty 20+

0

46

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

48

$2.49

$

In Stock, Qty 20+

0

49

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

50

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

54

Toro 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

56

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

57

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

59

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0
