76601 - Toro 60" Titan MAX Zero-Turn Mower (SN: 400000000 - 409103363) 60in Deck Assembly Parts Diagram

60" Titan MAX Zero-Turn Mower

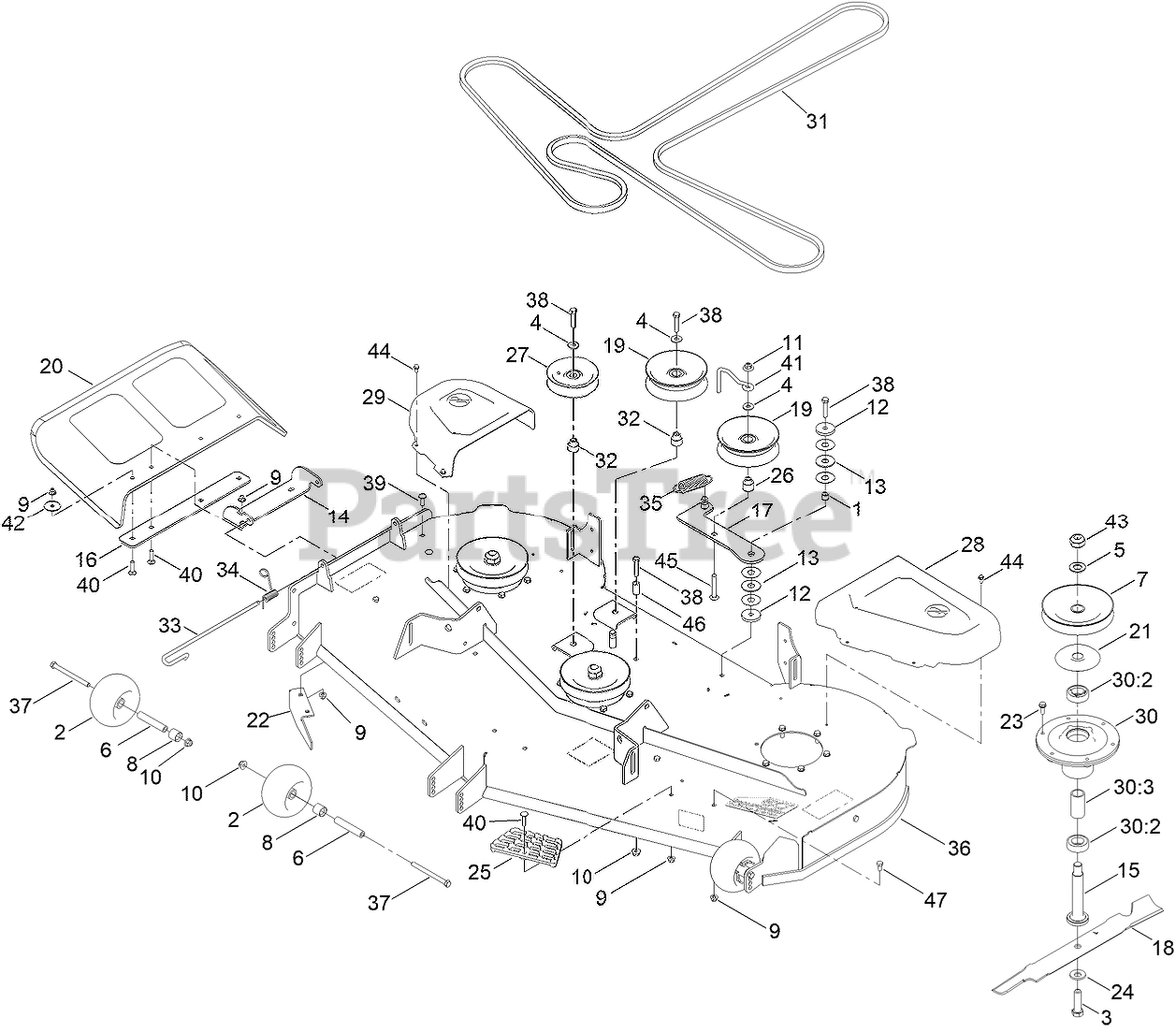

60in Deck Assembly Parts Diagram

  • Title

1

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

2

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 8

0

3

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

4

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 11

0

5

Toro 92-5836

WASHER

$5.99

$

In Stock, only 1 left!

0

6

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

7

Toro 135-0363

SHEAVE-DRIVE, BLADE

$58.99

$

In Stock, only 2 left!

0

8

Toro 104-0892

SPACER-AXLE, REAR

$5.49

$

Usually ships in 3-6 days

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

13

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 9

0

14

Toro 114-1648-03

BRACKET-DEFLECTOR, UPPER

$60.99

$

Usually ships in 3-6 days

0

15

Toro 115-2642

SHAFT-SPINDLE

$52.99

$

In Stock, only 2 left!

0

16

Toro 115-5048-03

PLATE-DEFLECTOR

$44.99

$

Usually ships in 3-6 days

0

17

Toro 115-5054

ARM-IDLER

$72.99

$

In Stock, only 2 left!

0

18

Toro 115-9649

BLADE-HI FLO, 20.5"

$

$

Currently unavailable

19

Toro 116-4669

IDLER-PULLEY, FLAT

$79.99

$

In Stock, Qty 20+

0

20

Toro 117-1270

DEFLECTOR

$78.99

$

In Stock, only 1 left!

0

21

Toro 117-7210

SHIELD-BEARING

$10.99

$

In Stock, only 2 left!

0

22

Toro 119-3388-03

BAFFLE-CUTOFF

$26.99

$

Usually ships in 3-6 days

0

23

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

24

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, only 3 left!

0

25

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

26

Toro 126-7684

BUSHING-IDLER

$3.49

$

In Stock, Qty 9

0

27

Toro 132-4718

PULLEY-IDLER, FLAT

$33.99

$

In Stock, Qty 16

0

28

Toro 133-9282

COVER-BELT, LH

$22.99

$

In Stock, only 1 left!

0

29

Toro 133-9283

COVER-BELT, RH

$19.99

$

In Stock, only 1 left!

0

30

Toro 120-5477

SPINDLE ASM
(Superseded to 139-2357)

$102.99

$

In Stock, only 2 left!

0

30:2

Toro 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

30:3

Toro 115-2641

SPACER-BEARING

$12.99

$

In Stock, only 2 left!

0

31

Toro 135-1873

BELT-DECK DRIVE

$148.99

$

In Stock, only 1 left!

0

32

Toro 138-7227

BUSHING-IDLER

$2.99

$

In Stock, Qty 20+

0

33

Toro 138-7231

PIN-CHUTE

$9.49

$

Usually ships in 3-6 days

0

34

Toro 138-7232

SPRING-TORSION

$2.99

$

In Stock, only 2 left!

0

35

Toro 139-3616

SPRING - EXTENSION

$11.99

$

In Stock, Qty 20+

0

36

Toro 144-1895

DECK ASM - 60

$2359.99

$

Usually ships in 3-6 days

0

37

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

38

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

40

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

41

Toro 144-1980

BELT GUIDE - IDLER

$5.99

$

In Stock, only 1 left!

0

42

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

43

Toro 3296-67

NUT-LOCK, NI

$5.49

$

In Stock, only 4 left!

0

44

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

45

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 14

0

46

Toro 138-7230

SPACER-FENDER

$5.49

$

Usually ships in 3-6 days

0

47

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 9

0
