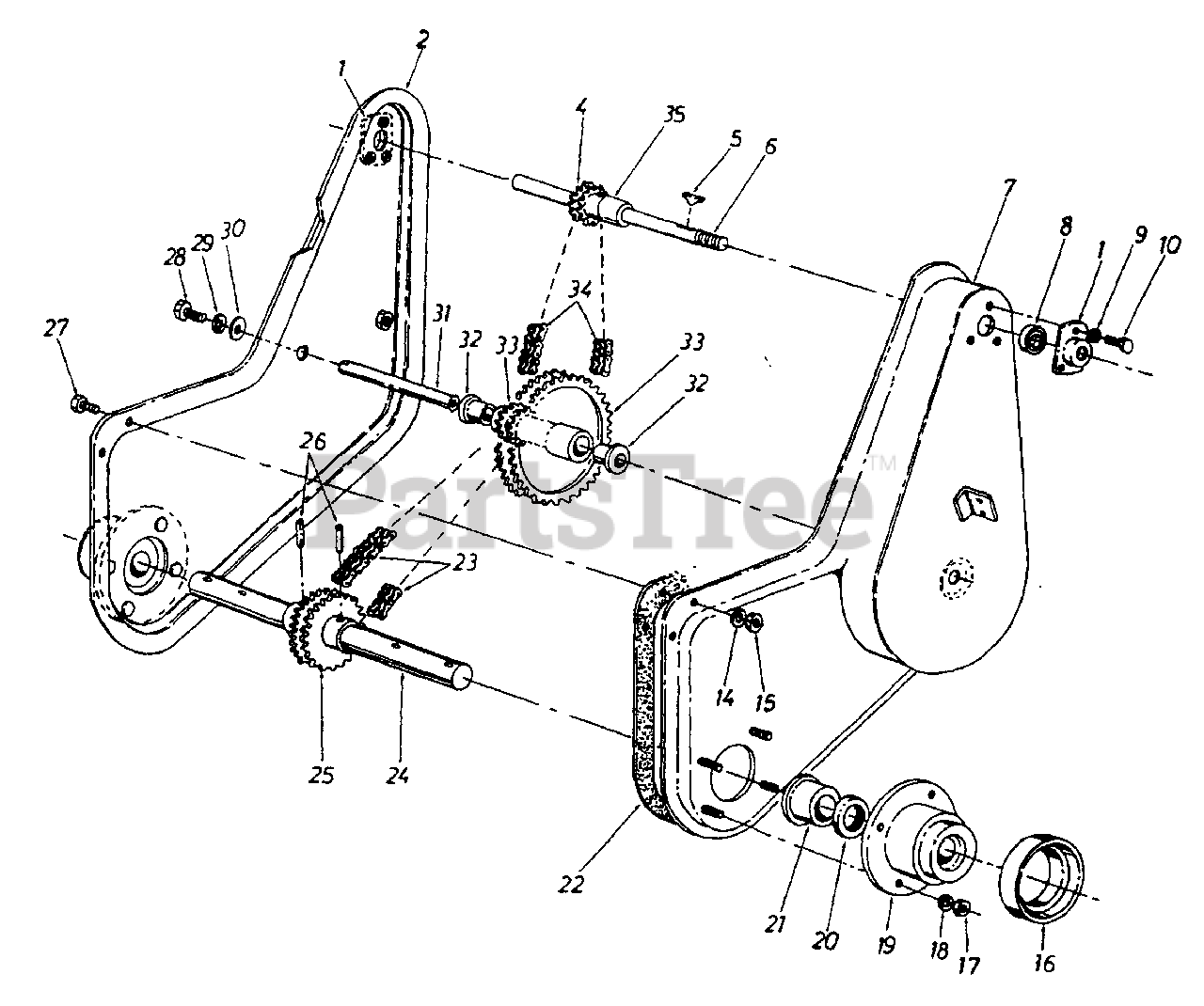

766 (190-766-000) - Yard-Man Tiller Attachment Chain Case Assembly Parts Diagram

Tiller Attachment

Chain Case Assembly Parts Diagram

  • Title

1

Cub Cadet 05034

Bearing Housing 1.375" Dia.
(Superseded to 05034A)

$

$

Not available

2

Cub Cadet 14895

Housing Assembly - R.H.
(Superseded to 14895-0637)

Variations

Cub Cadet 14895-0498

HOUSING (RH) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

UNKNOWN

$

$

Not available

5

Cub Cadet 714-0136

#6 Hi-Pro Key 5/32" x .62" Lg.

$

$

Not available

6

Cub Cadet 14892

Input Shaft Assembly
(Superseded to 94892)

$

$

Not available

7

Cub Cadet 14894

Housing Assembly - L.H.

Variations

Cub Cadet 14894-0498

HOUSING (LH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14894-0637

HOUSING (LH) - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 741-0155

Ball Bearing .62" I.D. x 1.38" O.D.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

9

Cub Cadet 736-0329

L-Wash. 1/4" I.D."
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

10

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0329

L-Wash. 1/4" 1.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

15

Cub Cadet 712-0287

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet 04973

Dust Cap Cover

$

$

Not available

17

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

18

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 04530

Cast Bearing Housing
(Superseded to 94530)

$

$

Not available

20

Cub Cadet 721-0117

Oil Seal

$

$

Not available

21

Cub Cadet 748-0194

Flange Bearing 1.25" I.D. x 1.75" O.D.

$32.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 721-0119

Gasket

$

$

Not available

23

Cub Cadet 713-0150

Roller Chain #40-2 x 34.0" Lg.
(Superseded to 913-0150)

$110.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 711-0506

Tine Shaft

$

$

Not available

25

Cub Cadet 717-0189

Double Sprocket T24-2 Teeth 1/2" Pitch

$

$

Not available

26

Cub Cadet 715-0125

Spiral Pin 3/8" Dia. x 2.00" Lg.
(Superseded to 915-0125)

$12.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0258

Hex Bolt 1/4-20 x,62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0195

Fl-Wash. 5/16" I.D.

$

$

Not available

31

Cub Cadet 711-0504

Sprocket Shaft

$

$

Not available

32

Cub Cadet 748-0855

Flange Bearing .62" I.D. x .75" O.D.

$

$

Not available

33

Cub Cadet 04529

Double Sprocket Assembly

$

$

Not available

34

Cub Cadet 713-0149

Roller Chain #35-2 x 36.75" Lg

$

$

Not available

35

Cub Cadet 748-0192

Spacer 5/8" I.D. x 7/8" O.D.

$7.99

$

Usually ships in 3-6 days

0
