76511 - Toro 54" Titan MyRide Zero-Turn Mower (SN: 415400000 - 417236211) Engine and Muffler Assembly Parts Diagram

54" Titan MyRide Zero-Turn Mower

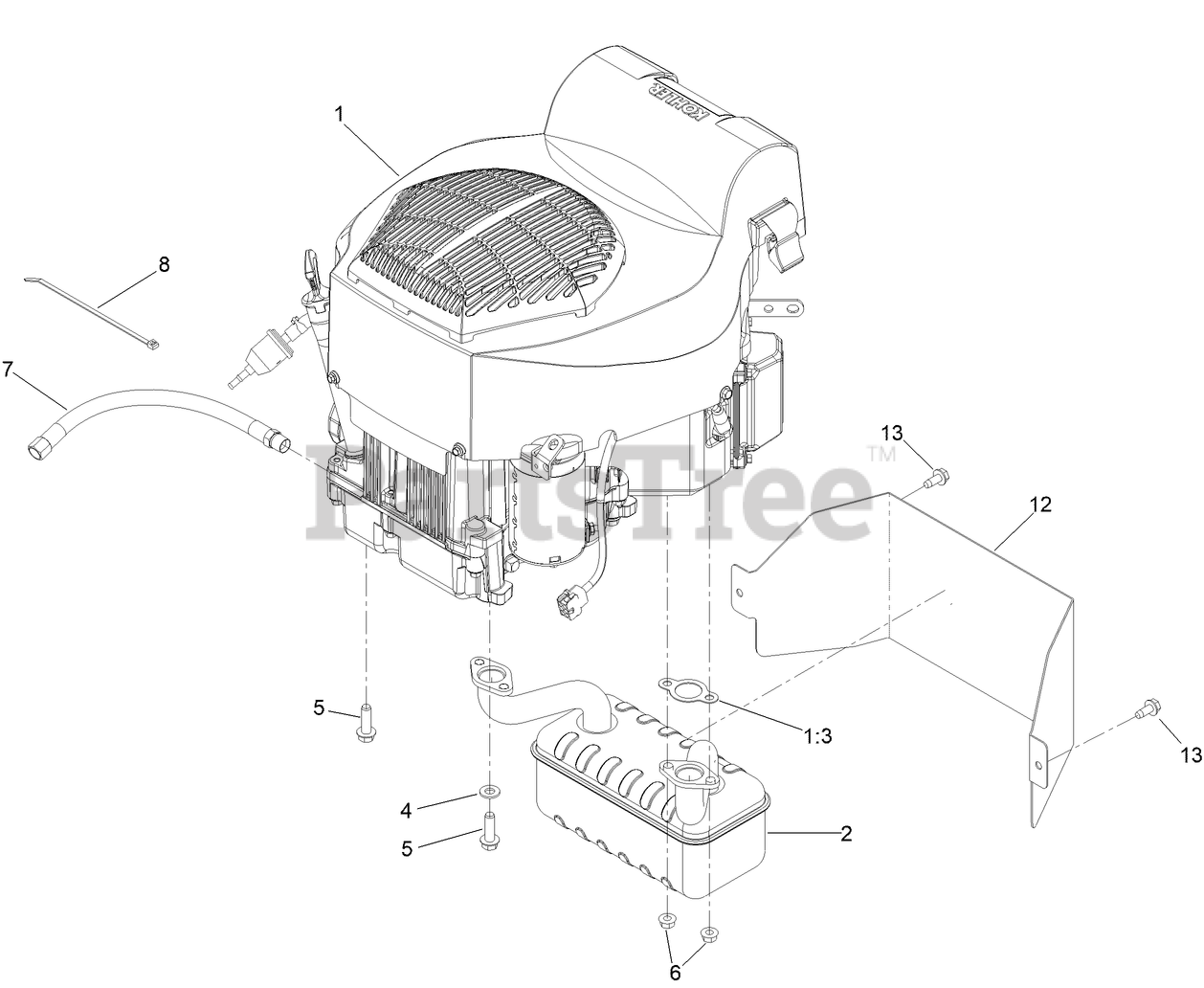

Engine and Muffler Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER KT745

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER KT745

Note: This is a Kohler part. Please use the Kohler Engine catalog.

$

$

Not available

1:3

Toro 110-6697

GASKET-EXHAUST

$

$

Not available

1:4

Toro 281-1

PLUG-PIPE, SQH

Note: Not illustrated

$5.49

$

Usually ships in 3-6 days

0

2

Toro 147-7707

MUFFLER

$120.99

$

Usually ships in 0 days

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 32144-109

SCREW-THD

$4.99

$

Usually ships in 3-6 days

0

6

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 9

0

7

Toro 117-1261

HOSE-DRAIN, OIL

$29.99

$

In Stock, only 2 left!

0

8

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

12

Toro 161-6221-03

HEAT SHIELD - MUFFLER

$33.99

$

Usually ships in 0 days

0

13

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
