7600237 - Snapper Single Grass Catcher Single Catcher Parts Diagram

Single Grass Catcher

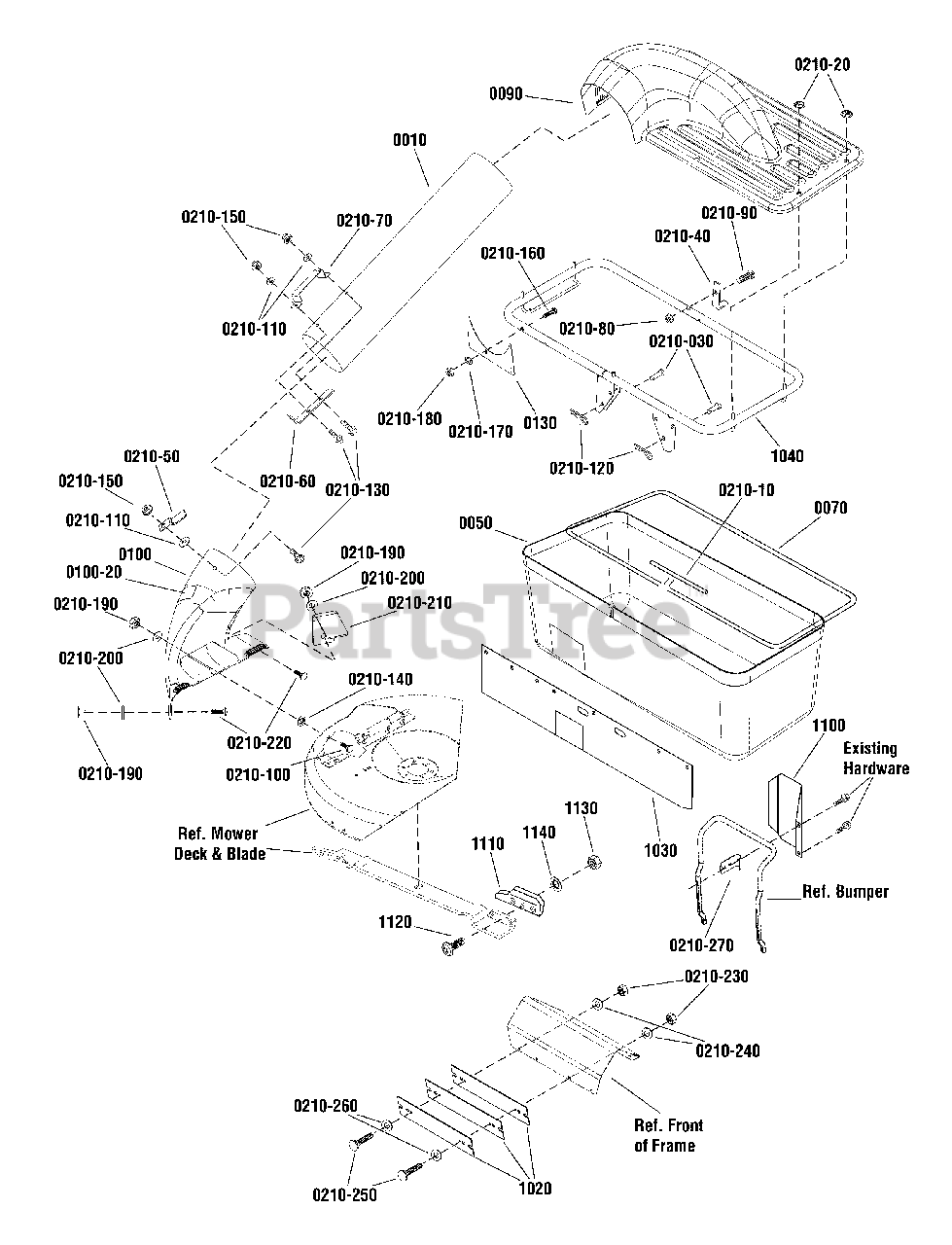

Single Catcher Parts Diagram

  • Title

0010

Snapper 7027915YP

Tube, Grass

$145.99

$

Usually ships in 2-12 days

0

0050

Snapper 7019251YP

Bag, Grass
(Superseded to 7024819YP)

$82.99

$

Usually ships in 2-12 days

0

0070

Snapper 7057248YP

ROD, Bag

$

$

Not available

0090

Snapper 7104012YP

TOP, Grass Container

$296.99

$

Usually ships in 2-12 days

0

0100

Snapper 7503112YP

DECK ADAPTER ASSEMBLY

Note: (Includes item # 0100-20)

$287.99

$

Usually ships in 2-12 days

0

0100-20

Snapper 7046720SM

DECAL, Warning

$7.99

$

In Stock, only 2 left!

0

0130

Snapper 7063287BMYP

SHIELD, Grass Catcher

$

$

Not available

--

Snapper 7503365

HARDWARE BAG

Note: (Not a serviceable part)

$

$

Currently unavailable

0210-10

Snapper 7012556YP

CONNECTOR, 1/2 X 3

$7.49

$

In Stock, only 2 left!

0

0210-20

Snapper 7029840YP

PALNUT, 5/16
(Superseded to 704315)

$4.49

$

Usually ships in 2-12 days

0

0210-30

Snapper 704029

PIN, Clevis, 5/16 X 1.68

$4.49

$

In Stock, only 2 left!

0

0210-40

Snapper 7031725YP

LATCH

$5.99

$

Usually ships in 2-12 days

0

0210-50

Snapper 7031951YP

LATCH, Chute

$6.49

$

In Stock, only 2 left!

0

0210-60

Snapper 7031952YP

BASE, Handle Tube

$7.99

$

In Stock, only 2 left!

0

0210-70

Snapper 7037745YP

HANDLE, Tube

$11.99

$

In Stock, only 2 left!

0

0210-80

Snapper 703937

NUT, Ny Lock, #10-32

$3.49

$

In Stock, only 4 left!

0

0210-90

Snapper 7090532YP

SCREW, Machined 10F X 1 3/8, GR2
(Superseded to 704316)

$4.99

$

In Stock, only 2 left!

0

0210-100

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0210-110

Snapper 703462

WASHER, Internal Tooth, 1/4

$4.49

$

In Stock, Qty 5

0

0210-120

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0210-130

Snapper 703576

BOLT, Carriage, 1/4-20 X 3/4, GR5
(Superseded to 703101)

$4.49

$

In Stock, only 3 left!

0

0210-140

Snapper 703297

RETAINER, Pushnut, 5/16 X 5/8

$3.99

$

In Stock, Qty 8

0

0210-150

Snapper 703127

NUT, Hex,1/4-20, GR5

$3.49

$

In Stock, Qty 15

0

0210-160

Snapper 7090909YP

CAPSCREW, HexHead, 1/4-20 X 1 1/2, GR5
(Superseded to 5025010X12SM)

$3.49

$

In Stock, only 1 left!

0

0210-170

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0210-180

Snapper 7091705SM

NUT, Lock, 1/4
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days

0

0210-190

Snapper 703902

NUT, Nylock, 5/16

$3.99

$

In Stock, Qty 20+

0

0210-200

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, Qty 14

0

0210-210

Snapper 7301385BMYP

BRACKET, Mounting

$25.99

$

Usually ships in 2-12 days

0

0210-220

Snapper 703800

BOLT, Carriage, Short Neck, 5/16-18 x 1

$3.99

$

In Stock, Qty 18

0

0210-230

Snapper 703457

NUT, Hex, 3/8-16, GR5

$4.49

$

In Stock, only 2 left!

0

0210-240

Snapper 706162

WASHER, Lock, 3/8

$3.49

$

Usually ships in 2-12 days

0

0210-250

Snapper 704289

CAPSCREW, 3/8-16 x 1 3/4
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 7

0

0210-270

Snapper 7031954YP

SUPPORT, Bumper

$13.99

$

Usually ships in 2-12 days

0

0210-260

Snapper 7021746YP

WASHER

$3.99

$

In Stock, Qty 9

0

1020

Snapper 7072416BMYP

WEIGHT, Front

$

$

Currently unavailable

1030

Snapper 7016108YP

SKIRT, Bagger Dust

$42.99

$

In Stock, only 2 left!

0

1040

Snapper 7400336BMYP

FRAME, Bagger

$350.99

$

Usually ships in 2-12 days

0

1100

Snapper 7071677BMYP

GUARD, Muffler

$

$

Currently unavailable

1110

Snapper 7034468BMYP

AIR LIFT

$

$

Not available

1120

Snapper 7090228SM

SCREW, Machine 5/16-24 X 21/32

$5.99

$

In Stock, Qty 20+

0

1130

Snapper 703331

NUT, Hex 5/16-24

$4.49

$

In Stock, Qty 16

0

1140

Snapper 703587

WASHER, Internal Tooth, 5/16

$4.49

$

In Stock, Qty 20+

0
