7600213 - Simplicity Twin Grass Catcher Twin Catcher Parts Diagram

Twin Grass Catcher

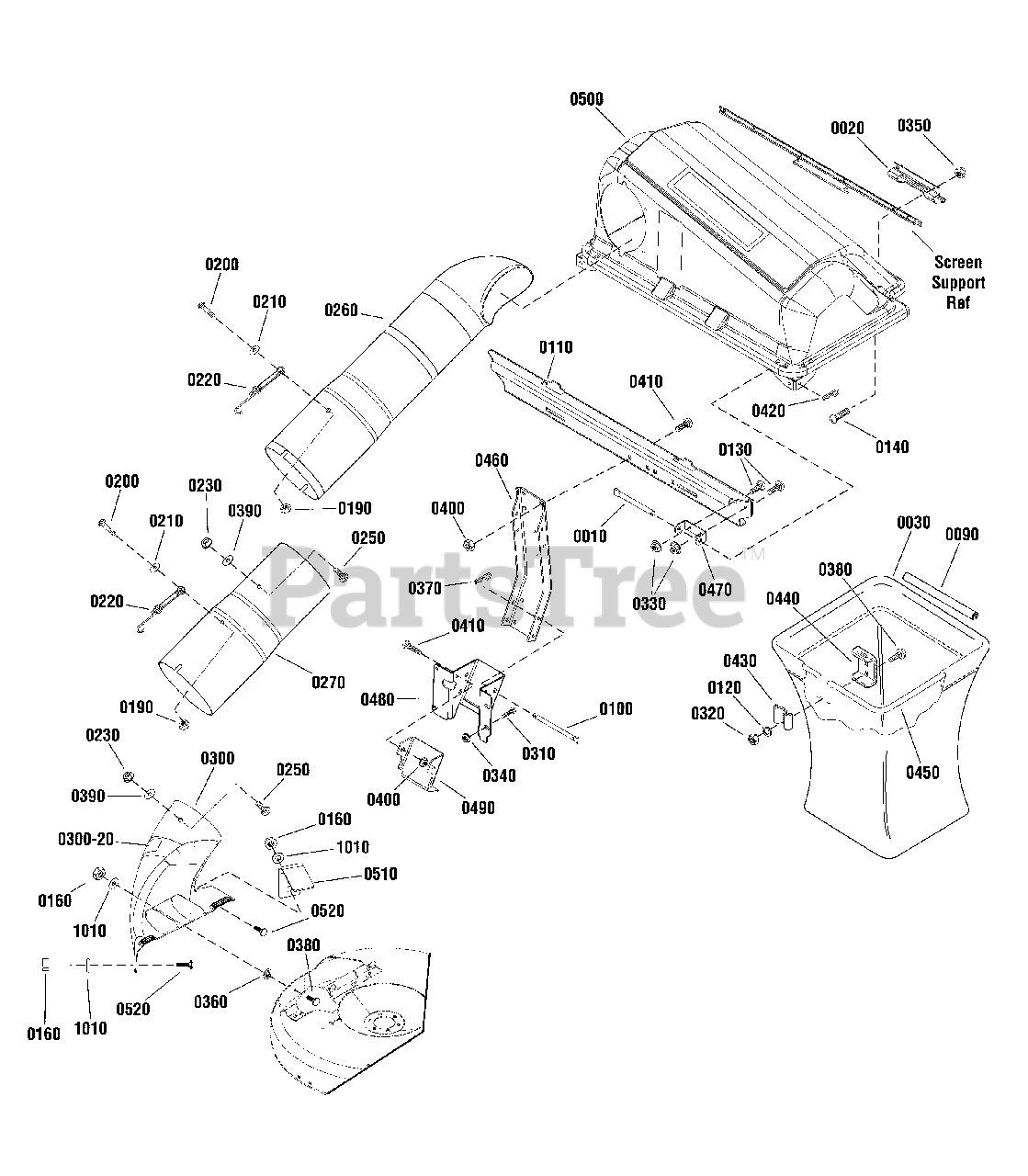

Twin Catcher Parts Diagram

  • Title

0010

Simplicity 720525

PIN, Cover Hinge
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

0020

Simplicity 720537

HANDLE
(Superseded to 054537MA)

$18.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1703764SM

BAG, Grass

$96.99

$

In Stock, Qty 14

0

0090

Simplicity 1733709SM

EDGING

$16.99

$

In Stock, only 2 left!

0

0100

Simplicity 1734229SM

PIN, Hinge

$17.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1736026SM

CROSS SUPPORT

$

$

Not available

0120

Simplicity 1917356SM

LOCKWASHER, Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0130

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

0140

Simplicity 1960404SM

SCREW, Truss Head, 10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

0160

Simplicity 703902

NUT, HEX Nylock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0190

Simplicity 7036404SM

NUT, Weld

$3.49

$

Usually ships in 2-12 days

0

0200

Simplicity 7036415SM

SCREW, Phillips Head, 5/8

$3.99

$

In Stock, only 2 left!

0

0210

Simplicity 7036422SM

WASHER, Flat

$3.99

$

In Stock, only 2 left!

0

0220

Simplicity 7036433SM

STRAP, Mounting

$31.99

$

In Stock, only 1 left!

0

0230

Simplicity 7036543SM

T-NUT, 5/16

$2.99

$

Usually ships in 2-12 days

0

0250

Simplicity 7091833SM

SCREW, Phillips,5/16 x 5/8

$4.49

$

In Stock, only 1 left!

0

0260

Simplicity 7100618SM

TUBE, Upper

$205.99

$

Usually ships in 2-12 days

0

0270

Simplicity 7100701SM

TUBE, Lower

$190.99

$

Usually ships in 2-12 days

0

0300

Simplicity 7105617YP

DECK ADAPTER ASSEMBLY
(Superseded to 7503112YP)

$271.99

$

Usually ships in 2-12 days

0

0300-20

Simplicity 7046720SM

DECAL, Chute Delector

$7.49

$

Usually ships in 2-12 days

0

0310

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 X 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0320

Simplicity 703465

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

0330

Simplicity 703233

NUT, Flange, 1/4-20

$4.49

$

In Stock, Qty 6

0

0340

Simplicity 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0350

Simplicity 703412

NUT, Ny-Lock, 10-24

$4.49

$

In Stock, only 2 left!

0

0360

Simplicity 703297

RETAINER, 5/16 x 5/8

$3.99

$

In Stock, Qty 20+

0

0370

Simplicity 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0380

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0390

Simplicity 703350

WASHER, Flat, 5/16

$4.49

$

In Stock, only 3 left!

0

0400

Simplicity 703793

NUT, Whiz Lock, 3/8-16

$4.49

$

In Stock, Qty 5

0

0410

Simplicity 703815

BOLT, Carriage, Short Neck, 3/8-16 x 1

$4.49

$

In Stock, only 4 left!

0

0420

Simplicity 703796

PIN, Hair

$5.49

$

In Stock, only 1 left!

0

0430

Simplicity 1672023ASM

CLAMP

$11.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1703807ASM

HANGER, Grass Bag

$21.99

$

In Stock, only 2 left!

0

0450

Simplicity 1733491ASM

HOOP, Twin Catcher
(Superseded to 1733491SM)

$146.99

$

In Stock, only 2 left!

0

0460

Simplicity 1734223ASM

SUPPORT, Upright

$111.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1736886BMYP

PIVOT, Hinge

$34.99

$

Usually ships in 2-12 days

0

0480

Simplicity 7301294BMYP

BRACKET, Catcher

$79.99

$

Usually ships in 2-12 days

0

0490

Simplicity 7301377BMYP

BRACKET, Catcher Support

$43.99

$

Usually ships in 2-12 days

0

0500

Simplicity 7106054YP

COVER ASSEMBLY

$826.99

$

Usually ships in 2-12 days

0

0510

Simplicity 7301385BMYP

BRACKET, Mounting

$24.99

$

Usually ships in 2-12 days

0

0520

Simplicity 703800

BOLT, Carriage, 5/16-18 x 1

$3.99

$

In Stock, Qty 7

0

1010

Simplicity 703298

WASHER, 5/16

$4.49

$

In Stock, only 2 left!

0
