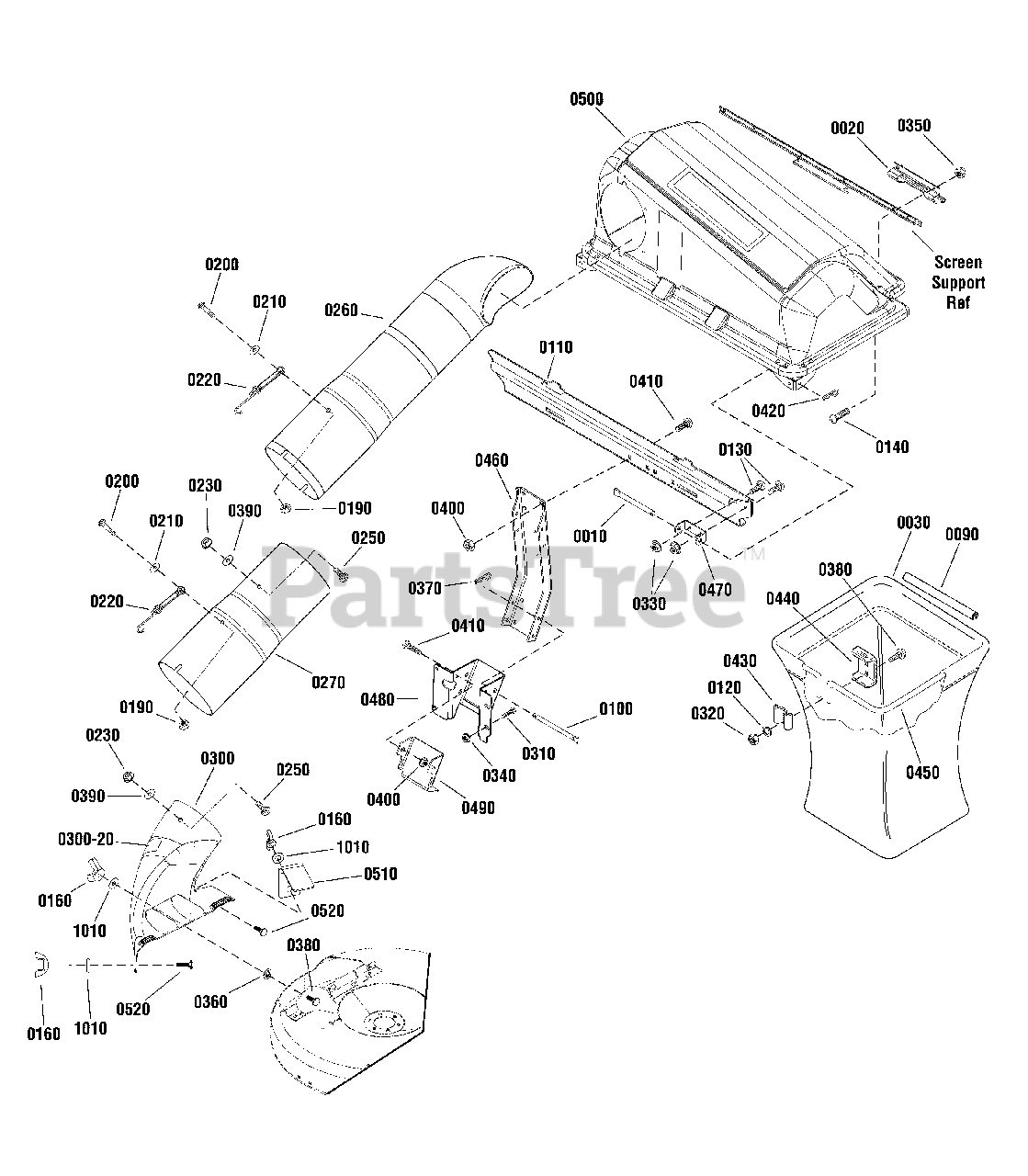

7600192 - Snapper 28" & 33" Twin Bag Grass Catcher Twin Catcher Parts Diagram

28" & 33" Twin Bag Grass Catcher

Twin Catcher Parts Diagram

  • Title

0010

Snapper 720525

PIN, Cover Hinge
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

0020

Snapper 720537

HANDLE
(Superseded to 054537MA)

$18.99

$

Usually ships in 2-12 days

0

0030

Snapper 1703764SM

BAG, Grass

$96.99

$

In Stock, Qty 12

0

0090

Snapper 1733709SM

EDGING

$16.99

$

In Stock, only 2 left!

0

0100

Snapper 1734229SM

PIN, Hinge

$17.99

$

Usually ships in 2-12 days

0

0110

Snapper 1736026SM

CROSS SUPPORT

$

$

Not available

0120

Snapper 1917356SM

LOCKWASHER, Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0130

Snapper 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

0140

Snapper 1960404SM

SCREW, Truss Head, 10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

0160

Snapper 7024085YP

WINGNUT, 5/16
(Superseded to 704320)

$4.99

$

In Stock, Qty 12

0

0190

Snapper 7036404SM

NUT, Weld

$3.49

$

Usually ships in 2-12 days

0

0200

Snapper 7036415SM

SCREW, Phillips Head, 5/8

$3.99

$

In Stock, only 2 left!

0

0210

Snapper 7036422SM

WASHER, Flat

$3.99

$

In Stock, only 2 left!

0

0220

Snapper 7036433SM

STRAP, Mounting

$31.99

$

In Stock, only 1 left!

0

0230

Snapper 7036543SM

NUT, Tee

$2.99

$

Usually ships in 2-12 days

0

0250

Snapper 7091833SM

SCREW, Phillips,5/16 x 5/8

$4.49

$

In Stock, only 1 left!

0

0260

Snapper 7100618YP

TUBE, Upper

$

$

Not available

0270

Snapper 7100701YP

TUBE, Lower

$

$

Not available

0300

Snapper 7503112YP

DECK ADAPTER ASSEMBLY

Note: (Incl. Ref. Nos. 0300-20)

$271.99

$

Usually ships in 2-12 days

0

0300-20

Snapper 7046720SM

DECAL, Danger

$7.49

$

In Stock, only 1 left!

0

0310

Snapper 1921332SM

CAPSCREW, Hex Head, 5/16-18 X 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0320

Snapper 703465

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

0330

Snapper 703233

NUT, Flange, 1/4-20

$4.49

$

In Stock, Qty 5

0

0340

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0350

Snapper 703412

NUT, Ny-Lock, 10-24

$4.49

$

In Stock, only 2 left!

0

0360

Snapper 703297

RETAINER, 5/16 x 5/8

$3.99

$

In Stock, Qty 20+

0

0370

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0380

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0390

Snapper 703350

WASHER, Flat, 5/16

$4.49

$

In Stock, only 1 left!

0

0400

Snapper 703793

NUT, Whiz Lock, 3/8-16

$4.49

$

In Stock, only 3 left!

0

0410

Snapper 703815

BOLT, Carriage, Short Neck, 3/8-16 x 1

$4.49

$

In Stock, only 4 left!

0

0420

Snapper 703796

PIN, Hair

$5.49

$

In Stock, only 1 left!

0

0430

Snapper 1672023ASM

CLAMP

$11.99

$

Usually ships in 2-12 days

0

0440

Snapper 1703807ASM

HANGER, Grass Bag

$21.99

$

In Stock, only 1 left!

0

0450

Snapper 1733491ASM

HOOP, Twin Catcher
(Superseded to 1733491SM)

$146.99

$

In Stock, only 2 left!

0

0460

Snapper 1734223ASM

SUPPORT, Upright

$111.99

$

Usually ships in 2-12 days

0

0470

Snapper 1736886BMYP

PIVOT, Hinge

$34.99

$

Usually ships in 2-12 days

0

0480

Snapper 7301294BMYP

BRACKET, Catcher

$79.99

$

Usually ships in 2-12 days

0

0490

Snapper 7301377BMYP

BRACKET, Catcher Support

$43.99

$

Usually ships in 2-12 days

0

0500

Snapper 7106054YP

COVER ASSEMBLY

$826.99

$

Usually ships in 2-12 days

0

0510

Snapper 7301385BMYP

BRACKET, Mounting

$24.99

$

Usually ships in 2-12 days

0

0520

Snapper 703800

BOLT, Carriage, 5/16-18 x 1

$3.99

$

In Stock, Qty 7

0

1010

Snapper 703298

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0
