7600125 - Murray 42" Clean Sweep Triple Bag Grass Catcher Triple Catcher Parts Diagram

42" Clean Sweep Triple Bag Grass Catcher

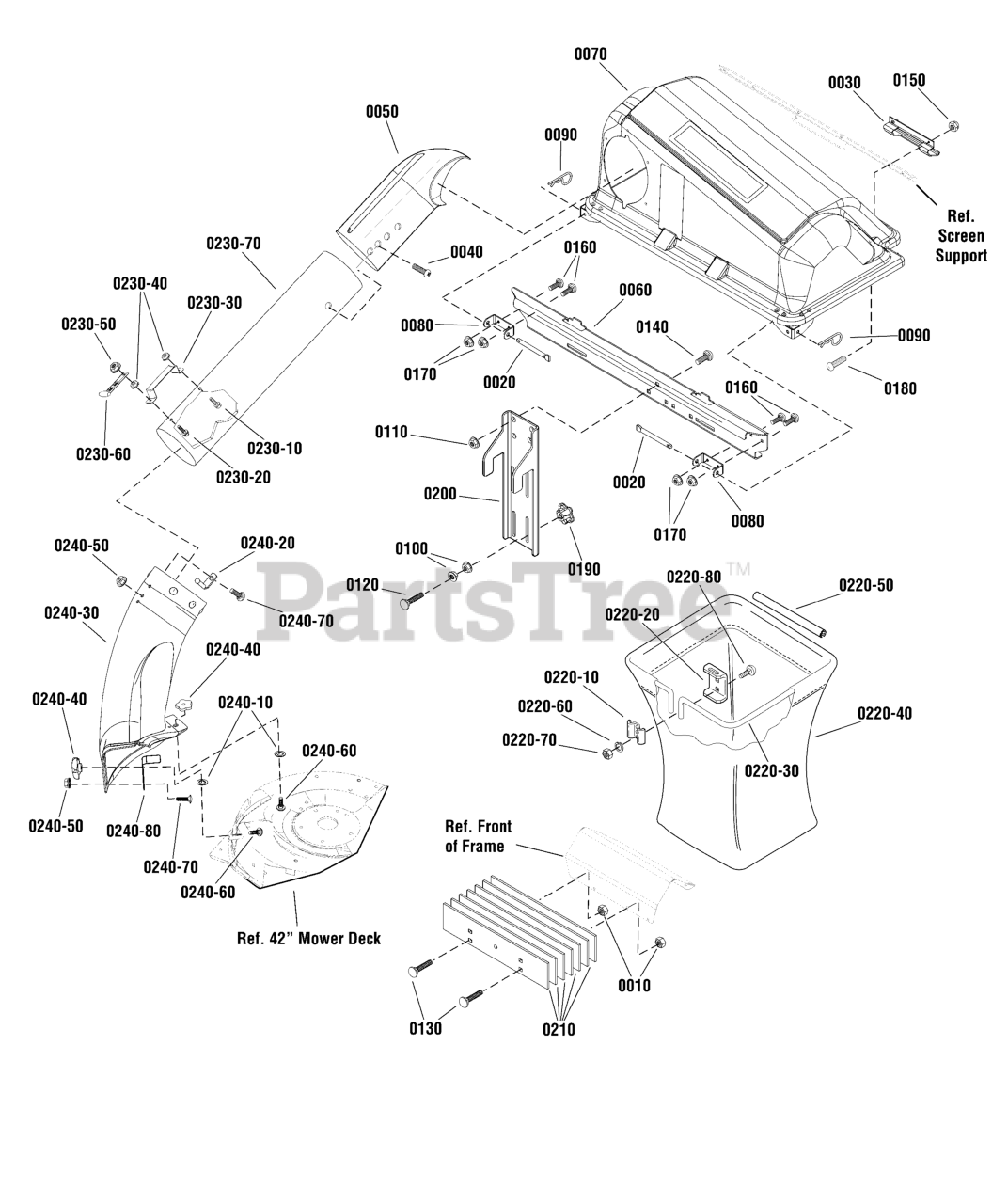

Triple Catcher Parts Diagram

  • Title

0010

Murray 015X88MA

NUT, Hex Flange, 5/16
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0020

Murray 054407ZMA

PIN, Cover Hinge

$14.99

$

In Stock, only 1 left!

0

0030

Murray 054537MA

HANDLE, Plastic

$18.99

$

Usually ships in 2-12 days

0

0040

Murray 26X239MA

SCREW, 1/4 X 3/4

$4.49

$

In Stock, only 2 left!

0

0050

Murray 1733885SM

ELBOW, Upper Tube Poly

$103.99

$

Usually ships in 2-12 days

0

0060

Murray 1736080AYP

CROSS SUPPORT

$186.99

$

Usually ships in 2-12 days

0

0070

Murray 1736101YP

ASSEMBLY, Cover & Screen, Triple Catcher

$695.99

$

Usually ships in 2-12 days

0

0080

Murray 1736886AYP

PIVOT, Hinge
(Superseded to 1736886BMYP)

$34.99

$

Usually ships in 2-12 days

0

0090

Murray 1918196SM

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

0100

Murray 1927557SM

NUT, Whiz-Lock, Hex Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0110

Murray 1928352SM

NUT, Whiz-Lock, Hex Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

0120

Murray 703175

BOLT, Round Head, Short Neck 5/16-18 x 2 3/4

$3.99

$

In Stock, only 2 left!

0

0130

Murray 1931342SM

BOLT, Round Head, Short Neck, 5/16-18 x 2 3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

0140

Murray 1931350SM

BOLT, Carriage, 3/8-16 X 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0150

Murray 7091290SM

NUT, Hex Lock, 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0160

Murray 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

0170

Murray 7091584SM

NUT, 1/4-20, Flange
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

0180

Murray 1960404SM

SCREW, Truss Head Phillips, 10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

0190

Murray 7102990YP

KNOB, Handle
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0200

Murray 7301143BMYP

BRACKET,Rear Bumper

$168.99

$

Usually ships in 2-12 days

0

0210

Murray 7301153BMYP

BALLAST, Weight

$51.99

$

Usually ships in 2-12 days

0

0220-10

Murray 1672023ASM

CLAMP, Grass Bag

$11.99

$

Usually ships in 2-12 days

0

0220-20

Murray 1703807ASM

HANGER, Grass Bag

$21.99

$

In Stock, only 2 left!

0

0220-30

Murray 1733517SM

HOOP, Triple

$76.99

$

Usually ships in 2-12 days

0

0220-40

Murray 1733695SM

BAG, Grass

$140.99

$

In Stock, only 2 left!

0

0220-50

Murray 1733709SM

EDGING, Tube Grass Bag

$16.99

$

In Stock, only 2 left!

0

0220-60

Murray 703116

LOCKWASHER, Split, 5/16

$3.49

$

In Stock, Qty 20+

0

0220-70

Murray 7091511SM

NUT, Hex, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0220-80

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0230-10

Murray 004X24MA

SCREW, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0230-20

Murray 004X71MA

SCREW, 1/4-20 x 1

$4.99

$

In Stock, only 4 left!

0

0230-30

Murray 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 3 left!

0

0230-40

Murray 1928372SM

NUT, Hex Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

0230-50

Murray 1930642SM

NUT, Top-Lock, Hex Flange, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

0230-60

Murray 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

0230-70

Murray 7104784YP

TUBE, Clear Poly, 34

$164.99

$

Usually ships in 2-12 days

0

0240-10

Murray 703297

RETAINER, 5/16

$3.99

$

In Stock, Qty 20+

0

0240-20

Murray 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

0240-30

Murray 1734367SM

BOOT, Bagging

$222.99

$

Usually ships in 2-12 days

0

0240-40

Murray 7101022YP

KNOB, Fluted, 5/16 X 1/2

$7.49

$

In Stock, only 1 left!

0

0240-50

Murray 1930642SM

NUT, Top-Lock, Hex Flange, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

0240-60

Murray 1931334SM

BOLT, Round Head, Short Neck 5/16 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

0240-70

Murray 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

0240-80

Murray 7301106BZYP

SHIELD, Boot

$21.99

$

Usually ships in 2-12 days

0
