7600101 - Snapper 28" & 33" Single Grass Catcher Single Bag Catcher Parts Diagram

28" & 33" Single Grass Catcher

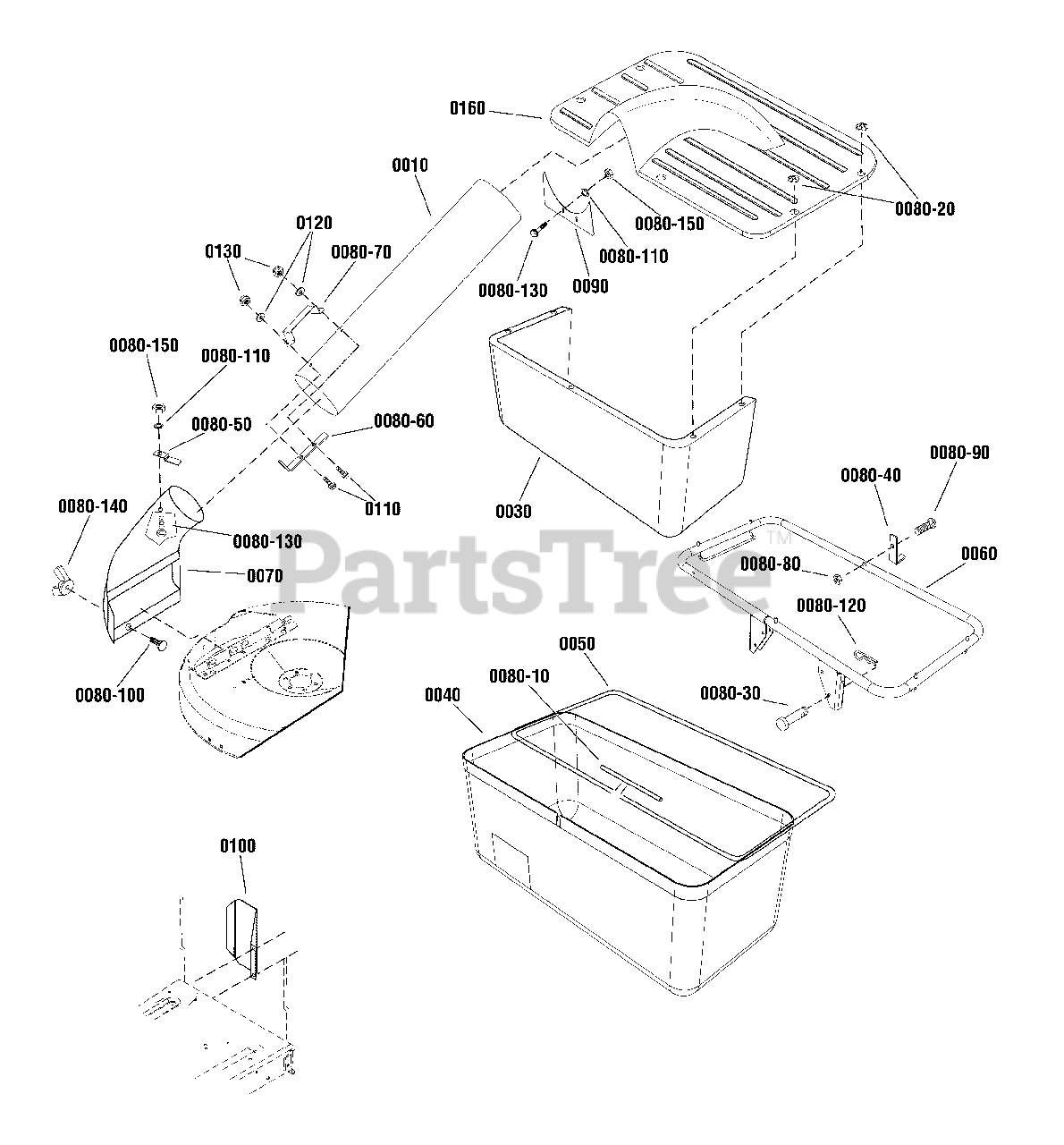

Single Bag Catcher Parts Diagram

  • Title

0010

Snapper 7014517YP

TUBE, Grass

$125.99

$

Usually ships in 2-12 days

0

0030

Snapper 7016108YP

SKIRT, Dust

$39.99

$

In Stock, only 3 left!

0

0040

Snapper 7019251YP

GRASS BAG, Single
(Superseded to 7024819YP)

$

$

Not available

0050

Snapper 7037758YP

ROD, Bag Support
(Superseded to 7057248YP)

$

$

Not available

0060

Snapper 7047973YP

FRAME, Single Bag Catcher

$204.99

$

Usually ships in 2-12 days

0

0070

Snapper 7057816YP

BAGGER, Adapter

$

$

Currently unavailable

--

Snapper 7060313

*HARDWARE BAG

$

$

Currently unavailable

0080-10

Snapper 7012556YP

CONNECTOR, Rod

$7.49

$

In Stock, only 1 left!

0

0080-20

Snapper 7029840YP

PALNUT, Washer
(Superseded to 704315)

$4.49

$

In Stock, only 2 left!

0

0080-30

Snapper 7029841YP

PIN, Clevis 5/16 X 1.69
(Superseded to 704029)

$4.49

$

In Stock, only 3 left!

0

0080-40

Snapper 7031725YP

LATCH, Grass Catcher

$5.49

$

Usually ships in 2-12 days

0

0080-50

Snapper 7031951YP

LATCH, Tube

$5.99

$

In Stock, only 1 left!

0

0080-60

Snapper 7031952YP

BASE, Tube Handle

$7.49

$

In Stock, only 1 left!

0

0080-70

Snapper 7037745YP

HANDLE, Tube

$10.99

$

Usually ships in 2-12 days

0

0080-80

Snapper 7090376YP

NUT, Hex Lock 10-32 W/Nylon Insert
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

0080-90

Snapper 7090532YP

SCREW, Hex Head Machine 10-32 X 1-3/8
(Superseded to 704316)

$4.99

$

In Stock, only 2 left!

0

0080-100

Snapper 7091303YP

Bolt, Carriage,Short Neck, 5/16 X 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 8

0

0080-110

Snapper 7091314YP

WASHER, Internal Tooth Lock 5/16
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

0080-120

Snapper 7091503SM

PIN, Hair 3/32 x 1.6

$3.99

$

In Stock, Qty 20+

0

0080-130

Snapper 703101

Bolt, Carriage, Short Neck, 1/4-20 x 3/4

$3.99

$

In Stock, only 3 left!

0

0080-140

Snapper 7091537YP

WING, Locknut, 5/16-18

$4.49

$

In Stock, only 3 left!

0

0080-150

Snapper 703127

NUT,1/4-20

$3.49

$

In Stock, Qty 20+

0

0090

Snapper 7063287YP

SHIELD, Grass Catcher
(Superseded to 7063289YP)

$29.99

$

Usually ships in 2-12 days

0

0100

Snapper 7071677YP

GUARD, Muffler

$79.99

$

In Stock, only 1 left!

0

0110

Snapper 7090909YP

CAPSCREW, Hex Head,1/4-20 X 1 1/2
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0120

Snapper 1921319YP

WASHER, Flat

$

$

Currently unavailable

0130

Snapper 7091705YP

NUT, Lock, 1/4

$

$

Currently unavailable

0160

Snapper 7501833YP

GRASS CONTAINER, Top

$

$

Not available
