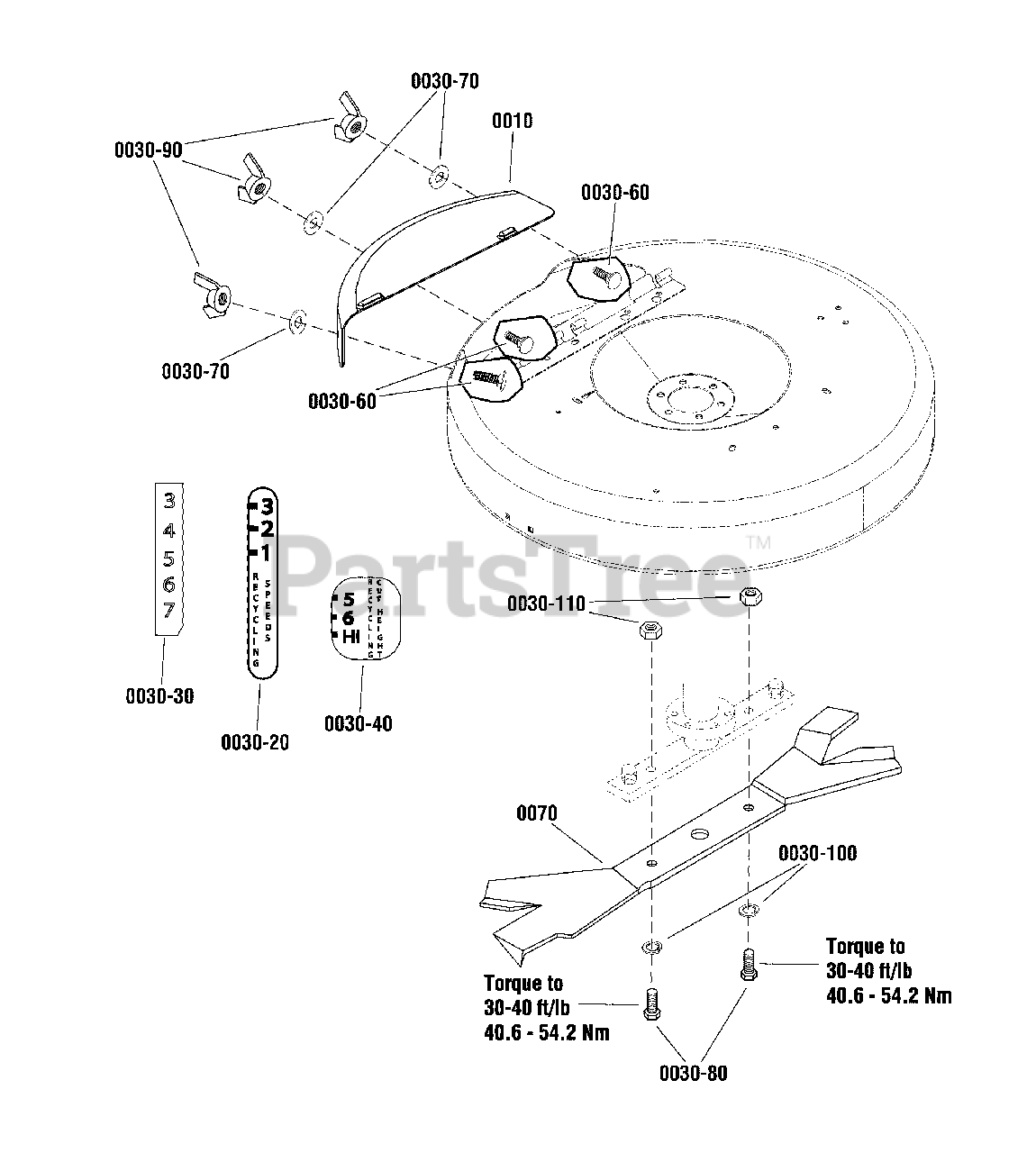

7600100 - Snapper Mulch Kit for Ninja 28" Mower Mulcher Recycling Kit Assembly (7600100) Parts Diagram

Mulch Kit for Ninja 28" Mower

Mulcher Recycling Kit Assembly (7600100) Parts Diagram

  • Title
0010

Snapper 7016983

COVER, Mulching, 28"
(Superseded to 7016983YP)

$64.99

$

In Stock, only 4 left!

0

0020

Snapper 7017176

DECAL, Recycling Speeda
(Superseded to 7017176SM)

$17.99

$

Usually ships in 2-12 days

0

0030

Snapper 7017328

DECAL, Height of Cut

$

$

Not available

0040

Snapper 7022325

DECAL, Cut Height
(Superseded to 7022325YP)

$9.99

$

In Stock, only 2 left!

0

0060

Snapper 7090001

BOLT, Carriage, 5/16 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0070

Snapper 7090188

WASHER, Flat, 5/16 ID x 11/16 OD
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

0080

Snapper 7090392

CAPSCREW, 1/2 x 1
(Superseded to 703880)

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 7090492

WINGNUT, 5/16
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

0100

Snapper 7090509

WASHER, Locking
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

0110

Snapper 7090559

NUT, Hex Jam, 1/2
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

0120

Snapper 7104083

BLADE, Ninja
(Superseded to 7104083BZYP)

$

$

Not available
