7600070 - Simplicity Triple Grass Catcher for 46" and 52" Mower GRASS BAG ASSEMBLY Parts Diagram

Triple Grass Catcher for 46" and 52" Mower

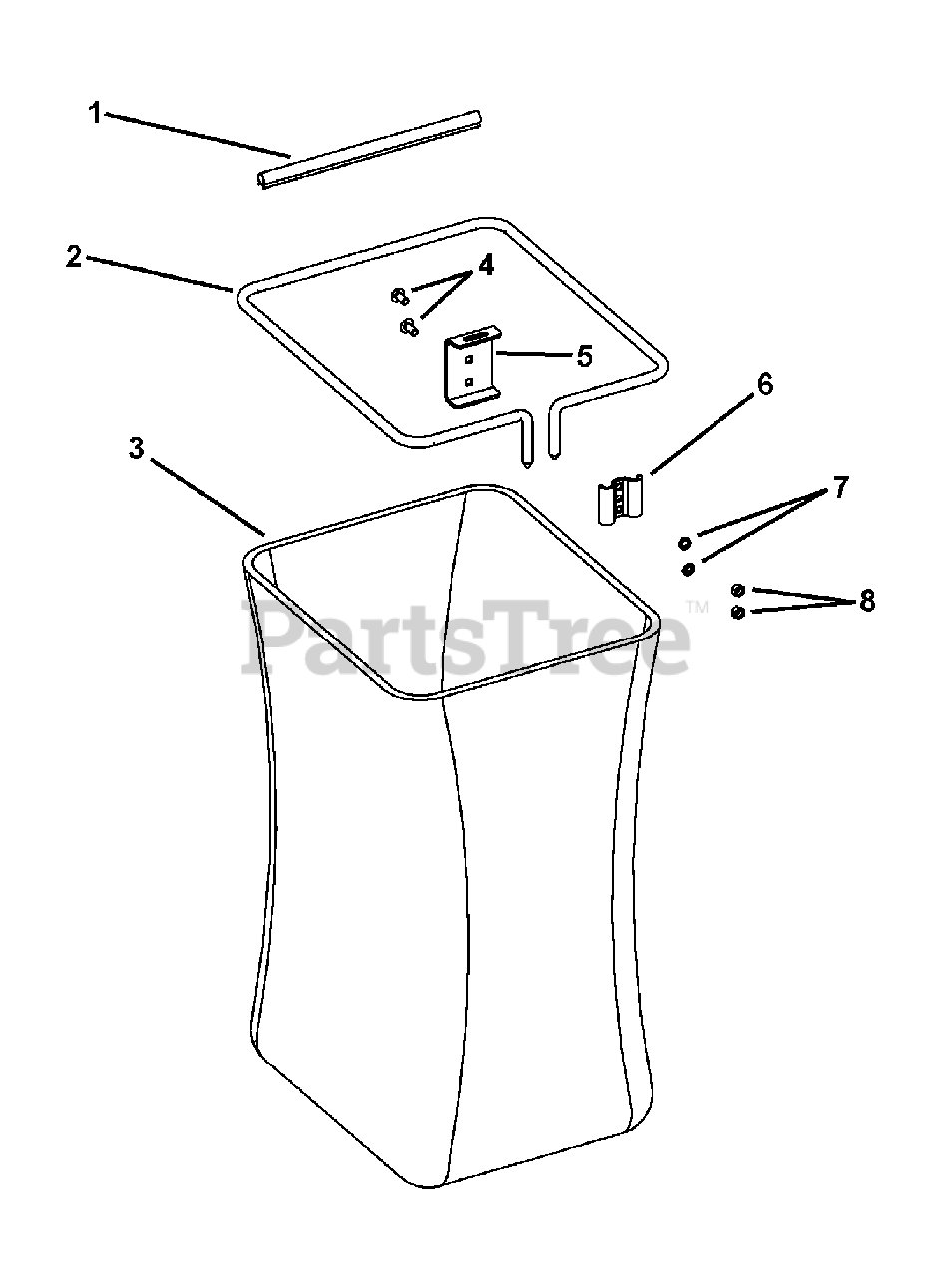

GRASS BAG ASSEMBLY Parts Diagram

  • Title
1

Simplicity 1733709

TUBE, CLIP, GRASS BAG
(Superseded to 1733709SM)

$16.99

$

In Stock, only 2 left!

0

2

Simplicity 1733517

HOOP, BAG TRIPLE
(Superseded to 1733517SM)

$76.99

$

Usually ships in 2-12 days

0

3

Simplicity 1733695

BAG, GRASS CATCHER, CLOTH
(Superseded to 1733695SM)

$140.99

$

In Stock, only 2 left!

0

4

Simplicity 1931333

BOLT, CARRIAGE, 5/16-18 X 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

5

Simplicity 1703807A

HANGER, GRASS BAG
(Superseded to 1703807ASM)

$21.99

$

In Stock, only 1 left!

0

6

Simplicity 1672023A

CLAMP, GRASS BAG
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 1917356

LOCKWASHER, SPRING 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1917372

NUT, HEX 5/16-18 NC-2B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
