7600070 - Simplicity Triple Grass Catcher for 46" and 52" Mower COVER ASSEMBLY SUPPORT Parts Diagram

Triple Grass Catcher for 46" and 52" Mower

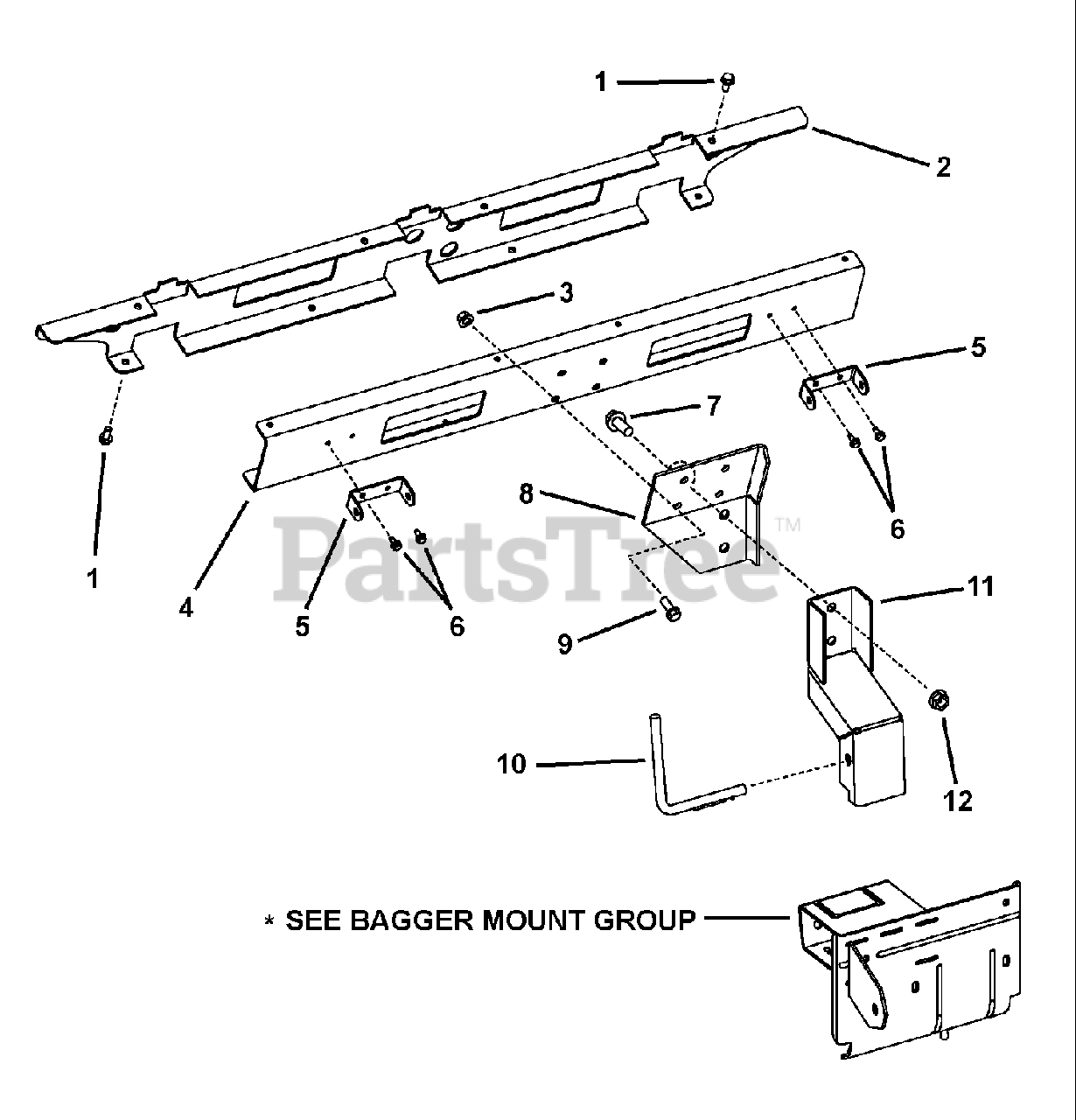

COVER ASSEMBLY SUPPORT Parts Diagram

  • Title

1

Simplicity 1664847

SCREW, HWH TAPTITE 5/16-18 X 3/4" BLACK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1733624A

BRACKET, TAB CROSS SUPPORT, TRIPLE GRASS CATCHER
(Superseded to 1733624ASM)

$92.99

$

Usually ships in 2-12 days

0

3

Simplicity 1928352

NUT, HEX FLNG WHIZ LK 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

4

Simplicity 1733623A

CHANNEL, CROSS SUPPORT, TRIPLE GRASS CATCHER
(Superseded to 1733623ASM)

$113.99

$

Usually ships in 2-12 days

0

5

Simplicity 1733504A

PIVOT, HINGE
(Superseded to 1733504ASM)

$22.99

$

Usually ships in 2-12 days

0

6

Simplicity 1925003

HWHS, TAPTITE 1/4-20 X .500 BLK
(Superseded to 704130)

$3.99

$

In Stock, Qty 14

0

7

Simplicity 7091323

HFLB, 1/2-13 X 1-1/4 GR5 YZ
(Superseded to 7091323YP)

$7.99

$

Usually ships in 2-12 days

0

8

Simplicity 7300956A

PLATE, SUPPORT, TRIPLE GRASS CATCHER
(Superseded to 7300956AYP)

$34.99

$

Usually ships in 2-12 days

0

9

Simplicity 1934654

SCREW, HEX WZ LOCK FLNG 3/8-16 WHIZ LK LARGE
(Superseded to 704038)

$5.99

$

In Stock, only 3 left!

0

10

Simplicity 720527

PIN, CHANNEL MTG, GRASS CATCHER

Note: or 054408Z

$

$

Currently unavailable

11

Simplicity 7300957A

ARM, SUPPORT, TRIPLE GRASS CATCHER
(Superseded to 7300957AYP)

$77.99

$

Usually ships in 2-12 days

0

12

Simplicity 7091544

HFLN, 1/2-13-YZ
(Superseded to 7091544SM)

$3.49

$

Usually ships in 2-12 days

0
