7600069 - Snapper 42" Triple Bag Grass Catcher GRASS BAG DECK ADAPTER Parts Diagram

42" Triple Bag Grass Catcher

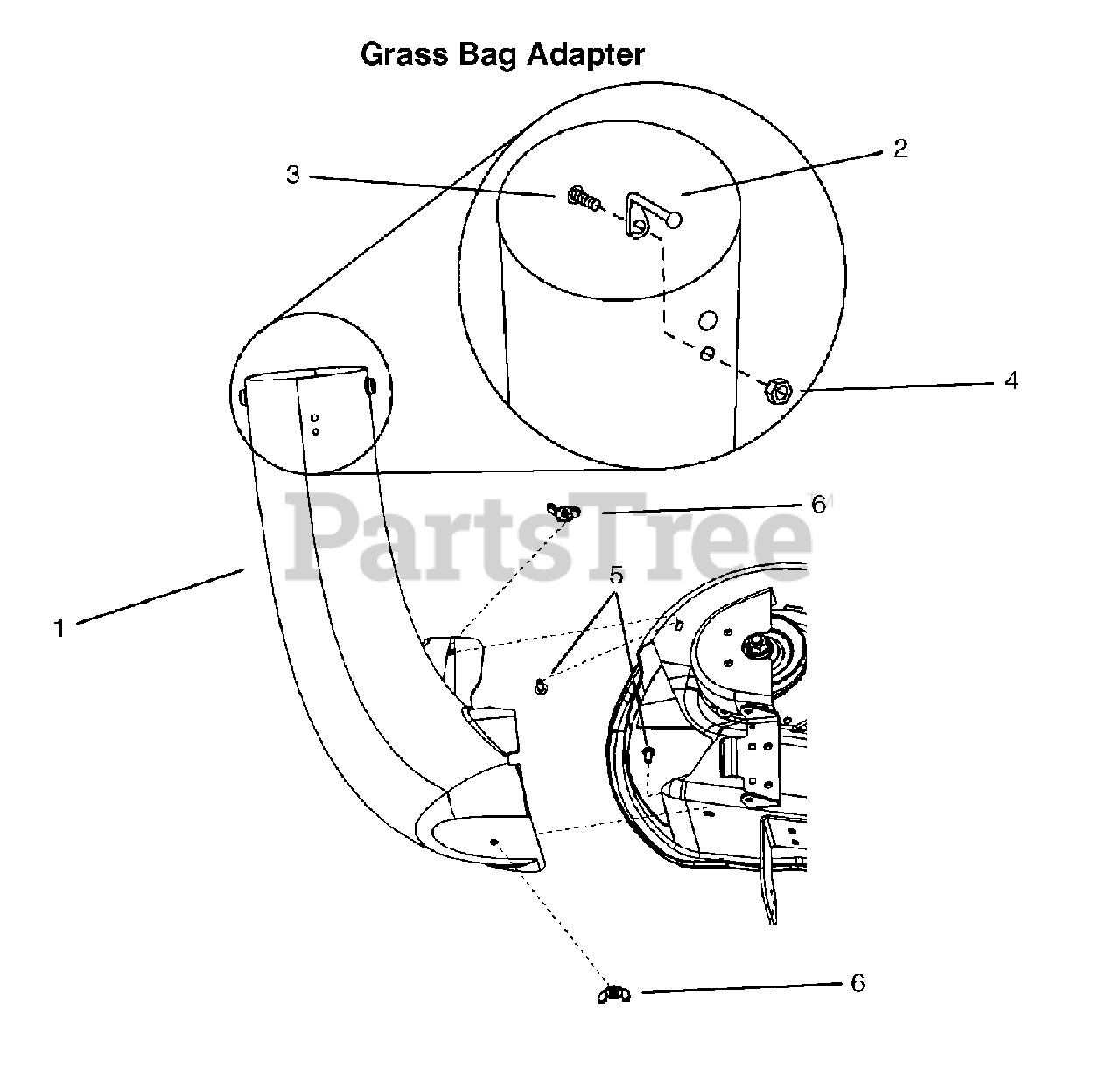

GRASS BAG DECK ADAPTER Parts Diagram

  • Title

1

Snapper 720551

BOOT, 42" BAGGER
(Superseded to 054692MA)

Note: or 054692

$319.99

$

Usually ships in 2-12 days

0

1

Snapper 720560

BOOT, 46" BAGGER
(Superseded to 054774MA)

Note: or 054774

$140.99

$

Usually ships in 2-12 days

0

1

Snapper 7102377

BOOT, 52" BAGGER
(Superseded to 7102377YP)

$125.99

$

Usually ships in 2-12 days

0

2

Snapper 720543

PIN, LATCH
(Superseded to 054563MA)

Note: or 054563

$23.99

$

In Stock, only 2 left!

0

3

Snapper 1960252

BOLT, CARRIAGE, 1/4-20 X 5/8
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

4

Snapper 1930642

NUT, CENTER LOCK FLANGE 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

5

Snapper 1960223

BOLT, CARRIAGE, SN, 5/16-18 X 1 1/4 BLK
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

6

Snapper 720125

NUT, 5/16-18 WINGNUT
(Superseded to 703141)

Note: or 014X86

$3.49

$

In Stock, only 3 left!

0

--

Snapper 7011791

RETAINER, BOLT, 5/16- BLACK (not shown)
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0
