7600029 - Snapper 44" & 50" RZT Triple Bag Grass Catcher Cover, Tube, & Support Group (7600029A) Parts Diagram

44" & 50" RZT Triple Bag Grass Catcher

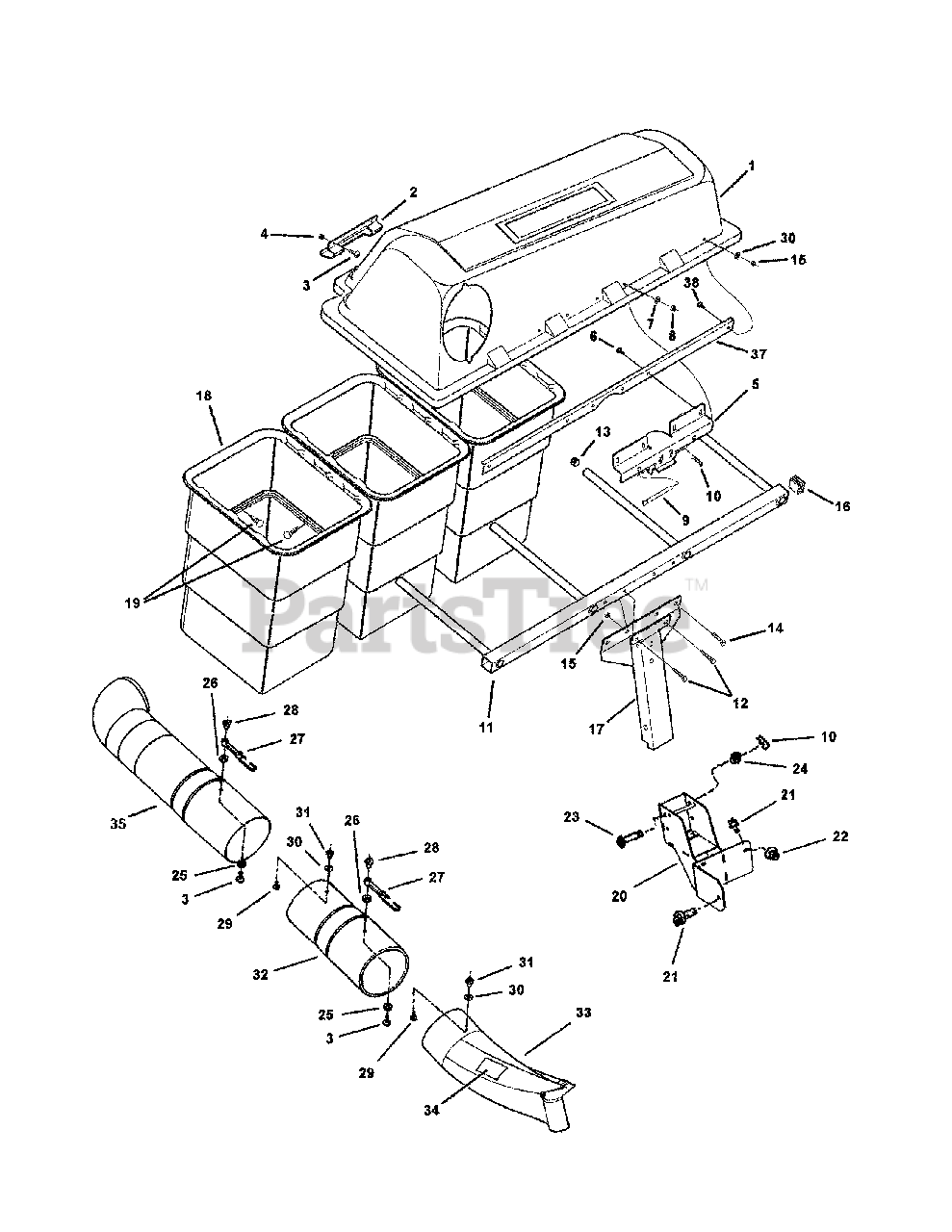

Cover, Tube, & Support Group (7600029A) Parts Diagram

  • Title

1

Snapper 7100688SM

TRIPLE COVER ASSEMBLY, 44/50"

$398.99

$

Usually ships in 2-12 days

0

2

Snapper 054537MA

HANDLE. Cover

$18.99

$

Usually ships in 2-12 days

0

3

Snapper 7036415SM

SCREW, Cross Recessed Pan Head, 10 - 24 x 5/8

$3.99

$

In Stock, only 2 left!

0

4

Snapper 7091290SM

NUT, Hex Lock, 10 - 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

5

Snapper 054754E701MA

HINGE, Cover

$33.99

$

Usually ships in 2-12 days

0

6

Snapper 7091530SM

BOLT, Carriage, 1/4 - 20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

7

Snapper 7091294SM

WASHER, SAE, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7092126SM

NUT, Hex Center Lock, 1/4 - 20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

9

Snapper 054407ZMA

PIN, Cover Hinge

$14.99

$

In Stock, only 1 left!

0

10

Snapper 7091503SM

PIN, Hair, 3/32 x 1-1/2

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7400196SM

WELDMENT, Triple Catcher Frame

$

$

Not available

12

Snapper 7076938SM

SCREW, Hex Head Cap, 5/16 - 18 x 2-1/4
(Superseded to 703177)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 054776MA

PLUG, Round

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7027174SM

SCREW, Hex Head Cap, 5/16 - 18 x 2
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

15

Snapper 7091575SM

NUT, Hex Center Lock, 5/16 - 18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

16

Snapper 054777MA

PLUG, Square

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 1732869SM

WELD, Channel Support, Triple

$73.99

$

Usually ships in 2-12 days

0

18

Snapper 054752MA

CONTAINER, Nestable Triple Catcher
(Superseded to 054752SEMA)

Note: (Set of three)

$444.99

$

Usually ships in 2-12 days

0

19

Snapper 7016704SM

FASTENER, Panel

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7400094SM

WELDMENT, Grass Catcher Support

$169.99

$

Usually ships in 2-12 days

0

21

Snapper 7091541SM

BOLT, Hex Washer Self-Tap, 5/16 - 18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7091601SM

NUT, Flange, 5/16 - 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

23

Snapper 7900034SM

PIN, Clevis

$7.99

$

Usually ships in 2-12 days

0

24

Snapper 7091587SM

WASHER, SAE, 1/2
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

25

Snapper 7091552SM

WASHER, SAE, 7/32 x 1/2

$3.99

$

In Stock, Qty 16

0

26

Snapper 7036422SM

WASHER, SAE, 3/16 x 3/4

$3.99

$

In Stock, only 2 left!

0

27

Snapper 7036433SM

STRAP, Mounting Bag Adapter/Tube

$31.99

$

In Stock, only 1 left!

0

28

Snapper 7036404SM

NUT, Tee, 10-24

$3.49

$

Usually ships in 2-12 days

0

29

Snapper 7091001SM

SCREW, Pan Head Torx, 5/16 - 18 x 5/8
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

30

Snapper 7090188SM

WASHER, SAE, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

31

Snapper 7036543SM

NUT, Tee, 5/16 - 18

$2.99

$

Usually ships in 2-12 days

0

32

Snapper 7100701SM

TUBE, Lower

$190.99

$

Usually ships in 2-12 days

0

33

Snapper 7100692SM

ADAPTER, Bag

$219.99

$

Usually ships in 2-12 days

0

34

Snapper 1732819SM

DECAL, Warning

$18.99

$

Usually ships in 2-12 days

0

35

Snapper 7100618SM

TUBE, Upper

$205.99

$

Usually ships in 2-12 days

0

37

Snapper 7300497SM

BRACE, Cover

$20.99

$

Usually ships in 2-12 days

0

38

Snapper 7091508SM

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0
