7600027 - Snapper 52" NZM Large Clamshell Grass Catcher BLOWER UNIT GROUP Parts Diagram

52" NZM Large Clamshell Grass Catcher

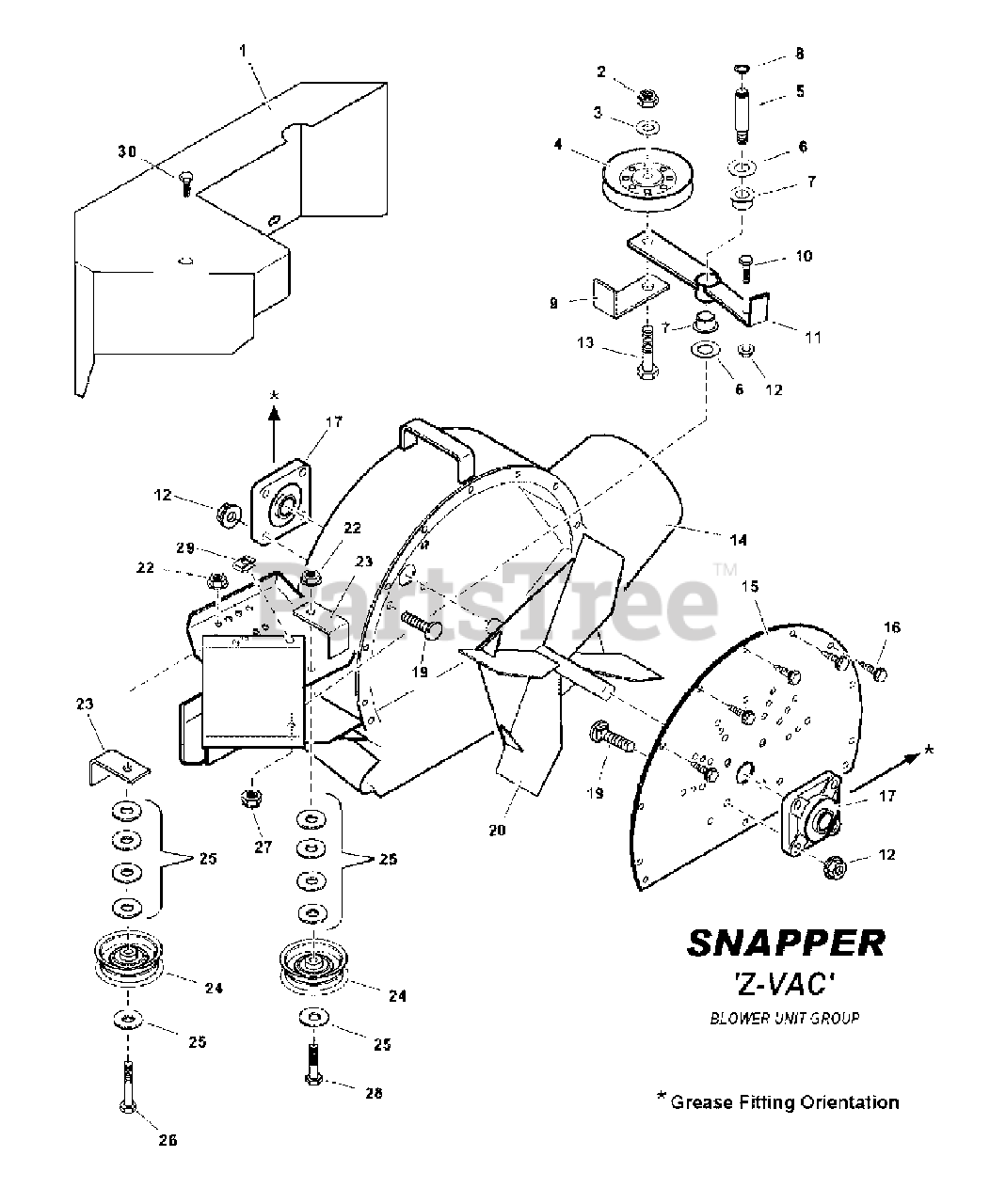

BLOWER UNIT GROUP Parts Diagram

  • Title
1

Snapper 3046782

BELT GUARD, Blower
(Superseded to 5403736A)

$136.99

$

Usually ships in 2-12 days

0

2

Snapper 7091121

NUT, Nylon Lock 1/2-13

$

$

Not available

3

Snapper 7090183

WASHER,.66X1.31X.09
(Superseded to 7090183YP)

$4.49

$

In Stock, only 2 left!

0

4

Snapper 3021097

PULLEY, A Groove Idler, Steel
(Superseded to 3021097YP)

$68.99

$

Usually ships in 2-12 days

0

5

Snapper 7044995

STUD, Idler
(Superseded to 7044995SM)

$20.99

$

Usually ships in 2-12 days

0

6

Snapper 7091804

WASHER, Flat 9/16
(Superseded to 5103679)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 7014409

BEARING, Flanged 9/16
(Superseded to 7014409SM)

$6.99

$

In Stock, Qty 19

0

8

Snapper 7010776

RING, Retaining 1/2"", HD
(Superseded to 7010776YP)

$3.99

$

In Stock, only 2 left!

0

9

Snapper 3046824

IDLER, Belt Retainer
(Superseded to 3046824YP)

$19.99

$

Usually ships in 2-12 days

0

10

Snapper 7091527

SCREW, Hex Head Cap 5/16-18 X 1.25 GR 5 YZ
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

11

Snapper 3047253

WELDMENT, Idler Arm
(Superseded to 3047253YP)

$113.99

$

Usually ships in 2-12 days

0

12

Snapper 7091601

NUT, Flange Lock,, 5/16-18 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

13

Snapper 7091218

SCREW, Hex Head Cap 1/2UNC X 2.5"" (Black Phosphate)
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 3046781

WELDMENT, Blower Housing
(Superseded to 5403723A)

$719.99

$

Usually ships in 2-12 days

0

15

Snapper 3046853

BACK PLATE, Blower
(Superseded to 3046853YP)

$59.99

$

Usually ships in 2-12 days

0

16

Snapper 7091541

SCREW, Hex Washer Self-Tap 5/16-18 X 3/4-YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7100021

BEARING, Flanged, 1" Bore
(Superseded to 7100021SM)

$41.99

$

In Stock, Qty 15

0

19

Snapper 7091508

BOLT, Carriage Short Neck 5/16-18 X 3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

20

Snapper 3046854

IMPELLER, Fast-Vac BLOWER
(Superseded to 5403741SM)

$250.99

$

Usually ships in 2-12 days

0

22

Snapper 7090613

NUT, Hex Flange Lock,, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

23

Snapper 3046813

RETAINER, Belt
(Superseded to 5403749A)

$19.99

$

In Stock, only 1 left!

0

24

Snapper 3043613

PULLEY, Idler Flat
(Superseded to 5043613YP)

$56.99

$

In Stock, only 2 left!

0

25

Snapper 7090122

WASHER, SAE 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7091560

SCREW, Hex Head Cap 3/8C X2-1/4 GR5 YZ
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

27

Snapper 7091518

NUT, Hex Lock Nylon, 3/8F YZ
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

28

Snapper 7091305

SCREW, Hex Head Cap 3/8-16 X 2 GR5 YZ
(Superseded to 7091305SM)

$4.49

$

In Stock, only 1 left!

0

29

Snapper 7092111

U-CLIP, 5/16-18
(Superseded to 7092111YP)

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 7091541

SCREW, Hex Washer Self-Tap 5/16-18 X 3/4-YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0
