7600024 - Snapper 42" RZT Twin Grass Catcher CATCHER COMPONENTS 42" RZT Parts Diagram

42" RZT Twin Grass Catcher

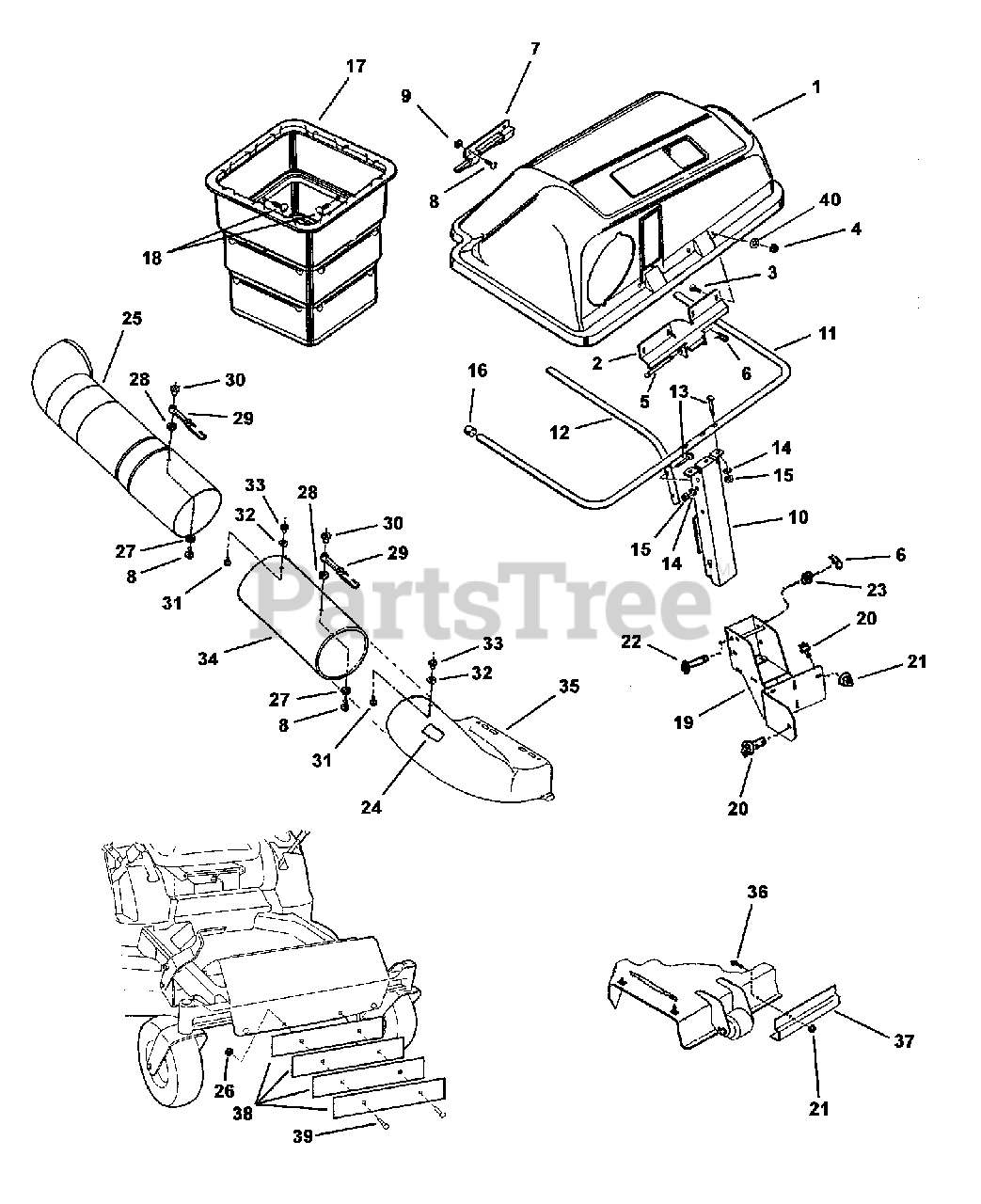

CATCHER COMPONENTS 42" RZT Parts Diagram

  • Title

--

Snapper 7600024

KIT, 42" RZT TWIN BAG CATCHER

$

$

Currently unavailable

1

Snapper 7100658

ASSY., TWIN COVER - 38/42
(Superseded to 7100658SM)

$433.99

$

Usually ships in 2-12 days

0

2

Snapper 720524

HINGE, COVER
(Superseded to 054398E701MA)

$39.99

$

Usually ships in 2-12 days

0

3

Snapper 7091530

* BOLT, SHORT NECK CARRIAGE 1/4-20 X 3/4
(Superseded to 7091530SM)

$3.99

$

In Stock, only 3 left!

0

4

Snapper 7092126

* NUT, HEX CENTER LOCK 1/4-20 YELLOW ZINC
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

5

Snapper 720525

* PIN, COVER HINGE
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

6

Snapper 7091503

* PIN, HAIR, 3/32 X 1.5 YZ
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 720537

HANDLE, COVER
(Superseded to 054537MA)

$18.99

$

Usually ships in 2-12 days

0

8

Snapper 7036415

* SCREW, PAN HEAD CROSS RECESS 10-24 X 5/8
(Superseded to 7036415SM)

$3.99

$

In Stock, only 2 left!

0

9

Snapper 7091290

* NUT, HEX LOCK 10-24 UNC-2B W/NYLON INSERT
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

10

Snapper 1732867

WELD, CHANNEL SUPPORT
(Superseded to 1732867SM)

$139.99

$

Usually ships in 2-12 days

0

11

Snapper 720529

TUBE, U
(Superseded to 054410E701MA)

$

$

Not available

12

Snapper 720530

TUBE, CENTER
(Superseded to 054412E701MA)

$45.99

$

Usually ships in 2-12 days

0

13

Snapper 720079

* BOLT, CARRIAGE HEAD 5/16-24 X 1-5/8
(Superseded to 006X93MA)

$4.49

$

In Stock, Qty 5

0

14

Snapper 7091315

* WASHER, SPLIT LOCK .32 X .58 X .08 YZ
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7091297

* NUT, HEX 5/16-24 GR5 YZ
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 720339

* CAP, TUBE END
(Superseded to 024862MA)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 720553

ASSEMBLY, NESTABLE CONTAINER - TWIN CATCHER
(Superseded to 054727SEMA)

$455.99

$

Usually ships in 2-12 days

0

18

Snapper 7016704

* PANEL FASTENER
(Superseded to 7016704SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7400094

WELDMENT, GRASS CATCHER SUPPORT - RZT
(Superseded to 7400094SM)

$169.99

$

Usually ships in 2-12 days

0

20

Snapper 7091541

* SCREW, HEX WASHER SELF TAP 5/16-18 X 3/4-YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

21

Snapper 7091601

* NUT, FLANGED LOCK 5/16-18 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Snapper 7900034

* PIN, CLEVIS - 1/2" X 4.160 YZ
(Superseded to 7900034SM)

$7.99

$

Usually ships in 2-12 days

0

23

Snapper 7091587

* WASHER, SAE 1/2
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

24

Snapper 7046720

DECAL, CHUTE/DEFLECTOR
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

25

Snapper 7100618

TUBE, UPPER - TWIN BAGGER - 38" & 42" RZT
(Superseded to 7100618SM)

$205.99

$

Usually ships in 2-12 days

0

26

Snapper 7091298

* NUT, HEX LOCK 5/16-18-3B YZ ESNA
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7091552

* WASHER, FLANGED LOCK .219X.500X.049 BL
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 16

0

28

Snapper 7036422

* WASHER, FLAT .190 I.D. X .75 O.D. YZ
(Superseded to 7036422SM)

$3.99

$

In Stock, only 2 left!

0

29

Snapper 7036433

* STRAP, MOUNTING BAG ADAPTER/TUBE
(Superseded to 7036433SM)

$31.99

$

In Stock, only 1 left!

0

30

Snapper 7036404

* NUT, WELD-10/24 THREAD
(Superseded to 7036404SM)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper 7091833

* SCREW, CROSS RECESSED PAN HEAD 5/16-18 X 5/8
(Superseded to 7091833SM)

$4.49

$

In Stock, only 1 left!

0

32

Snapper 7090188

* WASHER, FACETED .34X.69X.08
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

33

Snapper 7036543

* TEENUT, 5/16-18 THREAD
(Superseded to 7036543SM)

$2.99

$

Usually ships in 2-12 days

0

34

Snapper 7100617

TUBE, LOWER - TWIN BAGGER - 42" RZT
(Superseded to 7100617YP)

$185.99

$

Usually ships in 2-12 days

0

35

Snapper 7051663

CHUTE ASSY (includes decal)
(Superseded to 7051663YP)

$198.99

$

Usually ships in 2-12 days

0

36

Snapper 7091613

* SCREW, PAN HEAD MACHINE 5/16-18 X 3/4 YZ
(Superseded to 7091613YP)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 7300386

BAFFLE, 42" DECK - RZT
(Superseded to 7300386YP)

$94.99

$

Usually ships in 2-12 days

0

38

Snapper 7300367

BALLAST-TWIN BAG CATCHER - RZT
(Superseded to 7300367SM)

$54.99

$

Usually ships in 2-12 days

0

39

Snapper 7900039

BOLT, SHORT NECK CARRIAGE 5/16-18 X 1.75 GR5 YZ
(Superseded to 7900039SM)

$3.49

$

Usually ships in 2-12 days

0

40

Snapper 7091294

WASHER, SAE 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

--

Snapper 7100642

SHEET, INSTRUCTION TWIN BAGGER KIT - RZT (Not shown)

$

$

Currently unavailable

--

Snapper 7500221

BAG, HARDWARE - KITS 7600024 (Not shown)

$

$

Currently unavailable

--

Snapper 7500237

GROUP, BALLAST - 38"/42" TWIN BAG CATCHER - RZT

Note: Includes items 26, 38, & 39

$

$

Currently unavailable
