7600023 - Simplicity Twin Grass Catcher Twin Catcher Assembly (7600023) Parts Diagram

Twin Grass Catcher

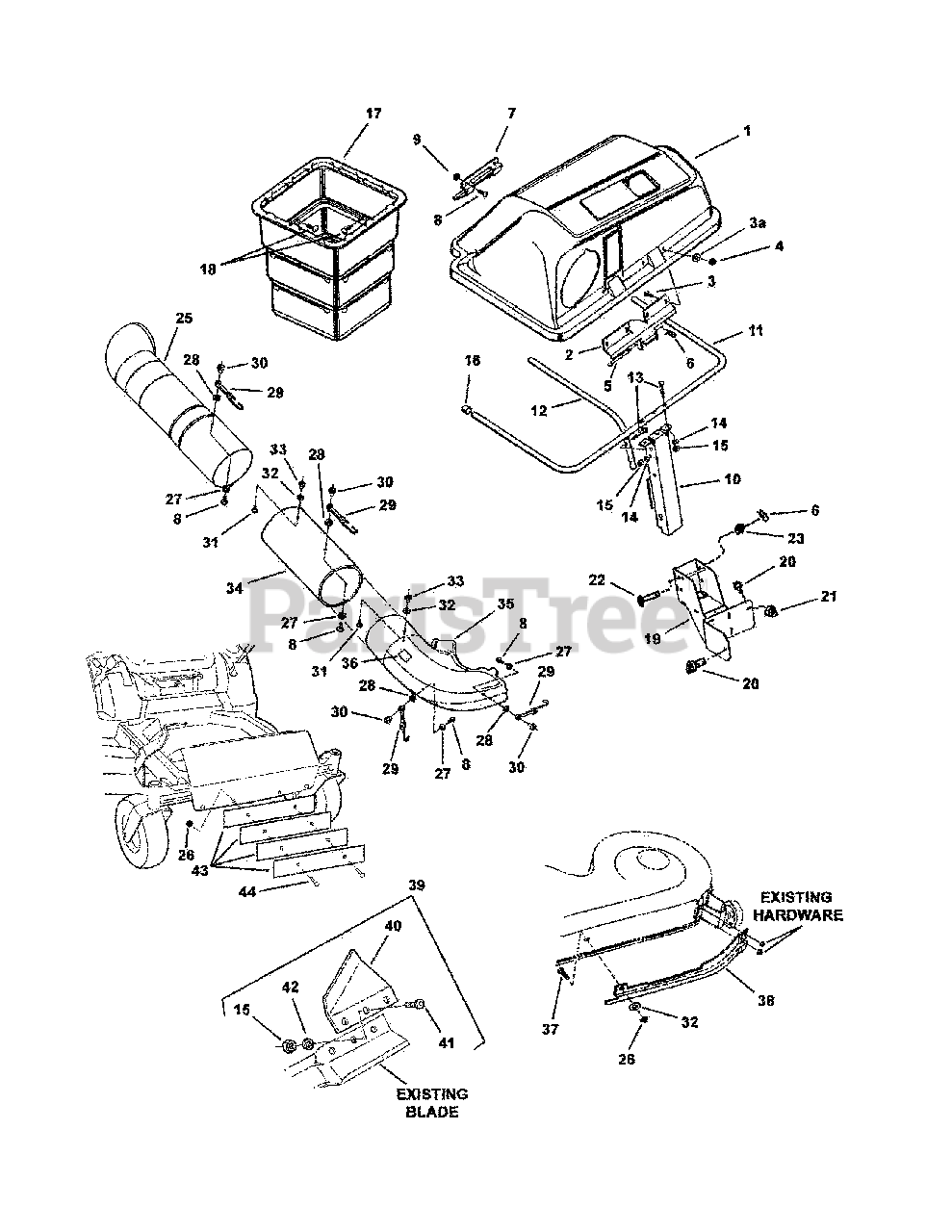

Twin Catcher Assembly (7600023) Parts Diagram

  • Title

1

Simplicity 7100658SM

TWIN COVER ASSEMBLY, 38"

$433.99

$

Usually ships in 2-12 days

0

--

Simplicity 7100659SM

COVER, Twin

Note: (Included with Ref. No. 1)

$

$

Not available

--

Simplicity 1673320SM

RIVET, Large Flange

Note: (Included with Ref. No. 1)

$4.49

$

In Stock, Qty 8

0

--

Simplicity 1910531SM

WASHER, Rivet

Note: (Included with Ref. No. 1)

$3.99

$

Usually ships in 2-12 days

0

--

Simplicity 1732490SM

FASTENER, Push

Note: (Included with Ref. No. 1)

$58.99

$

Usually ships in 2-12 days

0

--

Simplicity 1732488SM

SCREEN, Twin Cover

Note: (Included with Ref. No. 1)

$68.99

$

Usually ships in 2-12 days

0

--

Simplicity 1732489SM

SUPPORT, Screen, Twin Cover

Note: (Included with Ref. No. 1)

$

$

Not available

--

Simplicity 1732819SM

DECAL, Warning

Note: (Included with Ref. No. 1)

$18.99

$

Usually ships in 2-12 days

0

2

Simplicity 054398E701MA

HINGE, Cover

Note: (Included with Ref. No. 1)

$39.99

$

Usually ships in 2-12 days

0

3

Simplicity 7091530SM

BOLT, Carriage, 1/4 - 20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

3a

Simplicity 7091294SM

WASHER, SAE, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 7091603SM

LOCKNUT, Hex Center Lock, 1/4 - 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 054407ZMA

PIN, Cover Hinge

$14.99

$

In Stock, only 1 left!

0

6

Simplicity 7091503SM

PIN, Hair, 3/32 x 1-1/2

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 054537MA

HANDLE, Cover

$18.99

$

Usually ships in 2-12 days

0

8

Simplicity 7036415SM

CROSS RECESS PAN HEAD, 10 - 24 x 5/8

$3.99

$

In Stock, only 2 left!

0

9

Simplicity 7091290SM

LOCKNUT, Hex with Nylon Insert, 10 - 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

10

Simplicity 1732867SM

WELD, Channel Support

$139.99

$

Usually ships in 2-12 days

0

11

Simplicity 054410E701MA

Tube, "U"

$

$

Not available

12

Simplicity 054412E701MA

TUBE, Center

$45.99

$

Usually ships in 2-12 days

0

13

Simplicity 006X93MA

BOLT, Curved Head, 5/16 - 24 x 1-5/8

$4.49

$

In Stock, Qty 5

0

14

Simplicity 7091215SM

WASHER, Split Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

15

Simplicity 7091297SM

NUT, Hex, 5/16 - 24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 024862MA

CAP, Tube End

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 054727MA

NESTABLE CONTAINER ASSEMBLY, Twin Bag
(Superseded to 054727SEMA)

Note: (Set of two)

$455.99

$

Usually ships in 2-12 days

0

18

Simplicity 7016704SM

PANEL FASTENER

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 7400094SM

WELDMENT, Grass Catcher Support

$169.99

$

Usually ships in 2-12 days

0

20

Simplicity 7091541SM

BOLT, Hex Washer Self-Tapping, 5/16 - 18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 7091601SM

NUT, Locknut Flange, 5/16 - 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Simplicity 7900034SM

PIN, Clevis

$7.99

$

Usually ships in 2-12 days

0

23

Simplicity 7090250SM

WASHER, SAE, 1/2
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

25

Simplicity 7100618SM

TUBE, Upper

$205.99

$

Usually ships in 2-12 days

0

26

Simplicity 7091575SM

NUT, Hex Center Lock, 5/16 - 18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

27

Simplicity 7091552SM

WASHER, Flat

$3.99

$

In Stock, Qty 16

0

28

Simplicity 7036422SM

WASHER, Flat

$3.99

$

In Stock, only 2 left!

0

29

Simplicity 7036433SM

STRAP, Mounting Bag Adapter/Tube

$31.99

$

In Stock, only 1 left!

0

30

Simplicity 7036404SM

NUT, Weld - 10/24 Thread

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 7091833SM

SCREW, Cross Recessed Pan Head, 5/16 - 18 x 5/8

$4.49

$

In Stock, only 1 left!

0

32

Simplicity 7090188SM

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

33

Simplicity 7036543SM

NUT, Tee, 5/16 - 18

$2.99

$

Usually ships in 2-12 days

0

34

Simplicity 7100645SM

TUBE, Lower

$188.99

$

Usually ships in 2-12 days

0

35

Simplicity 7500211SM

DISCHARGE CHUTE ASSEMBLY, with Decal

$185.99

$

Usually ships in 2-12 days

0

--

Simplicity 7100608SM

DISCHARGE CHUTE
(Superseded to 7500211SM)

Note: (Included with Ref. No. 35)

$185.99

$

Usually ships in 2-12 days

0

36

Simplicity 7046720SM

DECAL, Deflector Chute

$7.49

$

Usually ships in 2-12 days

0

37

Simplicity 7091318SM

CAPSCREW, Hex Head , 5/16 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

38

Simplicity 7300369SM

BAFFLE, 38" Deck

$70.99

$

Usually ships in 2-12 days

0

39

Simplicity 7060480SM

AIR LIFT KIT ASSEMBLY

Note: (Includes Ref. Nos. 15, 40, 41, & 42)

$

$

Not available

40

Simplicity 7037723SM

AIR LIFT
(Superseded to 7037723BMYP)

$

$

Not available

41

Simplicity 7090228SM

SCREW, Oval Head, 5/16 - 24 x 21/32

$5.49

$

In Stock, Qty 20+

0

42

Simplicity 7090391SM

LOCKWASHER, Internal Tooth Lock, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

43

Simplicity 7300367SM

BALLAST, Twin Bag Catcher

$54.99

$

Usually ships in 2-12 days

0

44

Simplicity 7900039SM

BOLT, Carriage, 5/16 - 18 x 1-3/4

$3.49

$

Usually ships in 2-12 days

0
