7600014 - Snapper Windshield Kit, Series 1 WINDSHIELD KIT SERIES 1 Parts Diagram

Windshield Kit, Series 1

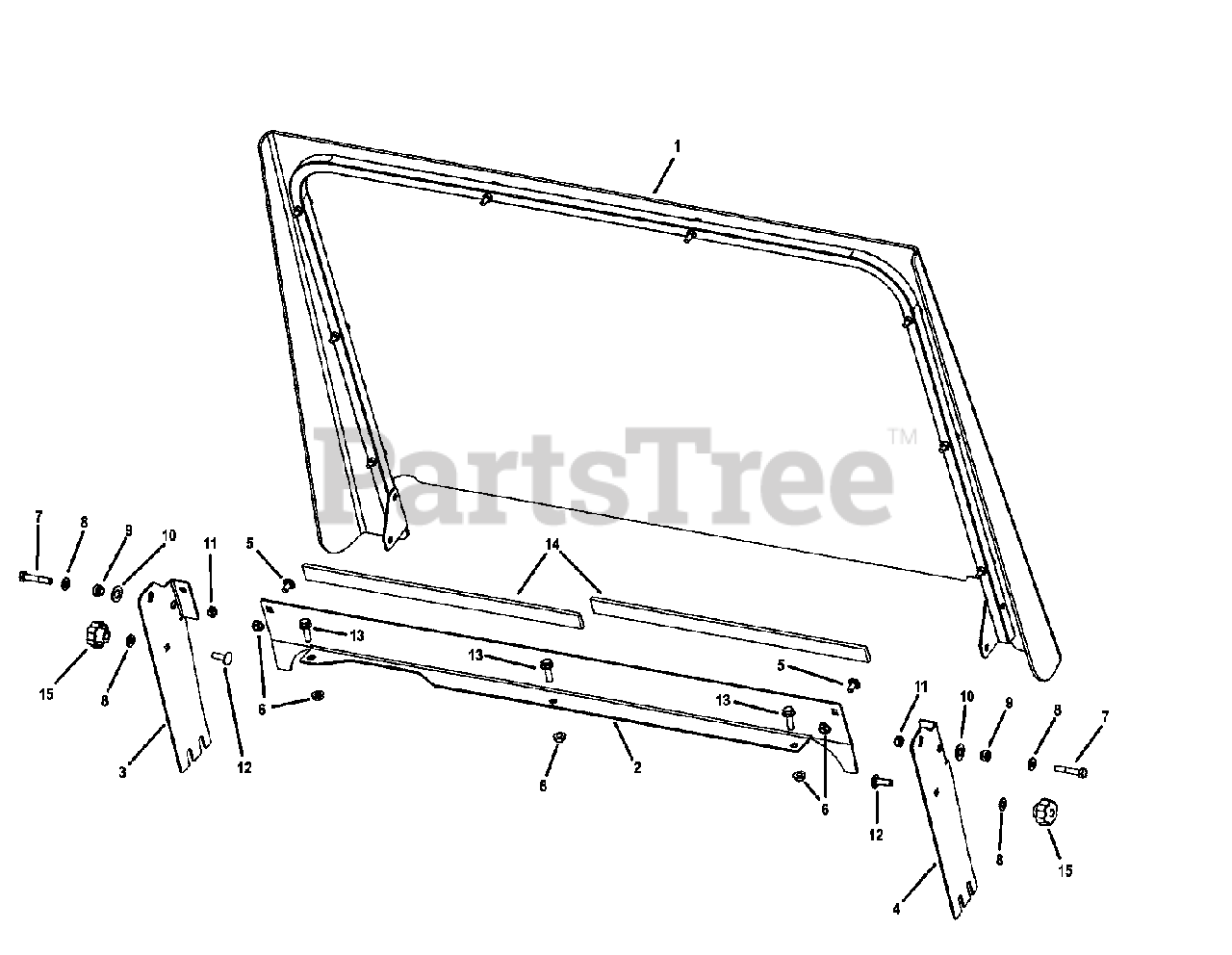

WINDSHIELD KIT SERIES 1 Parts Diagram

  • Title

--

Snapper 7600014

KIT, UV Windshield Series 1
(Superseded to 7600014YP)

$1320.99

$

Usually ships in 2-12 days

0

1

Snapper 7500236

ASSY, WINDSHIELD FRAME

$

$

Currently unavailable

--

Snapper 7100670

* WINDSHEILD, UV

$

$

Currently unavailable

--

Snapper 7900037

* SPACER, RUBBER, .25 X .75 X .38
(Superseded to 7900037YP)

$17.99

$

Usually ships in 2-12 days

0

--

Snapper 7900036

* WASHER, BONDED, 1/4"
(Superseded to 7900036YP)

$3.49

$

Usually ships in 2-12 days

0

--

Snapper 7900038

* BUMPER, RECESS STYLE, 1/4"

$

$

Currently unavailable

--

Snapper 7900035

* PHMS, 1/4-20 X 2, TORX
(Superseded to 7900035YP)

$4.49

$

Usually ships in 2-12 days

0

--

Snapper 7091003

* HHCS,1/4CX1-3/4
(Superseded to 7091003YP)

$3.49

$

Usually ships in 2-12 days

0

--

Snapper 7090372

* HCLN, 1/4-20
(Superseded to 703954)

$

$

Not available

--

Snapper 7400146

* WELDMENT, WS TUBE

$

$

Currently unavailable

--

Snapper 7300375

* BRKT, LOCK, UV WS

$

$

Currently unavailable

--

Snapper 7200084

* TUBE, WINDSHIELD

$

$

Currently unavailable

2

Snapper 7300372

BRKT, CROSS SUPPORT, UV WS
(Superseded to 7300372YP)

$58.99

$

Usually ships in 2-12 days

0

3

Snapper 7300373

BRKT, WINDSHIELD, LH
(Superseded to 7300373YP)

$27.99

$

Usually ships in 2-12 days

0

4

Snapper 7300374

BRKT, WINDSHIELD, RH
(Superseded to 7300374YP)

$27.99

$

Usually ships in 2-12 days

0

5

Snapper 7090799

RHSSNB,5/16CX5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7091601

FLN, 5/16-18 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Snapper 7091513

HHCS, 5/16-24 X 1.75 GR5 YZ
(Superseded to 7091513YP)

$4.49

$

In Stock, Qty 13

0

8

Snapper 7090188

FW,.34X.69X.08
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

9

Snapper 7012114

BSHG, DIFF LK,.328X.625X.41
(Superseded to 7012114SM)

$4.99

$

In Stock, Qty 9

0

10

Snapper 7091595

FLW, .47 X .92 X .065 YZ
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

11

Snapper 7091606

HCLN, 5/16-24 YZ
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7091303

RHSSNB, 5/16-18 X 1 GR 5 YZ
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

13

Snapper 7091591

HFLB, 5/16-18 X 1 YZ
(Superseded to 7091591SM)

$4.49

$

In Stock, only 2 left!

0

14

Snapper 7100693

STRIP, SPONGE RUBBER, 1/4 THK X 1 WIDE

$

$

Currently unavailable

15

Snapper 7029700

KNOB, FLUTED 5/16-18 YEL
(Superseded to 7029700YP)

$5.49

$

Usually ships in 2-12 days

0

--

Snapper 7100694

DECAL, UV WINDSHIELD KIT

Note: Not shown

$

$

Currently unavailable

--

Snapper 7100681

SHEET, INSTRUCTION WINDSHIELD KIT- UV

Note: Not shown

$

$

Currently unavailable
