7600012 - Snapper Winch Kit WINCH KIT Parts Diagram

Winch Kit

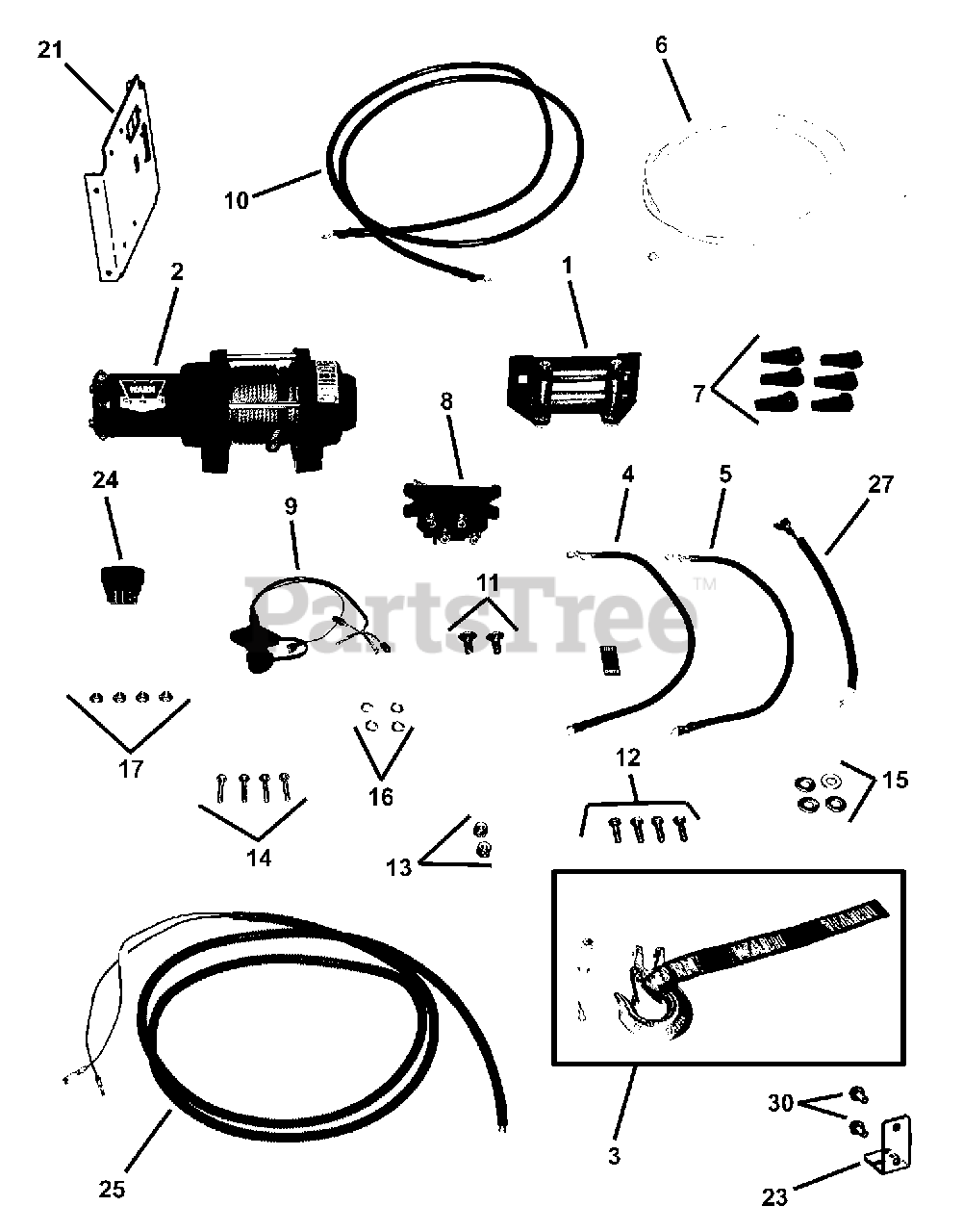

WINCH KIT Parts Diagram

  • Title

--

Snapper 7600012

KIT, Winch

$

$

Currently unavailable

1

Snapper 7043273

ASSY., Winch Fairlead
(Superseded to 7043273YP)

Note: Warner p/n 70241

$80.99

$

Usually ships in 2-12 days

0

2

Snapper 7043274

WINCH, Warner 2.5 C.I.
(Superseded to 7043274YP)

Note: Warner p/n 70250

$655.99

$

Usually ships in 2-12 days

0

3

Snapper 7043276

KIT, Winch Hook
(Superseded to 7043276YP)

Note: 70242; incl.hook, pins & strap

$41.99

$

Usually ships in 2-12 days

0

4

Snapper 7043275

WIRE, Black, 6 Ga. 18" long
(Superseded to 7043275YP)

Note: 70243 (winch cable)

$16.99

$

Usually ships in 2-12 days

0

5

Snapper 7043277

WIRE, Red, 6 Ga. 18" long
(Superseded to 7043277YP)

Note: 70244 (winch cable)

$16.99

$

Usually ships in 2-12 days

0

6

Snapper 7043279

WIRE, Yellow, 6 Ga. 71" long
(Superseded to 7043279YP)

Note: 70246 (winch cable)

$26.99

$

Usually ships in 2-12 days

0

7

Snapper 7011274

BOOT, Terminal Winch
(Superseded to 7011274YP)

$2.49

$

Usually ships in 2-12 days

0

8

Snapper 7043280

CONTACTOR, 12V Winch
(Superseded to 7043280YP)

Note: Warner p/n 70251

$330.99

$

Usually ships in 2-12 days

0

9

Snapper 7043281

ASSY., Remote Socket w/Harness
(Superseded to 7043281YP)

Note: Warner p/n 70252

$119.99

$

Usually ships in 2-12 days

0

10

Snapper 7043286

WIRE, Blue, 6 Ga. 71" long
(Superseded to 7043286YP)

Note: 70247 (winch cable)

$26.99

$

Usually ships in 2-12 days

0

11

Snapper 7091923

BOLT, 3/8-16 x 3/4" Sq. Neck Carriage
(Superseded to 7091923SM)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Hd. Cap GR 5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

13

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7091814

SCREW, 1/4-20 x 1-1/4" Hex Hd. Cap
(Superseded to 7091814SM)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7091098

WASHER, .31 x .75 x .08 Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7090052

WASHER, 1/4" Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

17

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7090624

BOLT, #10-24 x 3/4" Hex Flange Lock
(Superseded to 7090624YP)

Note: Not shown

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

Note: Not shown

$4.49

$

In Stock, only 2 left!

0

20

Snapper 7091315

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

Note: Not shown

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7074319

WLDMT., Pwr. Gen. End Cap LH (Green)

$

$

Not available

22

Snapper 7027516

SWITCH, Throttle Interlink
(Superseded to 7027516YP)

Note: Not shown

$41.99

$

Usually ships in 2-12 days

0

23

Snapper 7074326

THROTTLE ANCHOR, Front
(Superseded to 7074326YP)

$17.99

$

Usually ships in 2-12 days

0

24

Snapper 7011259

SWITCH, Momentary Rocker (On-Off-On)
(Superseded to 7011259YP)

$39.99

$

Usually ships in 2-12 days

0

25

Snapper 7078259

WIRING HARNESS, Winch

Note: Not shown

$

$

Currently unavailable

26

Snapper 7078260

WINCH HARNESS, Main
(Superseded to 7078260YP)

Note: part of 7078259

$27.99

$

Usually ships in 2-12 days

0

27

Snapper 7078261

WINCH HARNESS, Dash
(Superseded to 7078261YP)

$10.99

$

Usually ships in 2-12 days

0

28

Snapper 7092134

SCREW, #6-32 Truss Head, Slotted
(Superseded to 7092134YP)

Note: Not shown

$2.99

$

Usually ships in 2-12 days

0

29

Snapper 7092135

NUT, #6-32 Hex Nyloc
(Superseded to 7092135YP)

Note: Not shown

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 7091541

SCREW, 5/16-18x3/4" Hex Washer Self-Tap
(Superseded to 703228)

Note: attaches 7074326

$4.49

$

In Stock, Qty 20+

0

--

Snapper 7100462

INST SHEET, WINCH KIT

Note: Not shown

$

$

Currently unavailable

--

Snapper 7300229

FAIRLEAD BRACKET

Note: Not shown

$

$

Currently unavailable
