7600005 - Snapper Clamshell Grass Catcher for 61" Z-VAC Snapper Z-Vac Clamshell Catcher Group Parts Diagram

Clamshell Grass Catcher for 61" Z-VAC

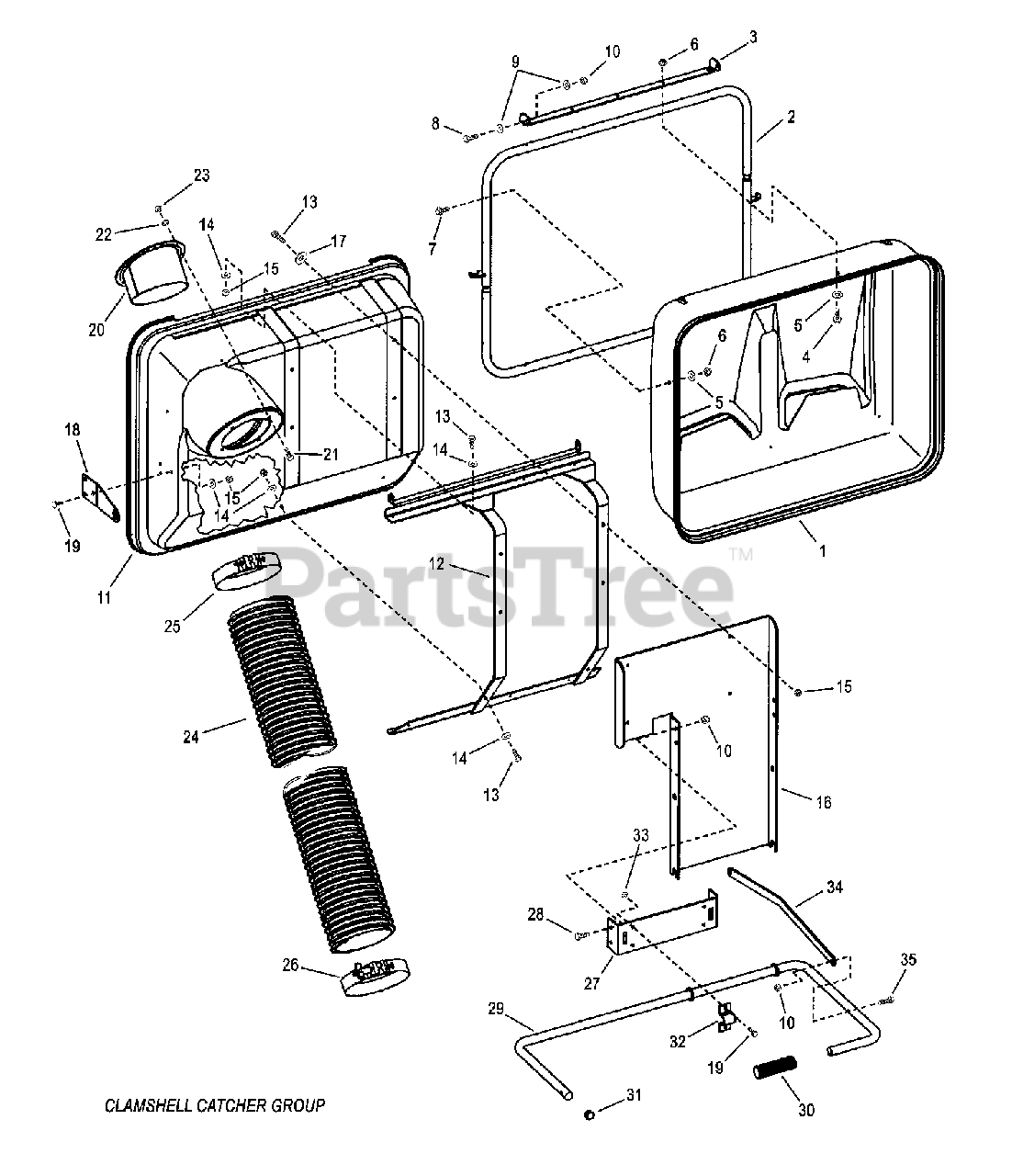

Snapper Z-Vac Clamshell Catcher Group Parts Diagram

  • Title

1

Snapper 7058730

COVER, Rear, Clamshell Bagger

Note: Was 72979

$

$

Not available

Snapper 7073509

SCREEN, Clamshell (Not shown)
(Superseded to 7073509YP)

$233.99

$

Usually ships in 2-12 days

0

Snapper 7073525

RIVET, 5/32" x 1" (Not Shown)

$

$

Not available

2

Snapper 7058600

WELDMENT, Rear Cover Brace
(Superseded to 7058600YP)

$125.99

$

Usually ships in 2-12 days

0

3

Snapper 7073179

HINGE, Rear Cover
(Superseded to 7073179YP)

$28.99

$

Usually ships in 2-12 days

0

4

Snapper 7091265

SCREW, #10-24 x 1-1/2 Hex Washer Machine
(Superseded to 7091265YP)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7036422

WASHER, .190 ID x .75 OD Flat
(Superseded to 7036422SM)

$3.99

$

In Stock, only 2 left!

0

6

Snapper 7091079

NUT, 10-24 Hex Flange Lock
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7073145

BOLT, #10-24 x 1-1/2 Oval Head
(Superseded to 7073145YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, GR5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

9

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7091299

NUT, 3/8-16 Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7073181

COVER, Front, Clamshell Bagger

$

$

Currently unavailable

Snapper 7072874

DEFLECTOR, Clamshell Bagger (Not Shown)
(Superseded to 7072874YP)

$207.99

$

Usually ships in 2-12 days

0

Snapper 7091631

SCREW, #10-24 x 1/2 Hex Head Machine (Not Shown)
(Superseded to 7091631YP)

$2.99

$

Usually ships in 2-12 days

0

Snapper 7036422

WASHER, .190 ID x .75 OD Flat (Not Shown)
(Superseded to 7036422SM)

$3.99

$

In Stock, only 2 left!

0

Snapper 7091079

NUT, 10-24 Hex Flange Lock (Not Shown)
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7043333

BRACE, Front Cover Weldment

$

$

Currently unavailable

13

Snapper 7091527

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

14

Snapper 7091528

WASHER, .375 ID x .875 OD Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7091298

NUT, 5/16-18 Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7011292

MOUNT, Clamshell

$

$

Currently unavailable

17

Snapper 7016314

WASHER, .33 ID x 1.25 OD Flat
(Superseded to 7016314YP)

$5.49

$

Usually ships in 2-12 days

0

18

Snapper 7011296

HANDLE BRACE, Clamshell

$

$

Currently unavailable

19

Snapper 7091303

BOLT, 5/16-18 x 1 Carriage
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

20

Snapper 7043334

TUBE ADAPTER WELDMENT
(Superseded to 7043334YP)

$296.99

$

Usually ships in 2-12 days

0

21

Snapper 7091814

SCREW, 1/4-20 x 1-1/4 Hex Head Cap, GR5
(Superseded to 7091814SM)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7091315

WASHER, 1/4 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 3022833

HOSE, Snapper Fast Vac
(Superseded to 3022833SM)

$318.99

$

In Stock, only 1 left!

0

25

Snapper 3022875

HOSE CLAMP, Upper
(Superseded to 3022875YP)

$42.99

$

Usually ships in 2-12 days

0

26

Snapper 3022876

HOSE CLAMP, Lower
(Superseded to 3022876YP)

$75.99

$

Usually ships in 2-12 days

0

27

Snapper 7011293

BRACKET, Handle Mount

$

$

Currently unavailable

28

Snapper 7027198

BOLT, 3/8-16 x 1 Hex Flange
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

29

Snapper 7043332

HANDLE WELDMENT
(Superseded to 7043332YP)

$205.99

$

Usually ships in 2-12 days

0

30

Snapper 7011870

GRIP
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

31

Snapper 7072951

ENDCAP, Tube
(Superseded to 7072951YP)

$2.49

$

Usually ships in 2-12 days

0

32

Snapper 7043803

BRACKET, Hanger
(Superseded to 7043803YP)

$9.49

$

Usually ships in 2-12 days

0

33

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

34

Snapper 7011295

ARM, Clamshell Actuating

$

$

Not available

35

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, GR5
(Superseded to 7091305SM)

$4.49

$

In Stock, only 1 left!

0
