76-48SX01 - Toro 48" Snow Thrower Attachment (1977) 48" SNOWTHROWER (VEHICLE IDENTIFICATION NUMBER 76-48SX01) Parts Diagram

48" Snow Thrower Attachment

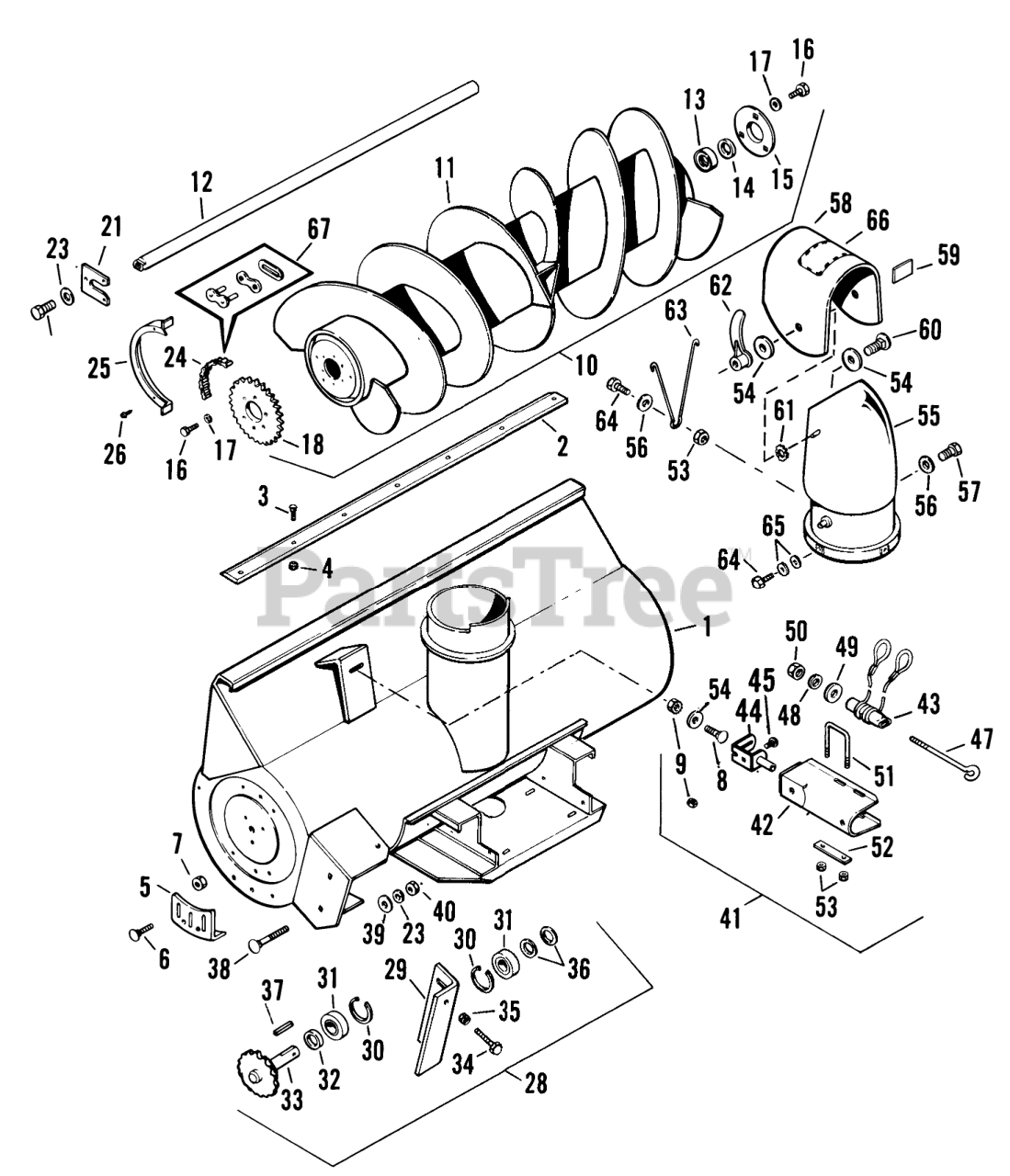

48" SNOWTHROWER (VEHICLE IDENTIFICATION NUMBER 76-48SX01) Parts Diagram

  • Title

1

Kohler 200175

Assembly-Header Housing

$

$

Not available

2

Kohler 200102

Blade-Scraper

$

$

Not available

3

Kohler 200103

BOLT-BLADE TO HEADER

$

$

Not available

4

Toro 915968

Nut 1/4-20
(Superseded to 32149-2)

$2.99

$

In Stock, Qty 20+

0

5

Toro 200104

Shoe-Skid

$

$

Not available

6

Toro 200176

Carriage Bolt 5/16-18 x 3/4

$

$

Currently unavailable

7

Toro 915972

Keps Nut 5/16-18

$

$

Not available

8

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

9

Toro 915974

NUT

$

$

Not available

10

Toro 200105

Auger Assembly

$

$

Not available

11

Toro 200106

Auger

$

$

Not available

12

Kohler 200177

Auger Shaft

$

$

Not available

13

Toro 200178

Bearing

$

$

Not available

14

Toro 200179

Washer
(Superseded to 740891)

$

$

Not available

15

Kohler 200110

Spring

$

$

Not available

16

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 17

0

17

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

18

Kohler 200111

Control Rod-Traction

$

$

Not available

20

Toro 908058

Bolt
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

21

Kohler 200112

PLATE AUGER MOUNTING

$

$

Not available

23

Toro 920085

Lockwasher

$

$

Currently unavailable

24

Toro 200180

Auger Drive Chain #40

$

$

Not available

25

Toro 200114

Chain Guard

$

$

Not available

26

Toro 926585

SCREW

$

$

Not available

28

Toro 200181

Jackshaft Assembly

$

$

Not available

28

Toro 200182

Jackshaft Housing w/Bearings

$

$

Not available

29

Toro 200183

Jackshaft Housing
(Superseded to 200435)

$

$

Not available

30

Kohler 200118

Ring-Snap

$

$

Not available

31

Kohler 200119

BEARING-GEAR BOX

$

$

Not available

32

Kohler 200400

Spacer

$

$

Not available

33

Kohler 200401

Jackshaft and Sprocket

$

$

Not available

34

Toro 200402

Self Tapping Screw 5/16-18 x 1 3/4

$

$

Not available

35

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

36

Kohler 200120

WSHR SPROCKET TO BRG

$

$

Not available

37

Toro 200122

Key

$

$

Not available

38

Toro 900122

Carriage Bolt 1/2-13 x 3 1/2

$

$

Currently unavailable

39

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

40

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

41

Toro 200123

Stack Drive Bracket

$

$

Not available

42

Kohler 200403

SHROUD-STACK DRIVE

$

$

Not available

43

Kohler 200405

Cable Tube and Sleeves

$

$

Not available

Kohler 200126

Tube

$

$

Not available

Kohler 200127

Cable

$

$

Not available

Kohler 200128

Oval Sleeve

$

$

Not available

44

Kohler 200404

Bracket and Tube

$

$

Not available

45

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

46

Toro 915435

Lock Nut 5/16-18

$

$

Currently unavailable

47

Toro 200129

EYE BOLT DRIVE TUBE

$

$

Not available

48

Toro 200130

Spring Washer

$

$

Not available

49

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

50

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

51

Toro 200131

U-BOLT

$

$

Not available

52

Toro 200132

Friction Strap

$

$

Not available

53

Toro 200133

NUT

$

$

Not available

54

Toro 200134

WASHER

$

$

Not available

54

Kohler 200426

Decal
(Superseded to 220376)

$

$

Not available

55

Toro 200135

Assy.-Elbow & Pivot

$

$

Not available

55

Toro 200427

Decal
(Superseded to 742806)

$

$

Not available

56

Toro 200136

Washer

$

$

Not available

56

Kohler 200428

Decal

$

$

Not available

57

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

58

Toro 200137

Deflector Elbow

$

$

Not available

59

Kohler 200138

MOLDING DEFLECTOR

$

$

Not available

60

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 14

0

61

Kohler 200406

Washer 5/16 (Special Locking)
(Superseded to 221106)

$

$

Not available

62

Kohler 200139

STRAP-LOCKING
(Superseded to A-200139)

$

$

Not available

63

Kohler 200140

Spring Hook

$

$

Not available

64

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

65

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

66

Kohler 200141

Caution Decal

$

$

Not available

67

Toro 200173

Chain Repair Kit
(Superseded to 2710-11)

$6.49

$

In Stock, only 1 left!

0
